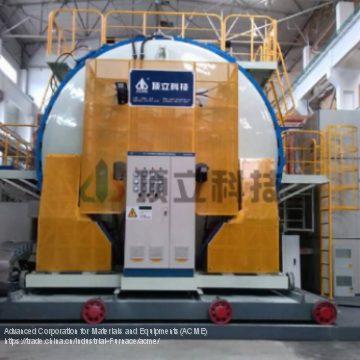

Horizontal Vacuum Graphitization Furnace

Product Description______________________________________________

Description
Horizontal vacuum graphitization furnace is applied for high temperature graphitization and purify treatment of C/C, graphite, carbon fiber insulation refractory material, graphite products.

Technical Features
1. The furnace working zone size can be reach 2.5m×2.5m×5m, which can satisfy super size part CVD treatment.
2. Unique ACME super high temperature and high current feeding technology achieves the equipment can be long term stable used at 2600°C.
3. The horizontal graphitization tube furnace adopts multiple temperature control zones to achieve great temperature uniformity.
4. External circulation fast system as an option features short batch cycle and high efficiency.

Optional Configuration of Horizontal Vacuum Graphitization Furnace
1. Furnace door: Hinge turning type/ trolley type, Manual tight/Auto lock-ring tight
2. Furnace vessel: All carbon steel/Inner layer stainless steel/Total stainless steel
3. Furnace hot zone: Soft carbon felt/Soft graphite felt/Hard composite felt /CFC
4. Heating element and muffle: Isostatic press graphite/Press high purity, high strength and high density graphite/ fine size graphite
5. Process gas system: Volume/Mass flow-meter, Manual valve/Auto valve, Foreign brand/Chinese brand
6. Vacuum pump and gauge: Foreign brand/Chinese brand
7. HMI: Simulation screen/Touch screen/Industrial personal computer
8. PLC: OMRON/Siemens
9. Temperature controller: SHIMADEN/EUROTHERM
10. Thermocouple: C type, S type, K type, N type
11. Recorder: Paperless recorder/paper recorder, Foreign brand/Chinese brand
12. Electric components: CHINT/Schneider/Siemens
13. Load truck: roller type /Fork type/Folded long distance driving type

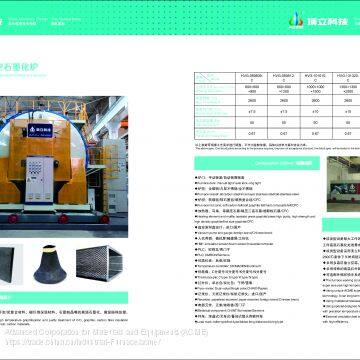

Specifications of Horizontal Vacuum Graphitization Furnace

Company information______________________________________________

Founding in 2006, ACME (Advanced Corporation for Materials & Equipments) is a high-tech enterprise specialized in manufacture of industry heating equipment for new material and energy.  With an area of 100,000 m2 ,our annual production is over 200 sets.

Customer Experience Center_______________________________________

ACME has a Customer Experience Center for customer to choose the suitable equipment and ensure the equipment performance meets the demand of production process requires. It helps ACME to acuumlate a wealth of experimental experience and greatly improving equipment relability and practicality.

Customers visiting ACME__________________________________________

ACME  has NO.1 maket share on special heating equipment ,sells to USA, Europe, Russia, Japan, Canada, New Zealand, Middle East, South America, Africa, South Asia and etc.areas and countries.

ACME in exhibitions__________________________________________

Why ACME?______________________________________________________

1.We are the manufacturer not a trade company! Warmly welcome to visit us in Changsha, China!

2.Our equipments are customized! Tell us your requirments and we can meet your needs !

3.ACME had gained Quality ,Environment and Occupation Health certificates of ISO 9001, ISO 14001 and ISO 18000.

/
