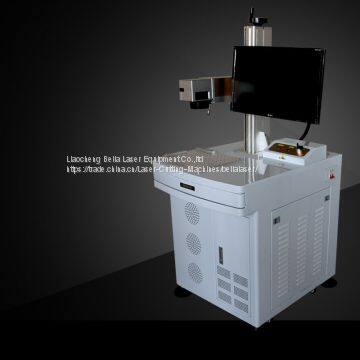

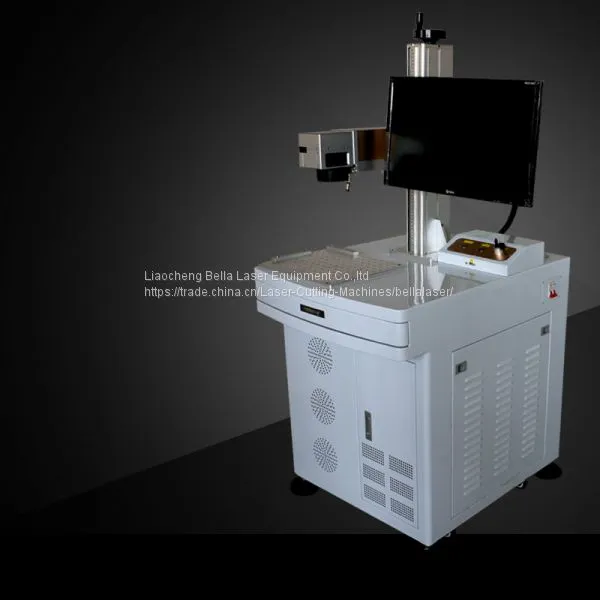

Help Center10W 20W 30W 50W Fiber Laser Metal/ring/jewellery/diamond Marking Machine
Related Products
-
800W Mini CNC Router Woodworking MachineryUS$ 1250 - 1550MOQ: 1 Set -
40W Co2 K40 Mini/desktop Laser Engraving/cutting MachineUS$ 450 - 600MOQ: 1 Set
-
300*500mm 50W Ebay Laser Engraving/cutting MachineUS$ 1500 - 1800MOQ: 1 Set
-
600*900mm 80W Wood/acrylic/leather/paper/cloth/rubber Laser Engraving/cutting MachineUS$ 2500 - 2800MOQ: 1 Set
-
UV Laser Marking Machine Green Laser Marking MachineUS$ 1500 - 20000MOQ: 1 Combo
Features | ||
Open worktable, easy to load the material and can work with customized automatic matching system. | ||
Application Materials | ||
laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon. | ||
Applicable Industries | ||
Mechanical Parts: | Bearings, Gears, Standard Parts, Motor, etc. | |
Instrument: | Panel Board, Nameplates, Precision equipment, etc. | |
Daily Necessities: | Handicrafts, Zipper, Key Holder, Sanitary Ware, etc. | |
Hardware Tools: | Knives, Tools, Measuring Tools, Cutting Tools, etc. | |
Automobile Parts: | Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc. | |
Electronic Components: | Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc. | |
Advantages | ||
1) Long lifespan fiber laser source: 100 000hours | ||
2) Good scan head, with good seal, small volume, compact. | ||
3) Good Scaps controller, USB interface, swift and stable transmission. | ||
4) Low consumption: <400W, more economized and environmental. | ||
5) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT, etc.. | ||
6) High Precision: Upto 0.0012mm, bring you the fantastic and satisfied marking effect. | ||
7) Superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products. | ||
8) No Consumables: One Fiber marker can work for more than 10 years without any consumables. | ||
9) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products. | ||
10) The fiber laser beam no need to adjust the laser optical path. | ||
11) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser. | ||
12) Deeper Marking: Max. 1.2mm stainless steel, suitable for the industries which need high precision and depth marking effect. | ||
Technical Parameters | ||
Type | 10B | 20B |
Power | 10W | 20W |
Laser Wavelength | 1064nm | |
Marking Area | 100mm*100mm | |
Optional Marking Area | 50mm*50mm / 100mm*100mm / 200mm*200mm | |
Marking Depth | ≤0.1mm | |
Marking Speed | 800 standard characters/second | |
Minimum Line Width | 0.012mm | |
Minimum Character | 0.15mm | |
Repeated Precision | ±0.003mm | |
Life-span of Fiber Laser Module | 100 000hours | |
Beam Quality | M2 <1.5 | |
Focus Spot Diameter | <0.01mm | |
Output Power of Laser | 10%~100% continuously to be adjusted | |
System Operation Environment | Win XP, WIn7--32bits | |
Cooling Mode | Air cooling--Built-in | |
Temperature of Operation Environment | 15℃~35℃ | |
Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase | |
Power Requirement | <400W | |
Communication Interface | USB | |
Package dimension/weight | 110*80*95cm/120kgs | |
Optional (Not free of charge) | Rotary Device, Moving Table, other customized Automatation | |
