Specifications
China Wuhan CO2 Laser Marking Machine Price1)7000mm/s
2)Coherent, Synrad
3)10W,30W,50W,100W

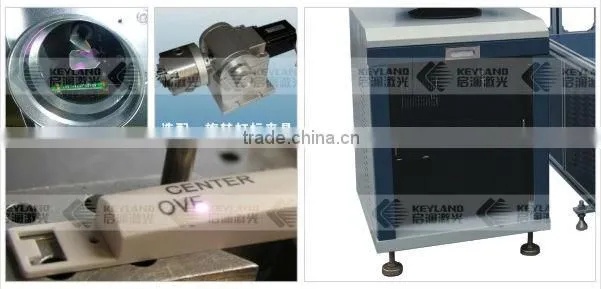

4)Rotary,up-down optional

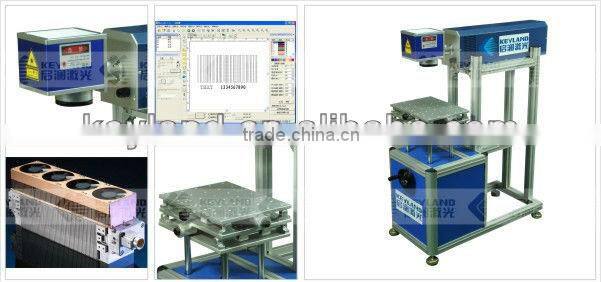

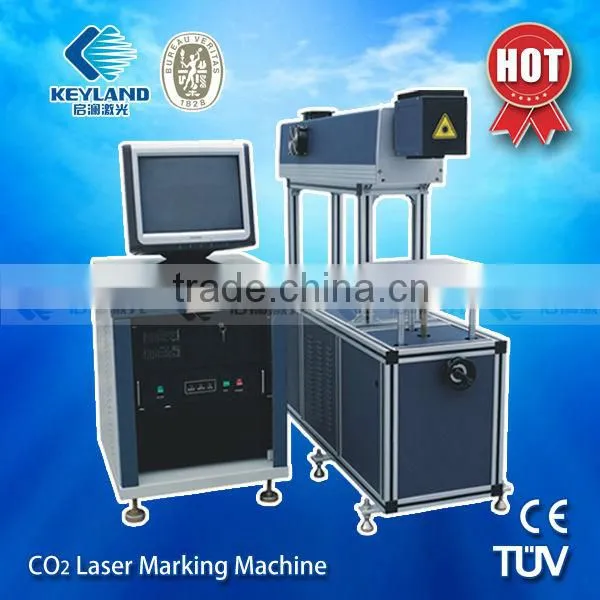

50W 100W RF Metal Tube CO2 Laser Marking Machine for Sale
I,Principal of CO2 laser marker:
RF CO2 laser marking machine with USA imported core optical components, just like CO2 RF laser, high-speed scanning galvanometer. So this kind of laser marking machine is steady and high speed working a long time a day.
RF CO2 laser is a gas laser unit; it is laser wavelength is 10.64μm, belonging to the infrared frequency brand, with big power and high Electro-optical conversion rate.
RF CO2 laser is use co2 gas as a material, and the put it in a discharge tube with other assist gas. When the voltage of electrode is growing higher and higher, the discharge tube creates the light, then laser was aroused by Mix-gas molecules. Laser is deflected by scanning galvanometer and then processing product with the pattern you want!
Software of laser marking machine is working on windows system, English interface!
AUTOCAD, CORELDRAW, PHOTOSHOP are compatible, file formats is PLT, PCW, DXF, BMP would be ok! But also can directly use SHX, TTF font. You can design anything you want by computer, simple operation; power is controlled by software, continuously adjustable.
II,Brief introduction:
Automatic infrared sensor marking machine adopts imported laser,adopts imported RF metal tube, with high-speed galvanometer, Windows XP operating system, perform with Coreldraw ,Photoshop,Autocad and other graphics processing software. Powerful functions and easy operations.
III,Features:
1, High laser output power,continiously adjustable,control carving depth at random,markings is clear and resistant to wear,and high cutting efficiency.
2. This system is working at low cost, mainly used in electronic components, shell chrome card, food and beverage packaging, medical packaging, PVC and other industries of marking, engraving.
3.Advanced marking software system can be used directly in SHX, TTF fonts, coding, marking serial number, batch number, date, identification bar code, two-dimensional code, automatically jump numbers,and so on.
4. USA made RF CO2 laser, with high precision, high speed, clearly, steady marking ability. It is suitable for marking various Non-metal materials.
5, engraving depth is controllable.
6.Without consumable parts, low processing costs. Life span of RF-laser up to 20000-30000 hours.
IV, Applicable Industries:
- Electronic components
- integrated circuits (IC)
- electrical appliances
- model making
- food packaging
- mobile communications
- hardware & accessories
- eyeglasses and clocks
- auto parts
- PVC pipe& building materials
- medical equipment, pharmaceutical packaging
- gift, advertising signs,
- garment, fashion,
- furniture,etc.
V, Applicable materials:
Bamboo, wood, acrylic, plastic, leather, jeans, paper, button, glass, ABS, exoxy resin, electronic components, transistor, IC regulator, eyeglasses, sanitary ware, and other non-metallic materials.
VI,The Main Technical Parameters:
MODEL | GMC-50/GMC-100 | |
LASER WAVE LENGTH | 10640nm | |
Laser power | 50W/100W | |
Marking scope | 70x70mm,100x100mm,200x200mm, 300*300mm | |
Marking speed | 7000mm/s | |
Marking depth | 0.05-0.2mm(according to the material) | |
Repeat orientation accuracy | ±0.0025mm | |
Cooling method | Unified rotative homothermal water cooling | |

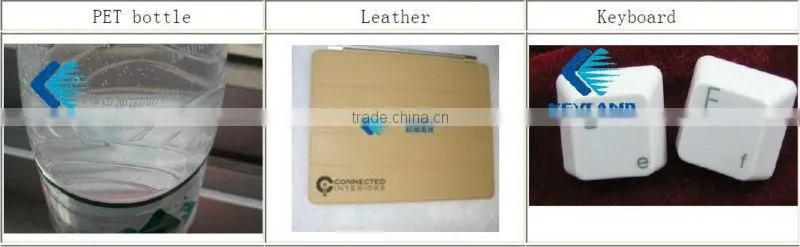

VII,Laser Marking Samples:
