Custom Factory Processing Precision Three Layer Plastic Molding

Custom Factory Processing Precision Three Layer Plastic Molding thumbnail-1
Custom Factory Processing Precision Three Layer Plastic Molding thumbnail-2
Custom Factory Processing Precision Three Layer Plastic Molding thumbnail-3
Custom Factory Processing Precision Three Layer Plastic Molding thumbnail-4
Custom Factory Processing Precision Three Layer Plastic Molding thumbnail-5
Custom Factory Processing Precision Three Layer Plastic Molding thumbnail-6
Custom Factory Processing Precision Three Layer Plastic Molding photo-1
Custom Factory Processing Precision Three Layer Plastic Molding photo-2
Custom Factory Processing Precision Three Layer Plastic Molding photo-3
Custom Factory Processing Precision Three Layer Plastic Molding photo-4
Custom Factory Processing Precision Three Layer Plastic Molding photo-5
Custom Factory Processing Precision Three Layer Plastic Molding photo-6
US$ 7,000 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Customized
Model Number:
Customized
Contact Supplier Request Quote Chat Now
Qingdao Juxing Machinery & Mould Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Customized
Model Number Customized
Shaping Mode Plastic Extrusion Mould
Product Material Steel
Product Other, Custom Factory Processing Precision Three layer Plastic Molding
Product Description

Custom Factory Processing Precision Three layer Plastic Molding

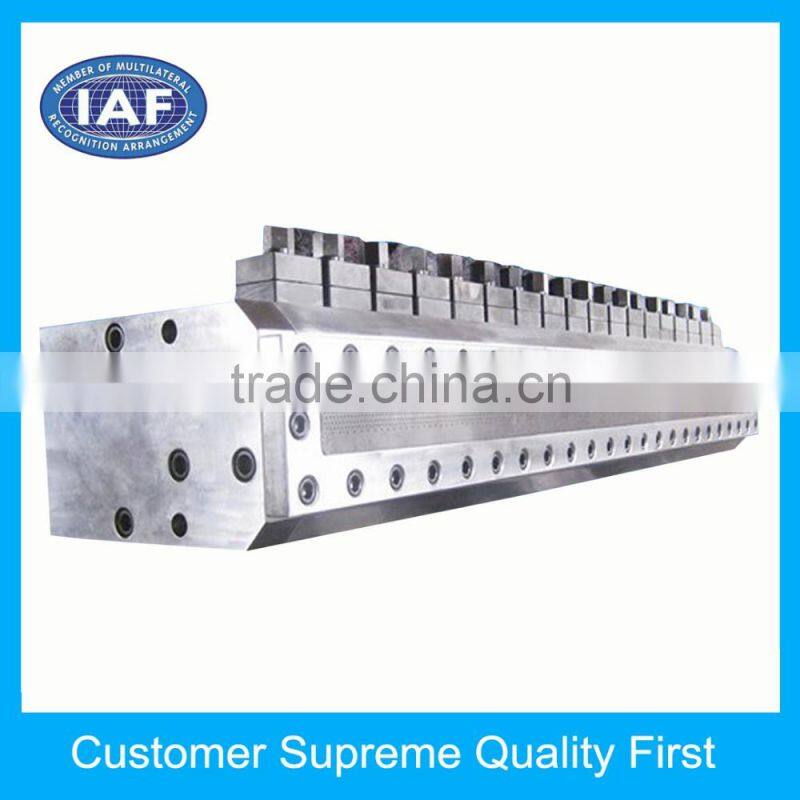

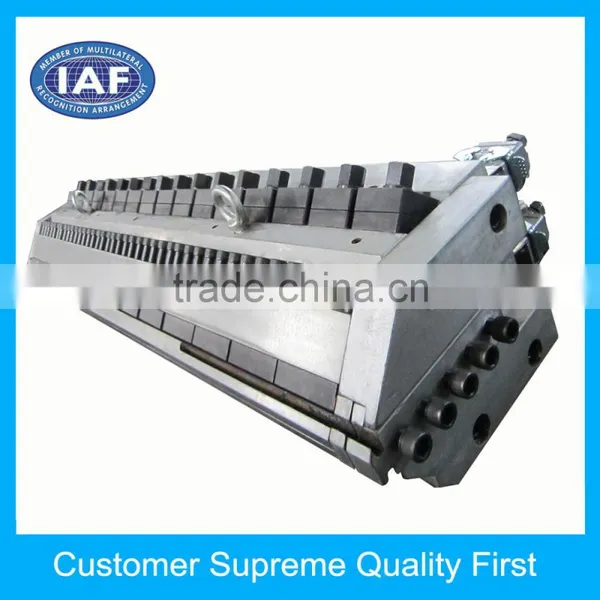

1. Hangers-style structure.
2. Both sides are equipped with top mould and pull fine adjustment screw bending mould lip to adjust the mould mouth clearance.
3. All sides of the mould plated chromium and used high-strength bolts with 12.9 grades.
4. The heater make of nice stainless can be control heating.
5. Steady production, the structure is simple, easy to remove, cleaning.

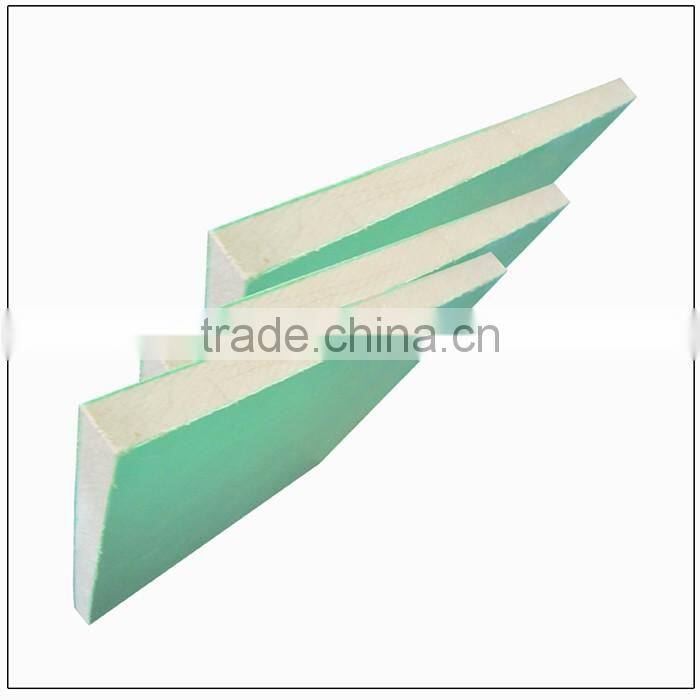

6. Production 0.2-2 mm thick sheet products.
7. Suitable for: PP,PE,PS,PET.
8. Mould width: 1000 mm.

Item
Detailed Introduction
Product Name
Custom Factory Processing Precision Three layer Plastic Molding
Mould Material
45#, 40Cr, P20 or as customer's requirement.
Mould Width
1000 mm
Production Thickness
0.2-2 mm
Use
PP,PE,PS,PET
Mould Limiter
Left and right side respective limit 200mm
Surface Treament
Mirror polishing, Electroplating
Bolts
High-strength 12.9 grades
Heat Control
Heater
Heater Zone
8 zones
Total Heating Power
21.6KW
Volitage
220V
Mould Feature
Reasonable structure design, good surface treatment, long mould life, shorter deliver time, the best price.
Process Equipment
CNC, EDM, Drill, Wire Cutting, etc
Software
AutoCAD, UG, Pro/E, Cimatron...
Provides Service
Provides detailed product introduction and overall quotation service.
Design Team
We have a professional design team. Provides design plans as clients' request.
Professional Factory
We are factory, specializing in manufacturing plastic extrusion mould.
Flow-process Diagram
No.
Flow-process Diagram
1
Sample/Drawing
We need your detail require clearly.
2
Negotiation
Material, cavity, price, delivery time, payment term ,etc.
3
Place order
According your own design or choose our design.
4
Mould design
Provide photos for customer show them tooling process.
5
Mold testing
Mold testing.
6
Mould process
Provide photos for customer show them tooling process.
7
Sample confirm
Send the samples to our client's confirmation. If not satisfied by customer, modify mold.
8
Delivery mould
Qualified samples after, arrange the shipment.
Our Customer
Exhibition
Packing & Delivery

The normal package is wooden box.

If export to european countries,the wooden box will be fumigated.

If container is too tigher,we will use pe film for packing or pack it according to customers special request.
