Radial Spherical Plain Bearing/rod End Bearing
US$ 0.5 - 2
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
Neutral
Bore Size:
12, 60
Model Number:
GE110XS/K
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Joint Bearing, Joint Bearing, Knuckle BearingUS$ 0.5 - 2MOQ: 500 Pieces -
(NA 49 Series) Needle Roller BearingUS$ 0.1 - 3MOQ: 1000 Pieces
-
WB1630080D Auto Pump Bearings/water Pump BearingUS$ 1 - 2MOQ: 1000 Pieces
-
UCFL206 Pillow BlockUS$ 2 - 8MOQ: 200 Pieces
-
UCP205 Pillow Block/inserted BearingUS$ 2 - 8MOQ: 500 Pieces
Brand Name
Neutral
Bore Size
12, 60
Model Number
GE110XS/K
Place of Origin
Zhejiang, China
Precision Rating
P0
rod end bearing:
rod end bearing Type: GE..XS/K;GEK..XS 2RS series
♥ BEARING USAGE FIELD
used in transmission, instrumentation, electrical, household appliances, internal combustion engines, transport vehicles, agricultural machinery, construction machinery, engineering machinery, roller skate style, yo-yo, etc.
♥BEARING MATERIAL
100% chrome steel
♥BEARING PRECISION
GB | 0 | 6 | 5 | 4 |
ISO | 0 | 6 | 5 | 4 |
DIN | P0 | P6 | P5 | P4 |
JIS | 0 | 6 | 5 | 4 |
ANSI | ABEC-1 | ABEC-3 | ABEC-5 | ABEC-7 |
♥DETAILED DIMENSIONS:
| Item No. | Dimension (mm) | Load (KN) | Weight (kg) | ||||||||
| d | D | B | C | d1 | R1s | R2s | α | Dynamic | Static | ||
| min | min | ≈ | C | C0 | |||||||
| GE12XS/K | 12 | 22 | 11 | 9 | 14 | 0.5 | 0.5 | 7 | 13 | 68 | 0.019 |
| GE15XS/K | 15 | 26 | 13 | 11 | 17.5 | 0.5 | 0.5 | 6 | 20 | 102 | 0.028 |
| GE20XS/K | 20 | 32 | 16 | 14 | 23 | 0.5 | 0.5 | 4 | 33 | 106 | 0.053 |
| GE22XS/K | 22 | 37 | 19 | 16 | 25.5 | 0.5 | 0.5 | 6 | 43 | 217 | 0.085 |
| GE25XS/K | 25 | 42 | 21 | 18 | 29 | 0.5 | 0.5 | 5 | 55 | 275 | 0.116 |
| GE30XS/K | 30 | 50 | 27 | 23 | 36 | 1 | 1 | 6 | 87 | 439 | 0.225 |
| GE35XS/K | 35 | 55 | 30 | 26 | 40 | 1 | 1 | 5 | 110 | 552 | 0.302 |
| GE40XS/K | 40 | 62 | 33 | 28 | 44 | 1 | 1 | 6 | 130 | 654 | 0.375 |
| GE45XS/K | 45 | 72 | 36 | 31 | 50.5 | 1 | 1 | 5 | 163 | 816 | 0.598 |
| GE50XS/K | 50 | 80 | 42 | 36 | 58.5 | 1 | 1 | 5 | 220 | 1100 | 0.869 |
| GE55XS/K | 55 | 90 | 47 | 40 | 64.5 | 1 | 1 | 6 | 272 | 1360 | 1.26 |
| GE60XS/K | 60 | 100 | 53 | 45 | 72.5 | 1 | 1 | 6 | 344 | 1720 | 1.72 |
| GE65XS/K | 65 | 105 | 55 | 47 | 76 | 1 | 1 | 5 | 375 | 1870 | 2.05 |
| GE70XS/K | 70 | 110 | 58 | 50 | 81.5 | 1 | 1 | 5 | 425 | 2125 | 2.23 |
| GE75XS/K | 75 | 120 | 64 | 55 | 89.5 | 1 | 1 | 5 | 510 | 2750 | 3.01 |
| GE80XS/K | 80 | 130 | 70 | 60 | 97.5 | 1 | 1 | 5 | 610 | 3060 | 3.98 |
| GE85XS/K | 85 | 135 | 74 | 63 | 100.5 | 1 | 1 | 6 | 669 | 3340 | 4.31 |
| GE90XS/K | 90 | 140 | 76 | 65 | 105.5 | 1 | 1 | 5 | 718 | 3590 | 4.72 |
| GE95XS/K | 95 | 150 | 82 | 70 | 113.5 | 1 | 1 | 5 | 833 | 4165 | 6.05 |
| GE100XS/K | 100 | 160 | 88 | 75 | 121.5 | 1.5 | 1.5 | 5 | 956 | 4780 | 7.43 |
| GE110XS/K | 110 | 170 | 93 | 80 | 130 | 1.5 | 1.5 | 5 | 1080 | 5440 | 8.54 |
| GE115XS/K | 115 | 180 | 98 | 85 | 132.5 | 1.5 | 1.5 | 5 | 1190 | 5960 | 10.3 |
| GE120XS/K | 120 | 190 | 105 | 90 | 140 | 1.5 | 1.5 | 6 | 1330 | 6690 | 12.4 |
| GE130XS/K | 130 | 200 | 110 | 95 | 148.5 | 1.5 | 1.5 | 5 | 1490 | 7460 | 13.8 |
| GE150XS/K | 150 | 220 | 120 | 105 | 166 | 1.5 | 1.5 | 5 | 1820 | 9140 | 17.1 |
| GEK25XS2RS | 25 | 68 | 40 | 28 | 30 | 0.6 | 1 | 19 | 117 | 590 | 0.516 |
| GEK30XS2RS | 30 | 70 | 47 | 32 | 37.3 | 0.6 | 1 | 19 | 163 | 813 | 0.785 |
| GEK35XS2RS | 35 | 80 | 54 | 38 | 44.5 | 0.6 | 1 | 17 | 226 | 1130 | 1.23 |
| GEK40XS2RS | 40 | 90 | 64 | 44 | 48 | 0.6 | 1 | 19 | 298 | 1490 | 1.83 |
| GEK45XS2RS | 45 | 100 | 72 | 52 | 54 | 0.6 | 1 | 17 | 398 | 1990 | 2.56 |
| GEK50XS2RS | 50 | 110 | 80 | 58 | 60 | 1 | 1 | 17 | 493 | 2450 | 3.43 |
| GEK55XS2RS | 55 | 125 | 90 | 64 | 63.2 | 1 | 1 | 19 | 598 | 2990 | 5.03 |
| GEK60XS2RS | 60 | 135 | 98 | 72 | 69.3 | 1 | 1 | 17 | 732 | 3660 | 6.43 |
Delivert time: Normally ready goods and stock within 7 days
Payment Term: 30% T/T In Advance, 70% T/T Against Copy Of B/L
Package carton+pallet
If you have any question about bearings, pls contact us directly.

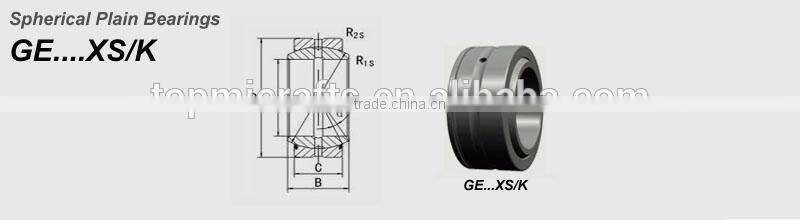

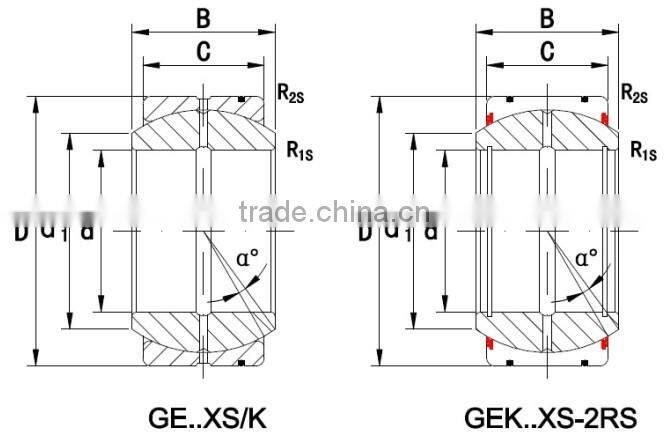

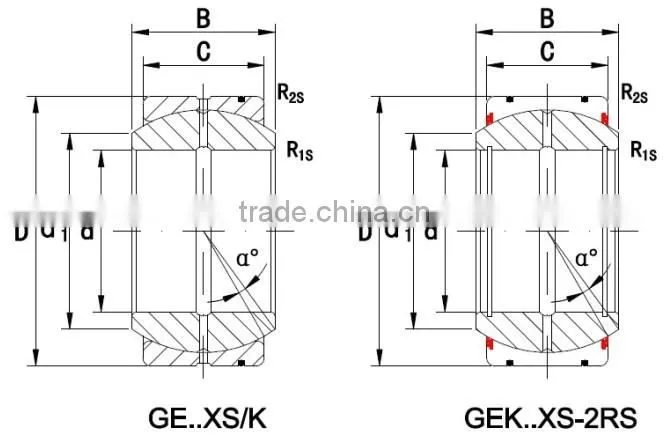

The picture of GE..XS/K; GEK..XS 2RS series
