Inserted Radial Spherical Plain Bearing GEBK10S PB10

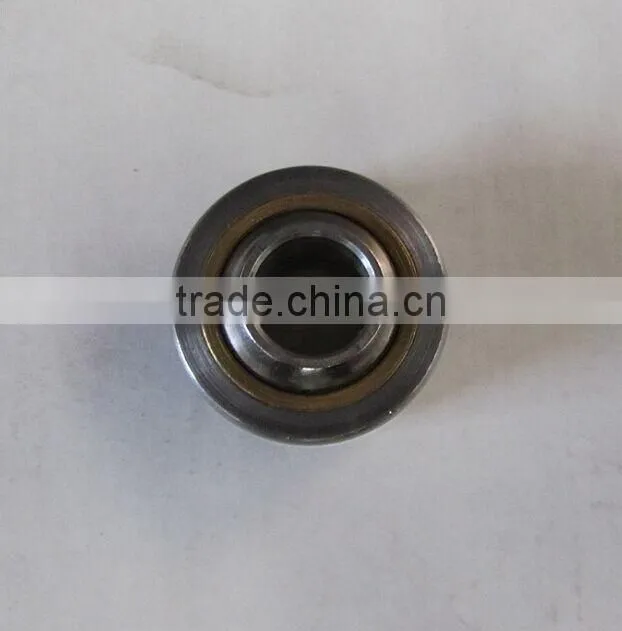

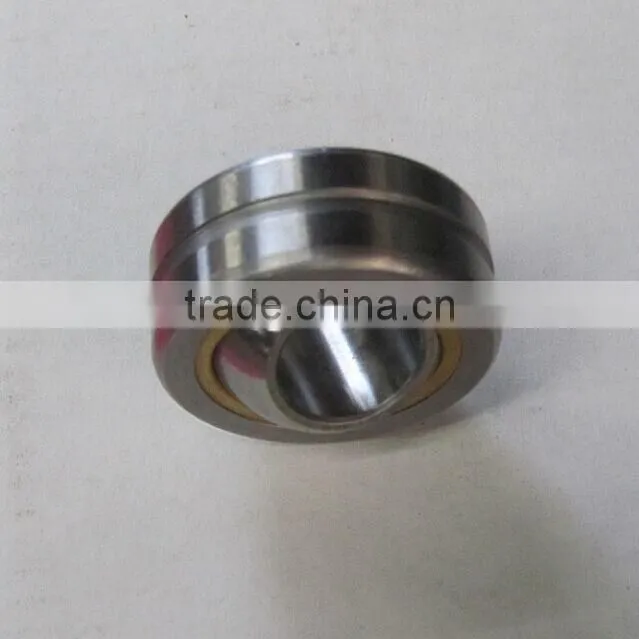

Inserted radial spherical plain bearing GEBK10S PB10
Radial spherical plain bearings have an inner ring with a sphered convex outside
diameter and an outer ring with a correspondingly sphered but concave inside surface.
Their design makes them particularly suitable for bearing arrangements where alignment
movements between shaft and housing have to be accommodated, or where oscillating or
recurrent tilting or slewing movements must be possible at relatively slow sliding speeds.
Data sheet:
| Dimenisions | Load ratings | Weight | |||||||||
| Bearing | ≈Kg | ||||||||||
| number | d | D | B | C | dk | rs | rls | α | |||
| min | min | ≈ | Dynamic | Static | |||||||
| GEBK10S | 10 | 26 | 14 | 11 | 19 | 0.3 | 0.6 | 14 | 10 | 23 | 0.039 |
| GEBK12S | 12 | 30 | 16 | 12 | 22 | 0.3 | 0.6 | 13 | 13 | 31 | 0.058 |
| GEBK14S | 14 | 34 | 19 | 14 | 25 | 0.3 | 0.6 | 16 | 17 | 40 | 0.084 |
| GEBK16S | 16 | 38 | 21 | 15 | 29 | 0.3 | 0.6 | 15 | 21 | 50 | 0.111 |
| GEBK18S | 18 | 42 | 23 | 17 | 32 | 0.3 | 0.6 | 15 | 26 | 61 | 0.16 |
| GEBK20S | 20 | 46 | 25 | 18 | 35 | 0.3 | 0.6 | 15 | 31 | 73 | 0.21 |
| GEBK22S | 22 | 50 | 28 | 20 | 38 | 0.3 | 0.6 | 15 | 38 | 88 | 0.26 |
| GEBK25S | 25 | 56 | 31 | 22 | 43 | 0.6 | 0.6 | 15 | 47 | 110 | 0.39 |
| GEBK28S | 28 | 62 | 35 | 25 | 48 | 0.6 | 0.6 | 15 | 59 | 138 | 0.53 |
| GEBK30S | 30 | 66 | 37 | 25 | 51 | 0.6 | 0.6 | 17 | 63 | 148 | 0.61 |
| GEBK5S | 5 | 16 | 8 | 6 | 11 | 0.3 | 0.3 | 13 | 3.3 | 7.8 | 0.009 |
| GEBK6S | 6 | 18 | 9 | 6.8 | 13 | 0.3 | 0.3 | 13 | 4.3 | 9.8 | 0.013 |
| GEBK8S | 8 | 22 | 12 | 9 | 16 | 0.3 | 0.3 | 14 | 6.8 | 16 | 0.024 |
If you are interestes,feel free to contact with us!
Skype:xieyuyun103
Whatsapp:008613667367982
Tel:+86 13667367982
Send Inquiry to This Supplier
