Home > Industrial Equipment & Components > Bearing > Pillow Block Bearing > UCP205 Pillow Block/inserted Bearing

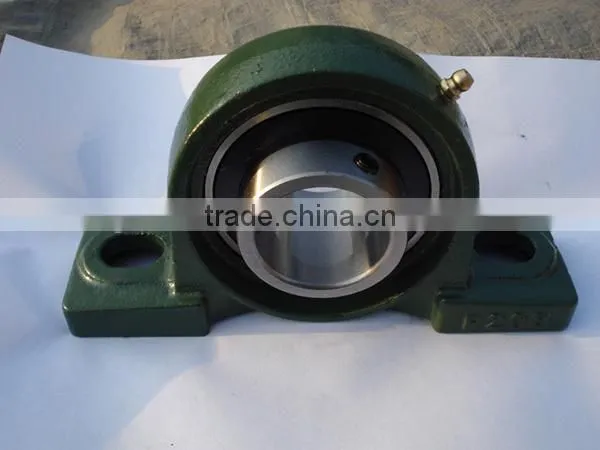

UCP205 Pillow Block/inserted Bearing
US$ 2 - 8
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Bore Size:
1, 3
Brand Name:
Neutral
Model Number:
UCP205
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NU1036 Single Row Cylindrical Roller BearingUS$ 2 - 10MOQ: 500 Pieces -
2205 Self Aligning Ball Bearing/spherical Ball BearingUS$ 0.5 - 8MOQ: 500 Pieces
-
7005 Angular Contact Ball BearingUS$ 1 - 5MOQ: 1000 Pieces
-
6200 Series Deep Groove Ball Bearing/ball Bearing/ball Bearing PriceUS$ 0.5 - 5MOQ: 1000 Pieces
-
6700 Series Ball Bearing/deep Groove Ball BearingUS$ 0.5 - 3MOQ: 1000 Pieces
Bore Size
1, 3
Brand Name
Neutral
Model Number
UCP205
Place of Origin
Zhejiang, China
pillow block:
UCP200 series pillow block
♥ BEARING USAGE FIELD
used in transmission, instrumentation, electrical, household appliances, internal combustion engines, transport vehicles, agricultural machinery, construction machinery, engineering machinery, roller skate style and so on.
♥BEARING MATERIAL
100% chrome steel.
♥BEARING TYPE NUMBER
AS FOLLOWING:

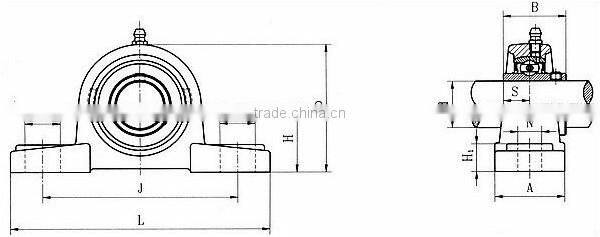

| Unit No. | Shaft Dia. | Dimensions(mm) | Bolt | Bearing | Housing No. | Mass | Available | |||||||||||
| d | H | L | J | A | N | N1 | H1 | H0 | S | B | Size | No. | (kg) | N | N1 | |||
| (in.) | (mm) | |||||||||||||||||
| UCP202 | 15 | 30.2 | 125 | 96 | 32 | 12 | 16 | 13 | 57 | 11.5 | 27.4 | M10 | UC202 | P203 | 0.6 | -- | -- | |
| 202-10 | 5/8 | 202-10 | ||||||||||||||||
| 203 | 17 | 203 | ||||||||||||||||
| 203-11 | 11/16 | 203-11 | ||||||||||||||||
| UCP204-12 | 3/4 | 20 | 33.3 | 127 | 96 | 37 | 13 | 16 | 14 | 63.8 | 12.7 | 31 | M10 | UC204-12 | P204 | 0.65 | 13 | 19 |
| 204 | 204 | |||||||||||||||||
| UCP205-14 | 7/8 | 36.5 | 140 | 105 | 38 | 13 | 19 | 15 | 69.5 | 14.3 | 34 | M10 | UC205-14 | P205 | 0.72 | -- | -- | |
| 205-15 | 15/16 | 205-15 | ||||||||||||||||
| 205 | 25 | 205 | ||||||||||||||||
| 205-16 | 1 | 205-16 | ||||||||||||||||
| UCP206-18 | 1 1/8 | 42.9 | 160 | 121 | 44 | 14 | 19 | 16 | 82 | 15.9 | 38.1 | M12 | UC206-18 | P206 | 1.15 | 17 | 21 | |
| 206 | 30 | 206 | ||||||||||||||||
| 206-19 | 1 3/16 | 206-19 | ||||||||||||||||
| 206-20 | 1 1/4 | 206-20 | ||||||||||||||||
| UCP207-20 | 1 1/4 | 47.6 | 167 | 126 | 48 | 15 | 19 | 17 | 92 | 17.5 | 42.9 | M12 | UC207-20 | P207 | 1.53 | 17 | 21 | |
| 207-21 | 1 5/16 | 207-21 | ||||||||||||||||
| 207-22 | 1 3/8 | 207-22 | ||||||||||||||||
| 207 | 35 | 207 | ||||||||||||||||
| 207-23 | 1 7/16 | 207-23 | ||||||||||||||||
| UCP208-24 | 1 1/2 | 49.2 | 180 | 136 | 52 | 15 | 21 | 18 | 98 | 19 | 49.2 | M12 | UC208-24 | P208 | 1.88 | 17 | 23 | |
| 208-25 | 1 9/16 | 208-25 | ||||||||||||||||
| 208 | 40 | 208 | ||||||||||||||||
| UCP209-26 | 1 5/8 | 54 | 189 | 146 | 54 | 15 | 21 | 20 | 105.5 | 19 | 49.2 | M12 | UC209-26 | P209 | 2.1 | 17 | 23 | |
| 209-27 | 1 11/16 | 209-27 | ||||||||||||||||
| 209-28 | 1 3/4 | 209-28 | ||||||||||||||||
| 209 | 45 | 209 | ||||||||||||||||
| UCP210-30 | 1 7/8 | 57.2 | 204 | 159 | 57 | 19 | 22 | 21 | 112.2 | 19 | 51.6 | M16 | UC210-30 | P210 | 2.5 | -- | -- | |
| 210-31 | 1 15/16 | 210-31 | ||||||||||||||||
| 210 | 50 | 210 | ||||||||||||||||
| UCP211-32 | 2 | 63.5 | 217 | 172 | 604 | 19 | 22 | 22 | 124.5 | 22.2 | 55.6 | M16 | UC211-32 | P211 | 3.3 | -- | -- | |
| 211-34 | 2 1/8 | 55 | 211-34 | |||||||||||||||
| 211 | 211 | |||||||||||||||||
| 211-35 | 2 3/16 | 211-35 | ||||||||||||||||
| UCP212-36 | 2 1/4 | 69.9 | 238 | 186 | 66 | 19 | 25 | 24 | 137 | 25.4 | 65.1 | M16 | UC212-36 | P212 | 5.5 | -- | -- | |
| 212 | 60 | 212 | ||||||||||||||||
| 212-38 | 2 3/8 | 212-38 | ||||||||||||||||
| 212-39 | 2 7/16 | 212-39 | ||||||||||||||||
| UCP213-40 | 2 1/2 | 76.2 | 262 | 203 | 70 | 23 | 29 | 26 | 149 | 25.4 | 65.1 | M20 | UC213-40 | P213 | 5.6 | 25 | 29 | |
| 213 | 65 | 213 | ||||||||||||||||
| UCP214-44 | 2 3/4 | 79.4 | 266 | 210 | 72 | 23 | 29 | 27 | 155 | 30.2 | 74.6 | M20 | UC214-44 | P214 | 6.6 | 25 | 29 | |
| 214 | 70 | 214 | ||||||||||||||||
| UCP215 | 75 | 82.6 | 274 | 217 | 74 | 25 | 29 | 28 | 161.6 | 33.3 | 77.8 | M20 | UC215 | P215 | 7.3 | -- | -- | |
| 215-48 | 3 | 215-48 | ||||||||||||||||
| UCP216 | 80 | 88.9 | 292 | 232 | 78 | 25 | 30 | 30 | 174 | 33.3 | 82.6 | M20 | UC216 | P216 | 8.3 | -- | -- | |
| UCP217-52 | 3 1/4 | 95.2 | 310 | 247 | 83 | 25 | 30 | 32 | 186 | 34.1 | 85.7 | M20 | UC217-52 | P217 | 10.8 | -- | -- | |
| 217 | 85 | 217 | ||||||||||||||||
| UCP218-56 | 3 1/2 | 101.6 | 326 | 262 | 88 | 27 | 30 | 33 | 198 | 39.7 | 96 | M22 | UC218-56 | P218 | 13 | 27 | 33 | |
| 218 | 90 | 218 | ||||||||||||||||
Delivert time: Normally ready goods and stock within 7 days
Payment Term: 30% T/T In Advance, 70% T/T Against Copy Of B/L
Package carton+pallet
If you have any question about bearings, pls contact us directly.
