spherical plain bearing/Rod end bearing:
rod end joint bearing Type: POS Series
♥ BEARING USAGE FIELD
used in transmission, instrumentation, electrical, household appliances, internal combustion engines, transport vehicles, agricultural machinery, construction machinery, engineering machinery, roller skate style, yo-yo and so on.
♥BEARING MATERIAL
100% chrome steel, carbon steel, nylon, brass, etc
♥BEARING PRECISION
GB | 0 | 6 | 5 | 4 |
ISO | 0 | 6 | 5 | 4 |
DIN | P0 | P6 | P5 | P4 |
JIS | 0 | 6 | 5 | 4 |
ANSI | ABEC-1 | ABEC-3 | ABEC-5 | ABEC-7 |

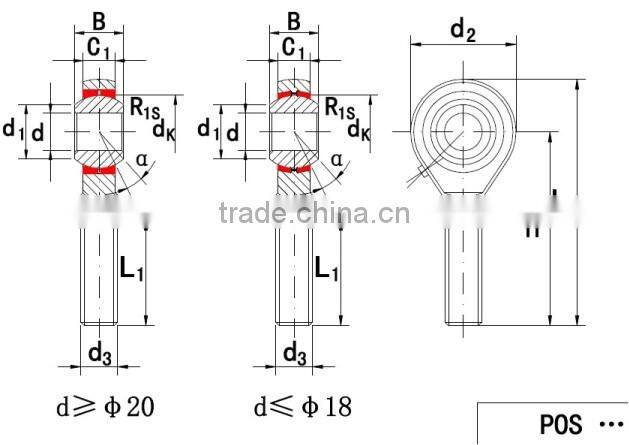

♥DETAILED DIMENSIONS:
| Item No. | Dimension (mm) | Load (KN) | Weight (kg) | ||||||||||||
| d | d3 | B | C1 | L1 | d2 | d2 | h | L2 | dk | R1s | a | Dynamic | Static | ||
| 6g | ≈ | C | C0 | ||||||||||||
| POS5 | 5 | M5x0.8 | 8 | 6 | 20 | 7.7 | 16 | 33 | 41 | 11.11 | 0.3 | 13 | 3.25 | 5.7 | 0.013 |
| POS6 | 6 | M6x1.0 | 9 | 6.75 | 22 | 8.96 | 18 | 36 | 45 | 12.7 | 0.3 | 13 | 4.3 | 7.2 | 0.02 |
| POS8 | 8 | M8x1.25 | 12 | 9 | 25 | 10.4 | 22 | 42 | 53 | 15.875 | 0.3 | 14 | 7.2 | 11.6 | 0.03 |
| POS10 | 10 | M10x1.5 | 14 | 10.5 | 29 | 12.9 | 26 | 48 | 61 | 19.05 | 0.3 | 13 | 10 | 14.5 | 0.055 |
| POS12 | 12 | M12x1.75 | 16 | 12 | 33 | 15.4 | 30 | 54 | 69 | 22.225 | 0.3 | 13 | 13.4 | 17 | 0.085 |
| POS12-1 | 12 | M12x1.25 | 16 | 12 | 33 | 15.4 | 30 | 54 | 69 | 22.225 | 0.3 | 13 | 13.4 | 17 | 0.085 |
| POS14 | 14 | M14x2.0 | 19 | 13.5 | 36 | 16.9 | 34 | 60 | 77 | 25.4 | 0.3 | 16 | 17 | 24 | 0.14 |
| POS16 | 16 | M16x2.0 | 21 | 15 | 40 | 19.4 | 40 | 66 | 86 | 28.575 | 0.3 | 15 | 21.6 | 28.5 | 0.21 |
| POS16-1 | 16 | M16x1.5 | 21 | 15 | 40 | 19.4 | 40 | 66 | 86 | 28.575 | 0.3 | 15 | 21.6 | 28.5 | 0.21 |
| POS18 | 18 | M18x1.5 | 23 | 16.5 | 44 | 21.9 | 44 | 72 | 94 | 31.75 | 0.3 | 15 | 26 | 42.5 | 0.28 |
| POS20 | 20 | M20x1.5 | 25 | 18 | 47 | 24.4 | 50 | 78 | 103 | 34.925 | 0.3 | 14 | 31.5 | 52.5 | 0.38 |
| POS22 | 22 | M22x1.5 | 28 | 20 | 51 | 25.8 | 54 | 84 | 111 | 38.1 | 0.3 | 15 | 38 | 57 | 0.48 |
| POS25 | 25 | M24x2.0 | 31 | 22 | 57 | 29.6 | 60 | 94 | 124 | 42.86 | 0.3 | 15 | 47.5 | 68 | 0.64 |
| POS28 | 28 | M27x2.0 | 35 | 24 | 62 | 32.3 | 66 | 103 | 136 | 47.63 | 0.3 | 15 | 58 | 75.5 | 0.96 |
| POS30 | 30 | M30x2.0 | 37 | 25 | 66 | 34.8 | 70 | 110 | 145 | 50.8 | 0.3 | 17 | 64 | 88 | 1.1 |
Delivert time: Normally ready goods and stock within 7 days
Payment Term: 30% T/T In Advance, 70% T/T Against Copy Of B/L
Package carton+pallet
If you have any question about bearings, pls contact us directly.
The picture of PHS Series
