spherical plain bearing/Rod end:
rod end joint bearings Type: PHS Series.
♥ BEARING USAGE FIELD
used in transmission, instrumentation, electrical, household appliances, internal combustion engines, transport vehicles, agricultural machinery, construction machinery, engineering machinery, roller skate style, yo-yo, etc.
♥BEARING MATERIAL
100% chrome steel, carbon steel, nylon, brass, etc
♥BEARING PRECISION
GB | 0 | 6 | 5 | 4 |
ISO | 0 | 6 | 5 | 4 |
DIN | P0 | P6 | P5 | P4 |
JIS | 0 | 6 | 5 | 4 |
ANSI | ABEC-1 | ABEC-3 | ABEC-5 | ABEC-7 |
♥DETAILED DIMENSIONS:
| Item No. | Dimension (mm) | Load (KN) | Weight (kg) | |||||||||||||||
| d | d3 | B | C1 | L3 | W | d2 | d1 | h1 | L4 | L5 | d4 | d5 | dk | a | Dynamic | Static | ||
| 6H | min | ≈ | C | C0 | ||||||||||||||
| PHS4 | 4 | M4x0.7 | 7 | 5.25 | 8 | 8 | 14 | 6.5 | 24 | 31 | 4 | 8 | 9.5 | 9.525 | 13 | 3 | 5 | 0.009 |
| PHS5 | 5 | M5x0.8 | 8 | 6 | 10 | 9 | 16 | 7.7 | 27 | 35 | 4 | 8.5 | 11 | 11.11 | 13 | 3.25 | 5.7 | 0.016 |
| PHS6 | 6 | M6x1.0 | 9 | 6.75 | 12 | 11 | 18 | 8.96 | 30 | 39 | 5 | 10 | 13 | 12.7 | 13 | 4.3 | 7.2 | 0.022 |
| PHS8 | 8 | M8x1.25 | 12 | 9 | 16 | 14 | 22 | 10.4 | 36 | 47 | 5 | 12.5 | 16 | 15.875 | 14 | 7.2 | 11.6 | 0.047 |
| PHS10 | 10 | M10x1.5 | 14 | 10.5 | 20 | 17 | 26 | 12.9 | 43 | 56 | 6.5 | 15 | 19 | 19.05 | 13 | 10 | 14.5 | 0.077 |
| PHS10-1 | 10 | M10x1.25 | 14 | 10.5 | 20 | 17 | 26 | 12.9 | 43 | 56 | 6.5 | 15 | 19 | 19.05 | 13 | 10 | 14.5 | 0.077 |
| PHS12 | 12 | M12x1.75 | 16 | 12 | 22 | 19 | 30 | 15.4 | 50 | 65 | 6.5 | 17.5 | 22 | 22.225 | 13 | 13.4 | 17 | 0.1 |
| PHS12-1 | 12 | M12x1.25 | 16 | 12 | 22 | 19 | 30 | 15.4 | 50 | 65 | 6.5 | 17.5 | 22 | 22.225 | 13 | 13.4 | 17 | 0.1 |
| PHS14 | 14 | M14x2.0 | 19 | 13.5 | 25 | 22 | 34 | 16.9 | 57 | 74 | 8 | 20 | 25 | 25.4 | 16 | 17 | 24 | 0.16 |
| PHS14-1 | 14 | M14x1.5 | 19 | 13.5 | 25 | 22 | 34 | 16.9 | 57 | 74 | 8 | 20 | 25 | 25.4 | 16 | 17 | 24 | 0.16 |
| PHS16 | 16 | M16x2.0 | 21 | 15 | 28 | 22 | 40 | 19.4 | 64 | 84 | 8 | 22 | 27 | 28.575 | 15 | 21.6 | 28.5 | 0.22 |
| PHS16-1 | 16 | M16x1.5 | 21 | 15 | 28 | 22 | 40 | 19.4 | 64 | 84 | 8 | 22 | 27 | 28.575 | 15 | 21.6 | 28.5 | 0.22 |
| PHS18 | 18 | M18x1.5 | 23 | 16.5 | 32 | 27 | 44 | 21.9 | 71 | 93 | 10 | 25 | 31 | 31.75 | 15 | 26 | 42.5 | 0.32 |
| PHS20 | 20 | M20x1.5 | 25 | 18 | 33 | 30 | 50 | 24.4 | 77 | 102 | 10 | 27.5 | 34 | 34.925 | 14 | 31.5 | 42.5 | 0.42 |
| PHS22 | 22 | M22x1.5 | 28 | 20 | 37 | 32 | 54 | 25.8 | 84 | 111 | 12 | 30 | 38 | 38.1 | 15 | 38 | 57 | 0.54 |
| PHS25 | 25 | M24x2.0 | 31 | 22 | 42 | 36 | 60 | 29.6 | 94 | 124 | 12 | 33.5 | 42 | 42.86 | 15 | 47.5 | 68 | 0.73 |
| PHS28 | 28 | M27x2.0 | 35 | 24 | 48 | 41 | 66 | 32.3 | 103 | 136 | 14 | 37 | 46 | 47.63 | 15 | 58 | 75 | 0.98 |
| PHS30 | 30 | M30x2.0 | 37 | 25 | 51 | 41 | 70 | 34.8 | 110 | 145 | 15 | 40 | 50 | 50.8 | 17 | 64 | 88 | 1.1 |
| PHS30-1 | 30 | M27x2.0 | 37 | 25 | 51 | 41 | 70 | 34.8 | 110 | 145 | 15 | 40 | 50 | 50.8 | 17 | 64 | 88 | 1.1 |
Delivert time: Normally ready goods and stock within 7 days
Payment Term: 30% T/T In Advance, 70% T/T Against Copy Of B/L
Package carton+pallet
If you have any question about bearings, pls contact us directly.

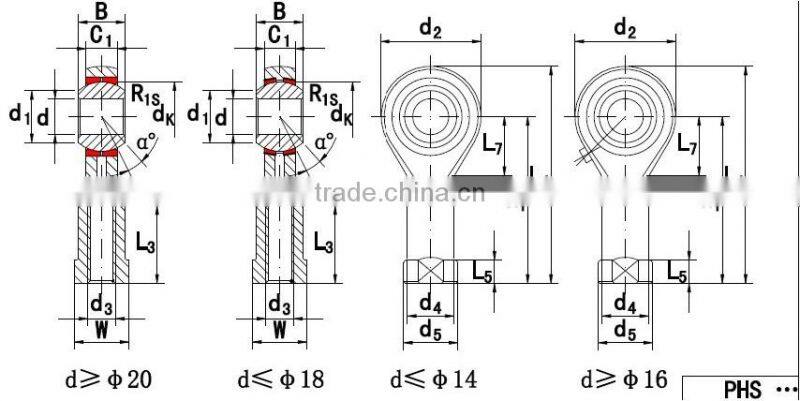

The picture of PHS Series
