Home > Industrial Equipment & Components > Bearing > Pillow Block Bearing > UCF204 Pillow Block Bearing/house Bearing/inserted Bearing

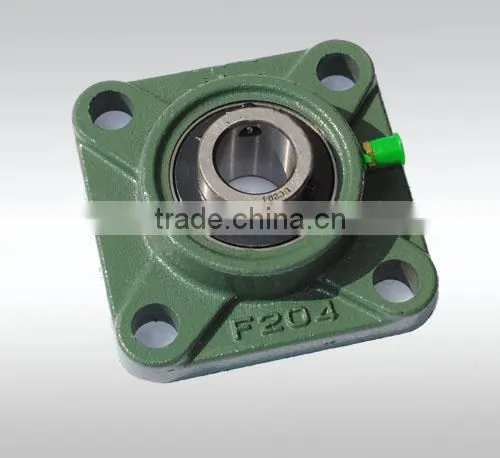

UCF204 Pillow Block Bearing/house Bearing/inserted Bearing
US$ 1 - 8
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Bore Size:
15, 90
Brand Name:
Neutral
Model Number:
UCF204
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
POS5 Spherical Plain Bearing/Rod End BearingUS$ 0.5 - 2MOQ: 500 Pieces -
Spherical Plain Bearing PHS5/Rod EndUS$ 0.5 - 2MOQ: 500 Pieces
-
Spherical Plain Bearing/Rod End Bearing/rod End Joint BearingUS$ 1 - 2MOQ: 500 Pieces
-
Radial Spherical Plain Bearing/rod End BearingUS$ 0.5 - 2MOQ: 500 Pieces
-
Joint Bearing, Joint Bearing, Knuckle BearingUS$ 0.5 - 2MOQ: 500 Pieces
Bore Size
15, 90
Brand Name
Neutral
Model Number
UCF204
Place of Origin
Zhejiang, China
pillow block bearing/house bearing/inserted bearing:
Spherical ball bearing/pillow block UCF200 series
♥ BEARING USAGE FIELD
used in transmission, instrumentation, electrical, household appliances, internal combustion engines, transport vehicles, agricultural machinery, construction machinery, engineering machinery and so on.
♥BEARING MATERIAL
100% chrome steel, stainless steel.
♥BEARING TYPE NUMBER AS FOLLOWING:

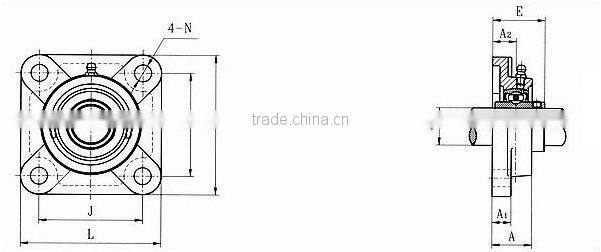

| Unit No. | Shaft Dia. | Dimensions(mm) | Bolt | Bearing | Housing No. | Mass | Available | ||||||||
| d | L | J | A2 | A1 | A | E | N | S | Size | No. | (kg) | N | |||
| (in.) | (mm) | ||||||||||||||
| UCF202 | 15 | 76 | 54 | 15 | 11 | 25.5 | 30.9 | 11.5 | 11.5 | M10 | UC202 | F203 | 0.57 | -- | |
| 202-10 | 5/8 | 202-10 | |||||||||||||
| 203 | 17 | 203 | 0.5 | ||||||||||||
| 203-11 | 11/16 | 203-11 | |||||||||||||
| UCF204-12 | 3/4 | 20 | 86 | 64 | 15 | 11 | 25.5 | 33.3 | 11.5 | 12.7 | M10 | UC204-12 | F204 | 0.61 | 12 |
| 204 | 204 | ||||||||||||||
| UCF205-14 | 7/8 | 95 | 70 | 16 | 13 | 27 | 35.7 | 11.5 | 14.3 | M10 | UC205-14 | F205 | 0.8 | 12 | |
| 205-15 | 15/16 | 205-15 | |||||||||||||
| 205 | 25 | 205 | |||||||||||||
| 205-16 | 1 | 205-16 | |||||||||||||
| UCF206-18 | 1 1/8 | 108 | 83 | 18 | 13 | 31 | 40.2 | 11.5 | 15.9 | M10 | UC206-18 | F206 | 1.07 | 12 | |
| 206 | 30 | 206 | |||||||||||||
| 206-19 | 1 3/16 | 206-19 | |||||||||||||
| 206-20 | 1 1/4 | 206-20 | |||||||||||||
| UCF207-20 | 1 1/4 | 117 | 92 | 19 | 15 | 34 | 44.4 | 14 | 17.5 | M12 | UC207-20 | F207 | 1.4 | -- | |
| 207-21 | 1 5/16 | 207-21 | |||||||||||||
| 207-22 | 1 3/8 | 207-22 | |||||||||||||
| 207 | 35 | 207 | |||||||||||||
| 207-23 | 1 7/16 | 207-23 | |||||||||||||
| UCF208-24 | 1 1/2 | 130 | 102 | 21 | 15 | 36 | 51.2 | 14 | 19 | M12 | UC208-24 | F208 | 1.8 | 16 | |
| 208-25 | 1 9/16 | 208-25 | |||||||||||||
| 208 | 40 | 208 | |||||||||||||
| UCF209-26 | 1 5/8 | 137 | 105 | 22 | 16 | 38 | 52.2 | 16 | 19 | M14 | UC209-26 | F209 | 2.2 | -- | |
| 209-27 | 1 11/16 | 209-27 | |||||||||||||
| 209-28 | 1 3/4 | 209-28 | |||||||||||||
| 209 | 45 | 209 | |||||||||||||
| UCF210-30 | 1 7/8 | 143 | 111 | 22 | 16 | 40 | 54.6 | 18 | 19 | M16 | UC210-30 | F210 | 2.4 | 16 | |
| 210-31 | 1 15/16 | 210-31 | |||||||||||||
| 210 | 50 | 210 | |||||||||||||
| UCF211-32 | 2 | 162 | 130 | 25 | 18 | 43 | 58.4 | 18 | 22.2 | M16 | UC211-32 | F211 | 3.5 | 19 | |
| 211-34 | 2 1/8 | 55 | 211-34 | ||||||||||||
| 211 | 211 | ||||||||||||||
| 211-35 | 2 3/16 | 211-35 | |||||||||||||
| UCF212-36 | 2 1/4 | 175 | 143 | 29 | 18 | 48 | 68.7 | 18 | 25.4 | M16 | UC212-36 | F212 | 4.2 | 19 | |
| 212 | 60 | 212 | |||||||||||||
| 212-38 | 2 3/8 | 212-38 | |||||||||||||
| 212-39 | 2 7/16 | 212-39 | |||||||||||||
| UCF213-40 | 2 1/2 | 187 | 149 | 30 | 22 | 50 | 69.7 | 18 | 25.4 | M16 | UC213-40 | F213 | 5.3 | 19 | |
| 213 | 65 | 213 | |||||||||||||
| UCF214-44 | 2 3/4 | 193 | 152 | 31 | 22 | 54 | 75.4 | 18 | 30.2 | M16 | UC214-44 | F214 | 5.9 | 19 | |
| 214 | 70 | 214 | |||||||||||||
| UCF215-47 | 2 15/16 | 75 | 200 | 159 | 34 | 22 | 56 | 78.5 | 18 | 33.3 | M16 | UC215-47 | F215 | 6.3 | 19 |
| 215 | 215 | ||||||||||||||
| 215-48 | 3 | 215-48 | |||||||||||||
| UCF216 | 80 | 208 | 165 | 34 | 22 | 57 | 83.3 | 22 | 33.3 | M20 | UC216 | F216 | 7.3 | 23 | |
| UCF217-52 | 3 1/4 | 220 | 175 | 36 | 24 | 63 | 87.6 | 23 | 34.1 | M20 | UC217-52 | F217 | 8.9 | ||
| 217 | 85 | 217 | |||||||||||||
| UCF218-56 | 2 1/2 | 235 | 187 | 40 | 25 | 68 | 96.3 | 23 | 39.7 | M20 | UC218-56 | F218 | 11.6 | ||
| 218 | 90 | 218 | |||||||||||||
Delivert time: Normally ready goods and stock within 7 days.
Payment Term: 30% T/T In Advance, 70% T/T Against Copy Of B/L.
Package: carton+pallet.
If you have any question about bearings, pls contact us directly.
