High Strength Pp Woven Geotextile(200kn/M) Description

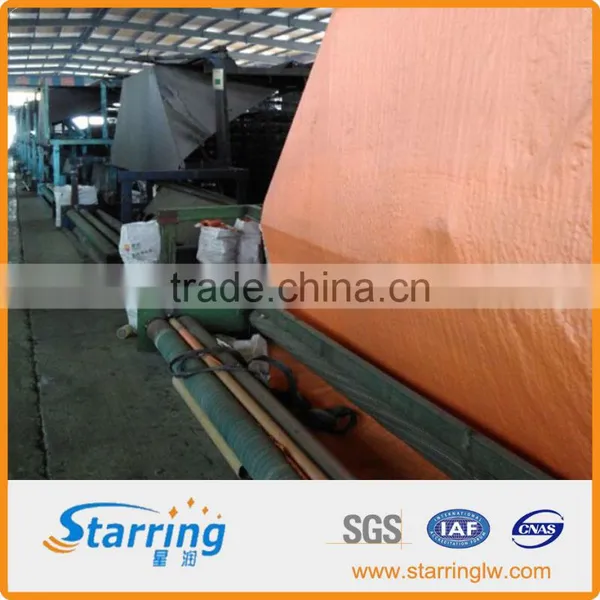

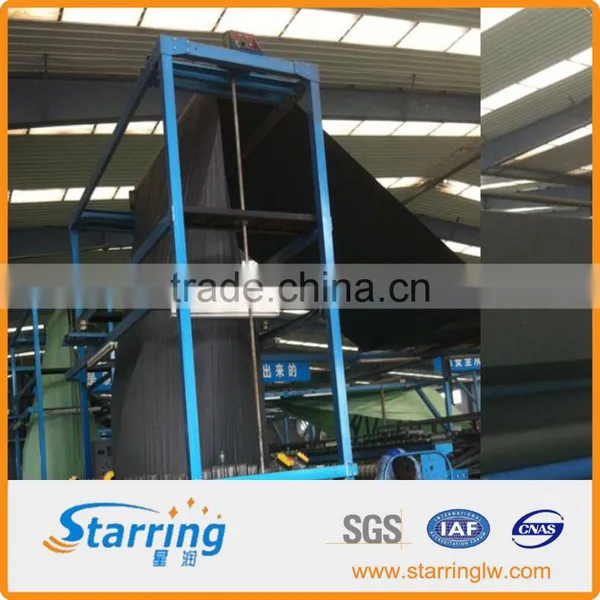

A woven geotextiles is an economical solution for any civil engineering applications. It separates, stabilizes, and reinforces soils and allos allows for filtration. Woven geotextiles are manufactured by extruding polypropylene film and then slitting the film into individual yarns which are then woven to form the geotextiles.
High Strength Pp Woven Geotextile(200kn/M) Application

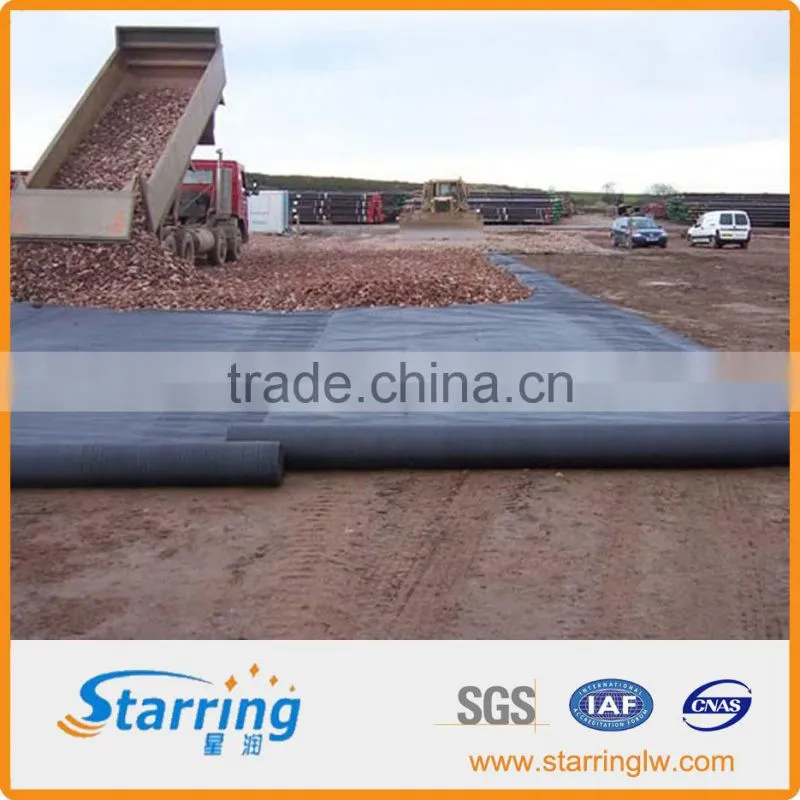

1-Construction of roads and other trafficked areas (excluding railways and asphalt inclusion)
2-Construction of railways,
3-Earthworks, foundations and retaining structures,
4-Use in drainage systems,
5-Erosion control works (coastal protection, bank revetments),
6-Construction of reservoirs and dams,
7-Construction of canals,
8-Construction of tunnels and underground structures,
9-Use in solid waste disposals,
10-Use in liquid waste containment projects,
High Strength Pp Woven Geotextile(200kn/M) Features
Functions- separation, reinforcement, filtration
Excellent puncture and tear resistance along with high tensile strengths
Uniform opening provide excellent flow and filtration characteristics
Lightweights are typically used for separation of good to moderate sub grades and for controlling run-off and flow velocity.
Heavy weight Wovens are typically used for separation and reinforcement and applications such as the stabilization of weak sub grades for heavy loads or if the base material is abrasive.
Low deformation systems such as paved road on weak sub grades require a product that will increase the bearing resistance of the sub grade as well as provide separation and filtration under long term dynamic loads
Consider a Woven geotextile with high modulus, high flow and an AOS compatible with sub grade soil
High Strength Pp Woven Geotextile(200kn/M) Data Sheet
Item |
Testing Method |
Unit |
||
Grab Tensile Strength |
ASTM- High Strength Pp Woven Geotextile(200kn/M) 4632 |
N |
890 |
1405 |
Grab Elongation |
ASTM-D 4632 |
% |
≤20 |
≤20 |
Puncture Strength |
ASTM-D 4833 |
N |
400 |
667 |
CBR Puncture |
ASTM-D 6241 |
N |
3200 |
4800 |
Mullen Burst |
ASTM-D 3786 |
kPA |
2578 |
4137 |
Trapezoidal Tear |
ASTM-D 4533 |
N |
500 |
750 |
Apparent Opening Size |
ASTM-D 4751 |
mm |
0.425 |
0.425 |
Permittivity |
ASTM-D 4491 |
Sec-1 |
0.05 |
0.05 |
Water Flow Rate |
ASTM-D 4491 |
1/m/m2 |
163 |
163 |
UV Resistance |
ASTM-D 4355 |
% 500hrs |
70 |
70 |
Roll Width |
m |
6 |
6 |
|
Roll Length |
m |
100 |
100 |
|
Mass |
GSM |
200 |
300 |
