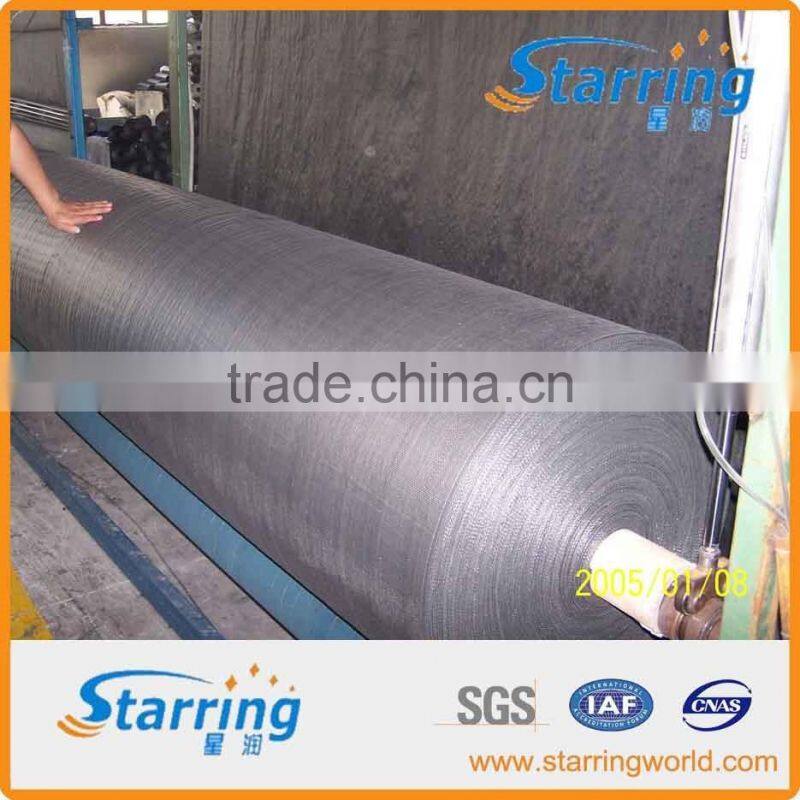

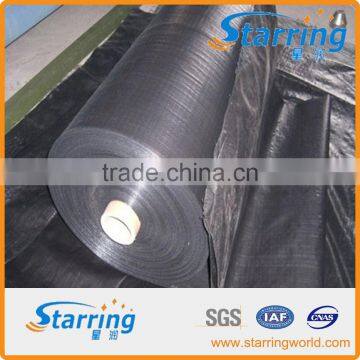

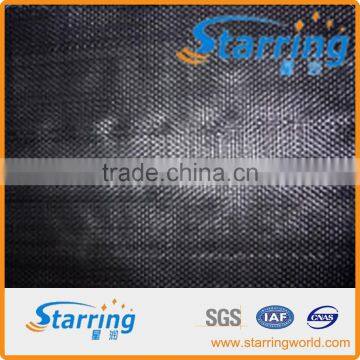

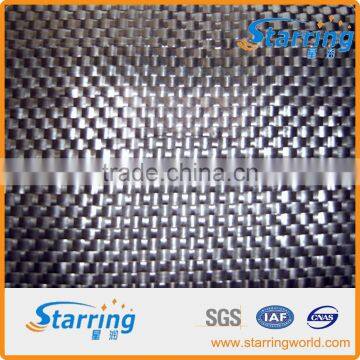

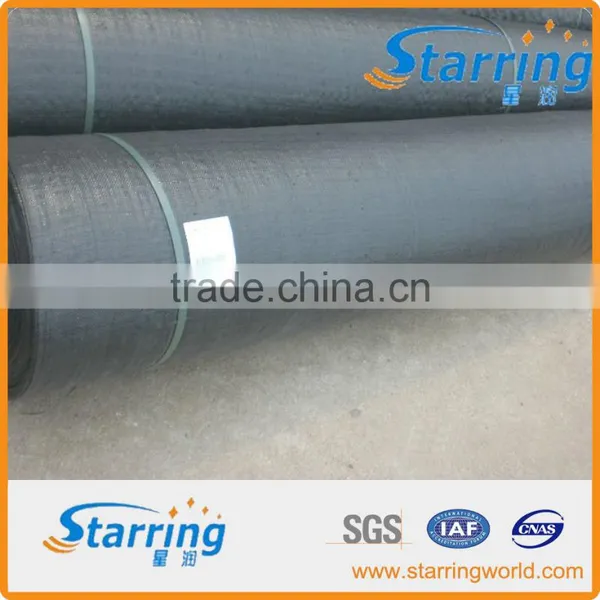

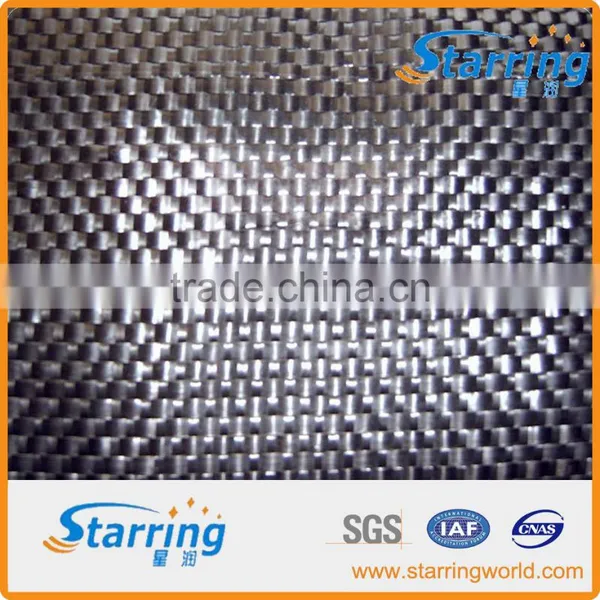

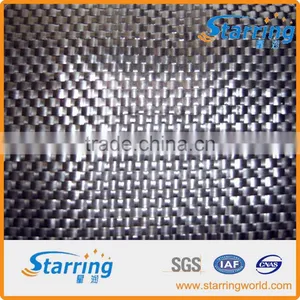

Road Construction Fabric PP Woven Geotextile
Road Construction Fabric PP Woven Geotextile Description
PP Woven Geotextile has light weight, high tensile strength, low elongation, easy installation, cost-saving etc.
PP woven geotextile using the polypropylene as the material has the merits of low weight, high reinforcement, small elongation, easy installation, low price, etc. And it can be fixed with one side or two sides of needle punched geotextile to form reinforcement geotextile.
Weight:100-650g/m2
Width: 2---6 Meters
Roll length:As per the customer's requirement.
Road Construction Fabric PP Woven Geotextile Technical Data Sheet
Items | unit | Value | |||||||||||||
Weight | g/ | 120 | 160 | 200 | 240 | 280 | 340 | 400 | 460 | 520 | 580 | 640 | |||
Breaking Strength | MD | KN/m | 20 | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | ||
TD | KN/m | According to the agreement. the value will be( 0.71)×value of MD without request. | |||||||||||||
Elongation at Break | % ≤ | 25 | |||||||||||||
Width Variation | % | -1.0 | |||||||||||||
CBR Mullen | KN≥ | 1.6 | 2.4 | 3.2 | 4.0 | 4.8 | 6.0 | 7.5 | 9.0 | 10.5 | 12.0 | 13.5 | |||
Sieve Size O95 | mm | 0.070.5 | |||||||||||||
Permeability | cm/s | K×(10-210-5) k=1.0-9.9 | |||||||||||||
UV Resistance | %≥ | 70(500h) | |||||||||||||
Tear Strength | KN≥ | 0.20 | 0.27 | 0.34 | 0.41 | 0.48 | 0.60 | 0.72 | 0.84 | 0.96 | 1.10 | 1.25 | |||
| |||||||||||||||
Road Construction Fabric PP Woven Geotextile Application

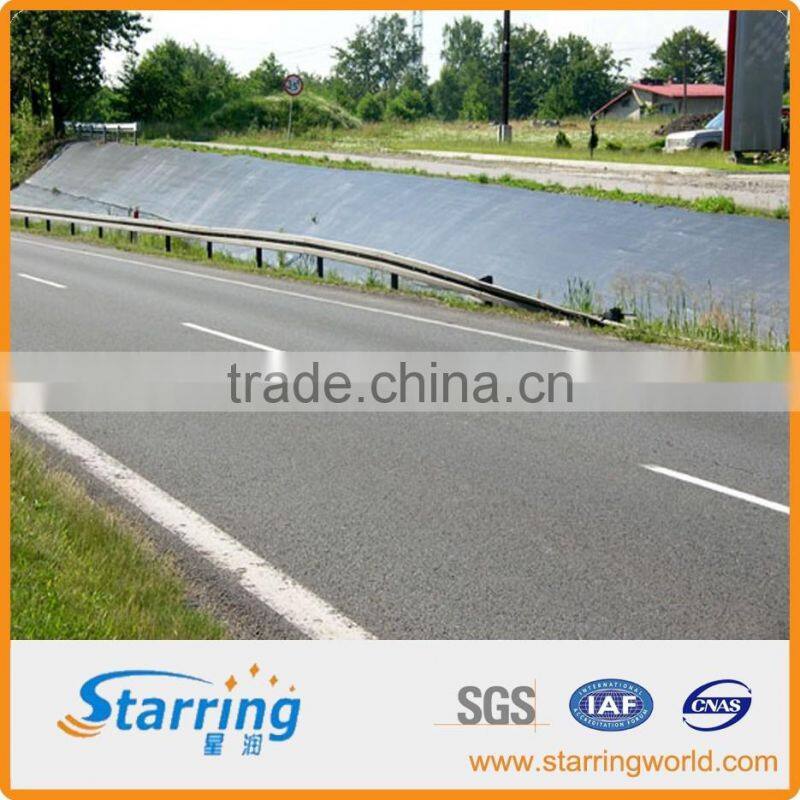

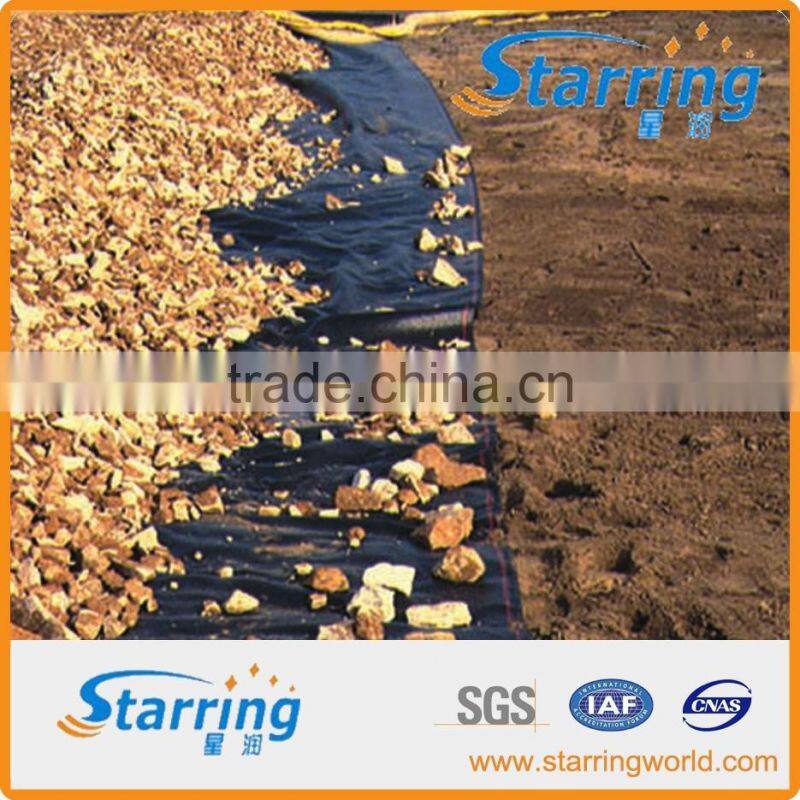

Road Construction Fabric Application
Road Construction Fabric Application
