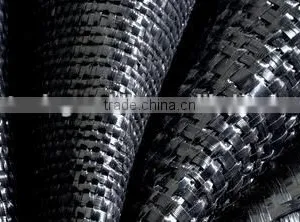

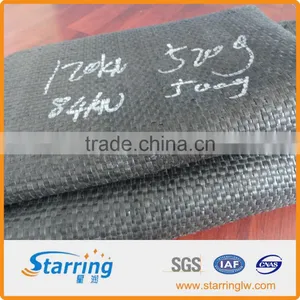

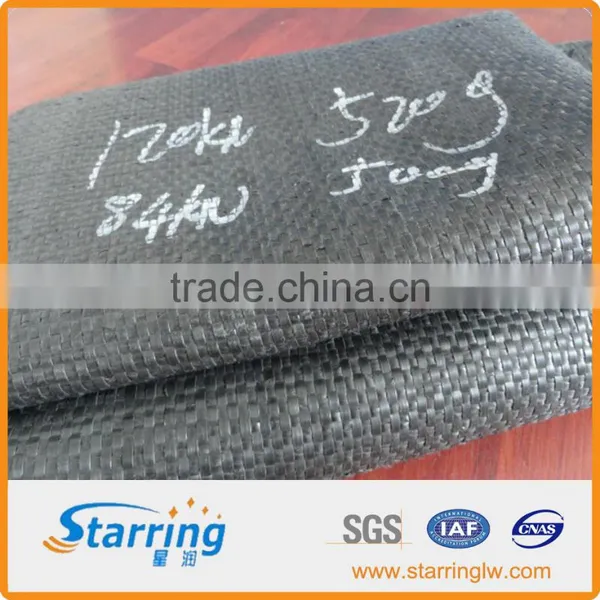

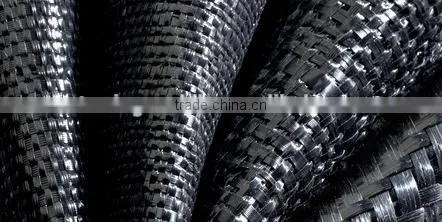

5.6MX50M PP Woven Geotextile 200g m2
Woven Geotextile 200g m2 Description
Woven geotextile mainly uses polypropylene(PP),polyethylene(PE) as raw materials. After extruding, film slitting, stretching, flat yarn(single yarn, film splitting yarn) is knitted into geotextile.Woven geotextile has high strength and can keep enough strength and elongation in dry and wet condition. It has long term corrosion resistance in the soil and water with different PH; There are gaps between flat yarns, making it has excellent water permeability performance. Due to its excellent microbiological degradation resistance, the geotextile will be free from damaged by micro-organism and worm. The material is light and soft, so it is convenient to transport and install.
NO. | Item | Index | |||||||
20-15 | 30-22 | 40-28 | 50-35 | 60-42 | 80-56 | 100-701 | |||
1 | Break Strength KN/m≥(LD) | 20 | 30 | 40 | 50 | 60 | 80 | 100 | |
2 | Break Strength KN/m≥(TD) | 15 | 22 | 28 | 35 | 42 | 56 | 70 | |
3 | Break Elongation %≤(LD,TD) | 28 | |||||||
4 | Trapozoidal Tearing Strength KN≥(LD) | 0.3 | 0.45 | 0.5 | 0.6 | 0.75 | 1.0 | 1.2 | |
5 | Burst Strength KN≥ | 1.6 | 2.4 | 3.2 | 4.0 | 4.8 | 6.0 | 7.5 | |
6 | Vertical Permeability Coefficient cm/s | 10-1 _ 10 -3 | |||||||
7 | Sieve Size(O95.)mm | 0.08-0.5 | |||||||
8 | Mass Weight g/m2 | 120 | 160 | 200 | 240 | 280 | 340 | 400 | |
9 | Variation% | ±10 | |||||||
