Specifications
200g need punched geotextile exporterMaterial:PP recycled or virgin
Width:1-6m
Weight:100-1200gsm
White/black

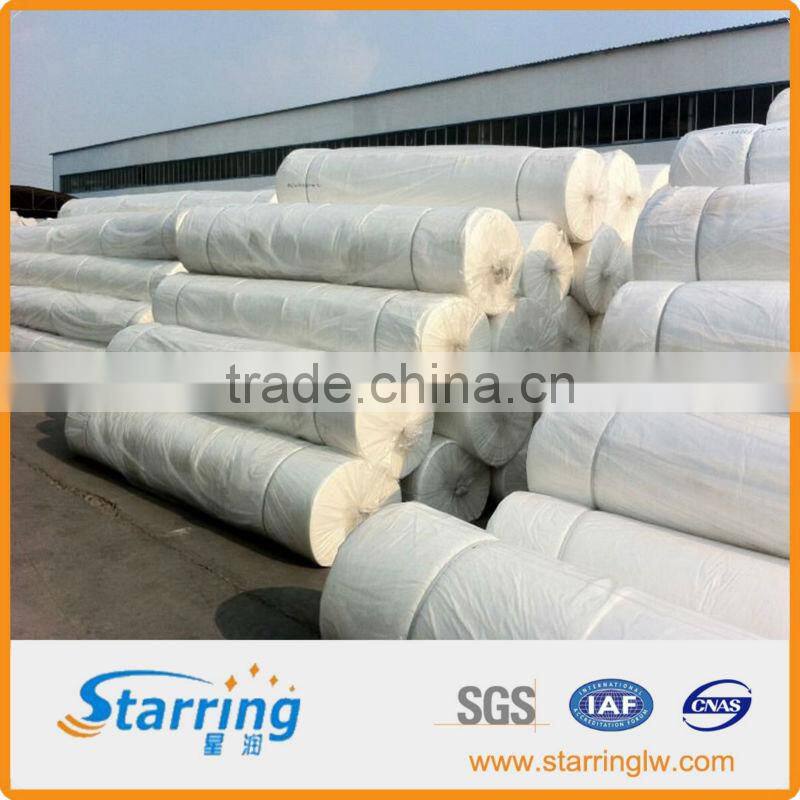

200g need punched geotextile exporter
200g need punched geotextile exporter Introduction:
1 Material :our geotextile can be made of polypropylene(PP).
2 weight: from 75g per square meter to 1000g per square meter
3 width:2.0m to 6.5m is avaible ,we also can offer special specifications according to customers request.
4 supply ability :we can supply 6 .5 million square meter per year.
5 features:pp geotextile canbe heat treated by infared at customers requirements. Our geotextile are UV stabiled to give protection against aging under expourse to natural ultra-violent light
200g need punched geotextile exporter Feature:
1. High intensity, strong penetration resistance;
2. Resistant to acid and alkaline, corrosion and aging;
3. Excellent permeability and filterability;
4. Low cost, favorable price and convinent construction
200g need punched geotextile exporter Application:
1.Filtration :
It can be the filtration layer of the dykes, river canal, seacoast, concrete slope, retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.
2.Separation :
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings.
3.Reinforcement/Roofing :
The highway, railway, soil-stone dam, breakwater, airport and backfill soil of retaining wall, slope protection, etc in which distributes the earth stress, prevents the side-displacement of the earth body and improves the earth-body stability. Also, used as a waterproofing substrate for roofing industries
4.Protection :
It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from being washed away
200g need punched geotextile exporter Index:
Item |
Specification |
||||||||
100 |
150 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 |
|
|
Nominal Breaking strength,KN/M
|
4.5 |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
|
Breaking strength,MD/CD,KN/M≥
|
4.5 |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
|
Elongation at break,%
|
40-80 |
||||||||
|
CBR Mullen Burst Strength,KN≥
|
0.8 |
1.6 |
1.9 |
2.9 |
3.9 |
5.3 |
6.4 |
7.9 |
8.5 |
|
Tear strength,KN≥
|
0.14 |
0.21 |
0.28 |
0.42 |
0.56 |
0.70 |
0.82 |
1.10 |
1.25 |
|
Sieve size O90(O95),mm
|
0.05-0.20 |
||||||||
Vertical Permeability Coefficient, cm/s |
K×(10-1-10-3), K=1.0-9.9 |
||||||||
Thickness,mm≥ |
0.8 |
1.2 |
1.6 |
2.2 |
2.8 |
3.4 |
4.2 |
5.5 |
6.8 |
Width Variation,% |
-0.5 |
||||||||
Weight Variation,% |
-5 |
||||||||
Remarks |
We also can produce almost double Strength higher than the chart show |
||||||||
