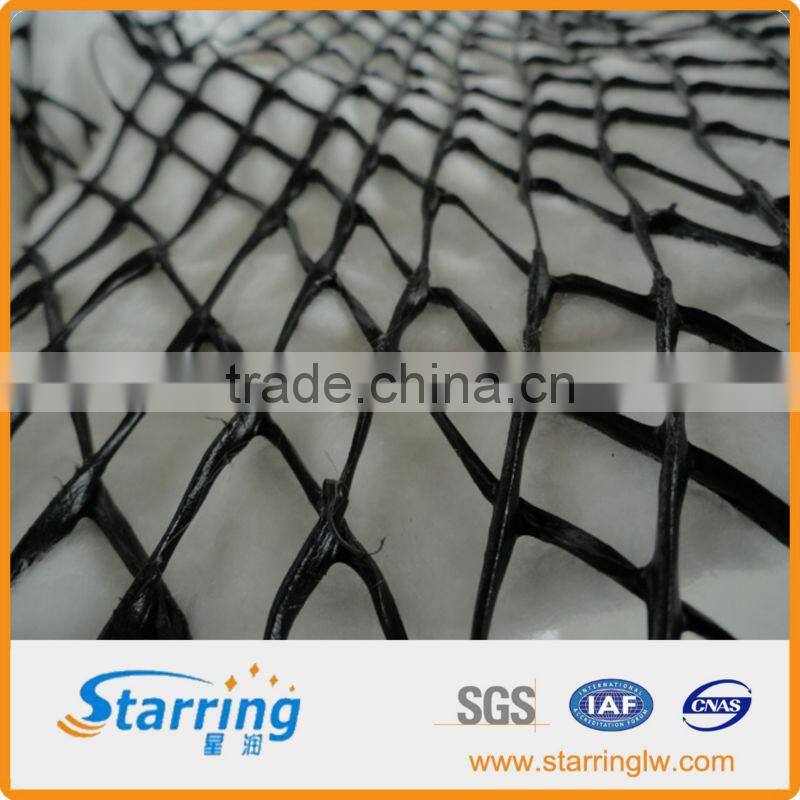

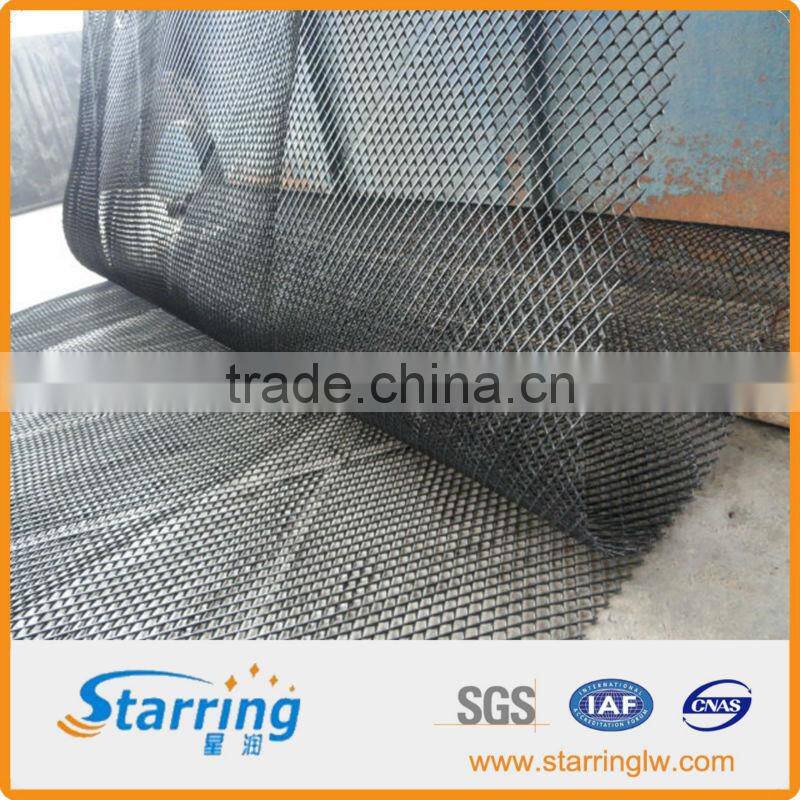

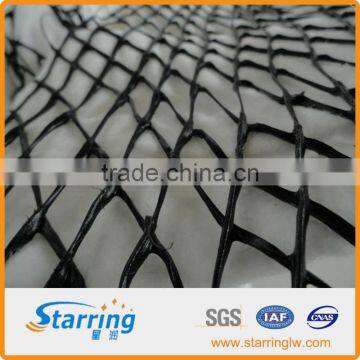

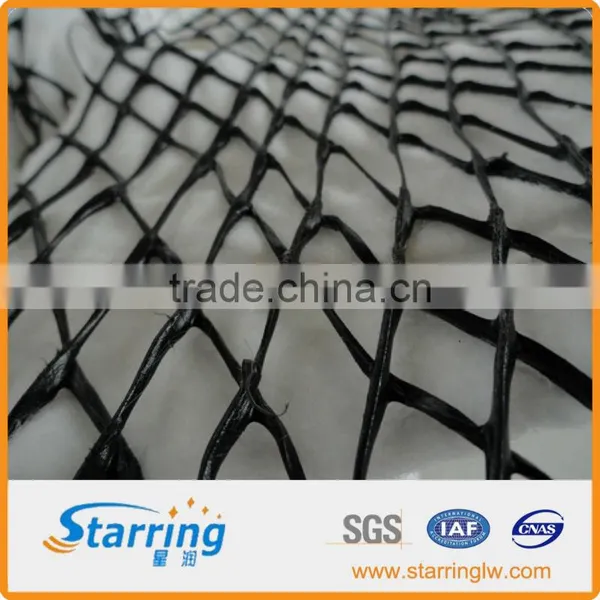

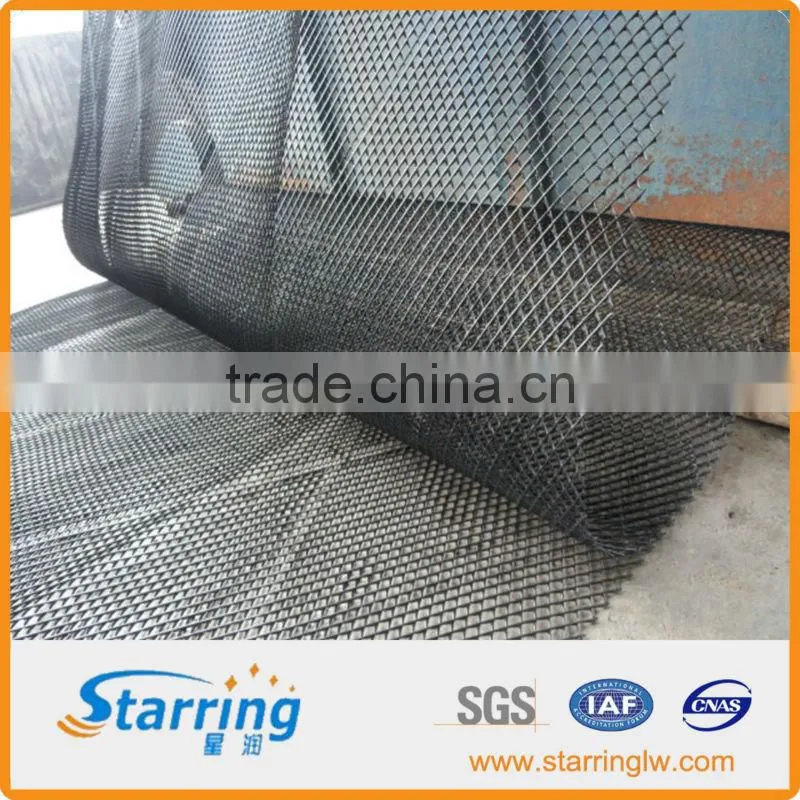

Geocomposite 3D Geonet
Geocomposite 3D Geonet Introduction:
Geocomposite Drainage Net a unique three-dimensional double-sided sticky geonet and nonwoven geotextile made of. Integration of geotextiles (filtration effect) and geonet (drainage and reinforcement effects), played a "filtration - Drainage - to protect" the overall effect. Unique three-dimensional three-dimensional composite drainage network structure, in the course can withstand high pressure loads, and can maintain a considerable thickness, high tensile strength, corrosion resistance, acid and alkali, drainage capability, which provides a very high hydraulic conductivity
Geocomposite 3D Geonet Application:
1. Hydraulic Engineering: Inverse filtering & protection in reservoir dam, earth rock cofferdam,tunnel, gutter way, etc; Protection for impervious layer in artificial lake, riverway, reservoir, etc;
2. Road Works: Drainage work in retaining wall, road side slope, roadbed, underlayer of railway & airfield runway, interlayer for roadbed & pavement in highway & asphalt road 3. Harbor Engineering: Isolation of soft soil and rock block in cofferdam, dock and sea back;
4. Landfill Site Projects: Isolation & protection of impervious layer and basement, isolation of filter material & waste in land fill site;
5.Landscape Engineering:Isolation between green plant layer & base in landscape planting projects.
6.Other Usage: Drainage & reinforcement for week ground work (increase its bearing capacity);
Isolation & impervious layer for power plant, mill tailings, etc
Geocomposite 3D Geonet Index:
Unit |
|
||||||
1200g |
1400g |
1600g |
1800g |
2000g |
|||
1 |
Compound Weight of Unit Area |
g/m2 |
≥1200 |
≥1400 |
≥1600 |
≥1800 |
≥2000 |
2 |
Compound Thickness |
mm |
≥6.0 |
≥7.0 |
≥8.0 |
≥9.0 |
≥10.0 |
3 |
Compound Tensile Strength |
KN/m |
≥16.0 |
≥16.0 |
≥16.0 |
≥16.0 |
≥16.0 |
4 |
Compound Hydraulic Conductivity |
m2/s |
≥1.2×10-4 |
≥1.2×10-4 |
≥1.2×10-4 |
≥1.2×10-4 |
≥1.2×10-4 |
5 |
Net and Non-woven Geotextile Peel Strength |
KN/m |
≥0.3 |
≥0.3 |
≥0.3 |
≥0.3 |
≥0.3 |
6 |
Net Thickness |
mm |
≥5.0 |
≥5.0 |
≥6.0 |
≥7.0 |
≥8.0 |
7 |
Net Tensile Strength |
KN/m |
≥13.0 |
≥15.0 |
≥15.0 |
≥15.0 |
≥15.0 |
8 |
Non-woven Geotextile Weight of Unit Area |
g/m2 |
≥200 |
≥200 |
≥200 |
≥200 |
≥200 |
9 |
Non-woven Geotextile Permeability |
cm/s |
≥0.3 |
≥0.3 |
≥0.3 |
≥0.3 |
≥0.3 |
10 |
Width |
m |
2.1 |
2.1 |
2.1 |
2.1 |
2.1 |
11 |
Roll Length |
m |
30 |
30 |
30 |
30 |
30 |
Pls feel free to contact us:
