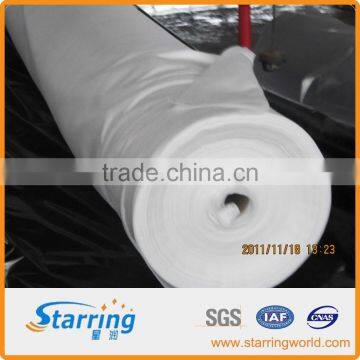

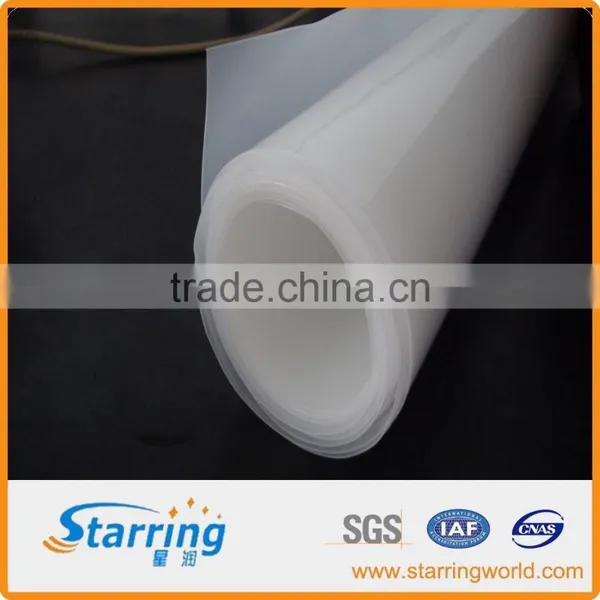

geotextile mat filament nonwoven geotextile
Products Description
Filament spunbond needle punched geotextile is made by dacron filament or polypropylene filament, featured with good physical property, high tensile, resisting tearing,bursting,stabbing,etc.It boasts excellent drainage,separation,filtration,protection performance.
Products Features
1.Abrasion resistance,flexibility
2.Safe and easy for construction
3.Excellent drainage performance
4.High strength, anti-aging,anti-acid and alkali
Application Range

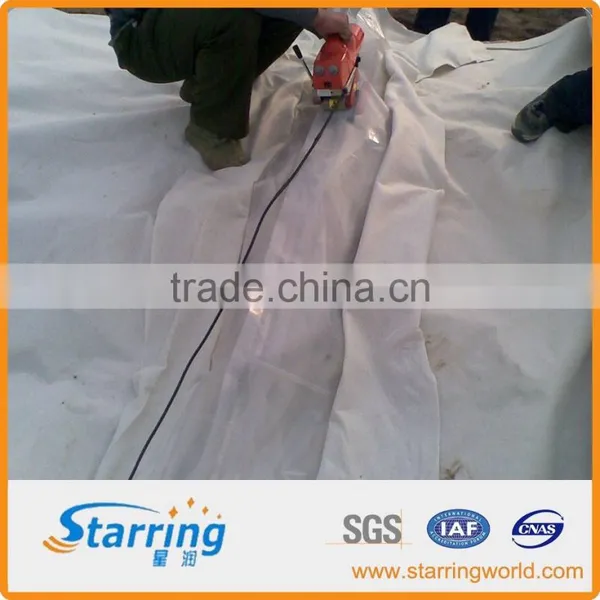

Widely used in highway, railway, dam, coastal shoal engineering reinforcement, inverted filter, isolation and drainage.
Product Specifications and Technical Parameters
NO. |
Item Specification Value |
Specification
|
||||||||||
100 |
150 |
200g |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
800 |
||
1 |
Weight Variation % |
-6 |
-6 |
-6 |
-5 |
-5 |
-5 |
-5 |
-5 |
-4 |
-4 |
-4 |
2 |
Thickness mm |
0.8 |
1.2 |
1.6 |
1.9 |
2.2 |
2.5 |
2.8 |
3.1 |
3.4 |
4.2 |
5.5 |
3 |
Width Variation % |
-0.5 |
||||||||||
4 |
Breaking Strength KN/m |
4.5 |
7.5 |
10.5 |
12.5 |
15.0 |
17.5 |
20.5 |
22.5 |
25.0 |
30.0 |
40.0 |
5 |
Elongation Break % |
40~80 |
||||||||||
6 |
CBR Mullen Burst Strength KN |
0.8 |
1.4 |
1.8 |
2.2 |
2.6 |
3.0 |
3.5 |
4.0 |
4.7 |
5.5 |
7.0 |
7 |
Sieve Size O90 mm |
0.07~0.2 |
||||||||||
8 |
Vertical Permeability Coefficient cm/s |
(1.0-9.9)×(10-1~10-3) |
||||||||||
9 |
Tear Strength KN |
0.14 |
0.21 |
0.28 |
0.35 |
0.42 |
0.49 |
0.56 |
0.63 |
0.7. |
0.82 |
1.10 |
