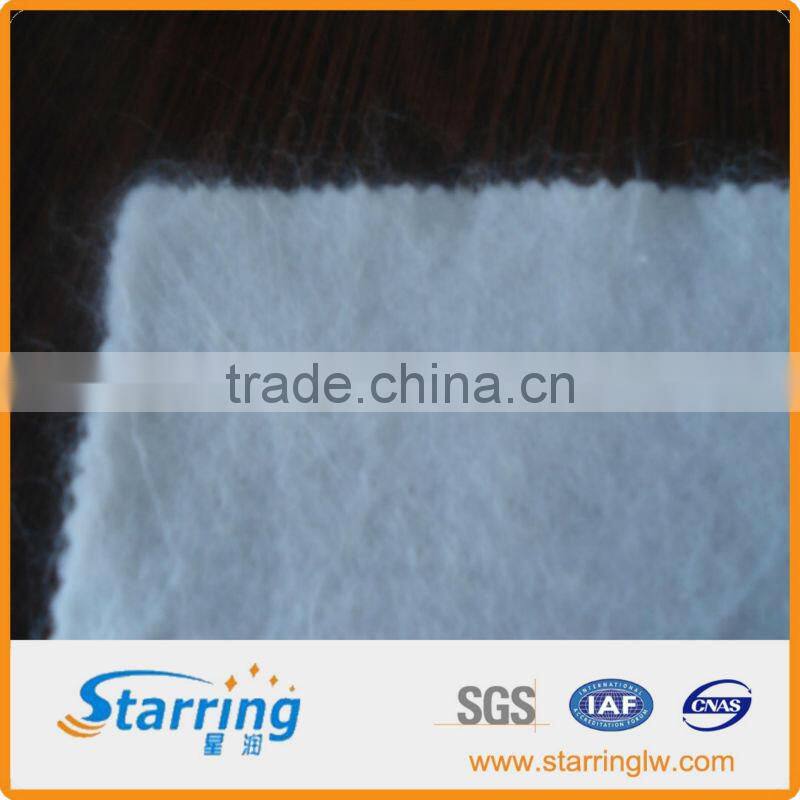

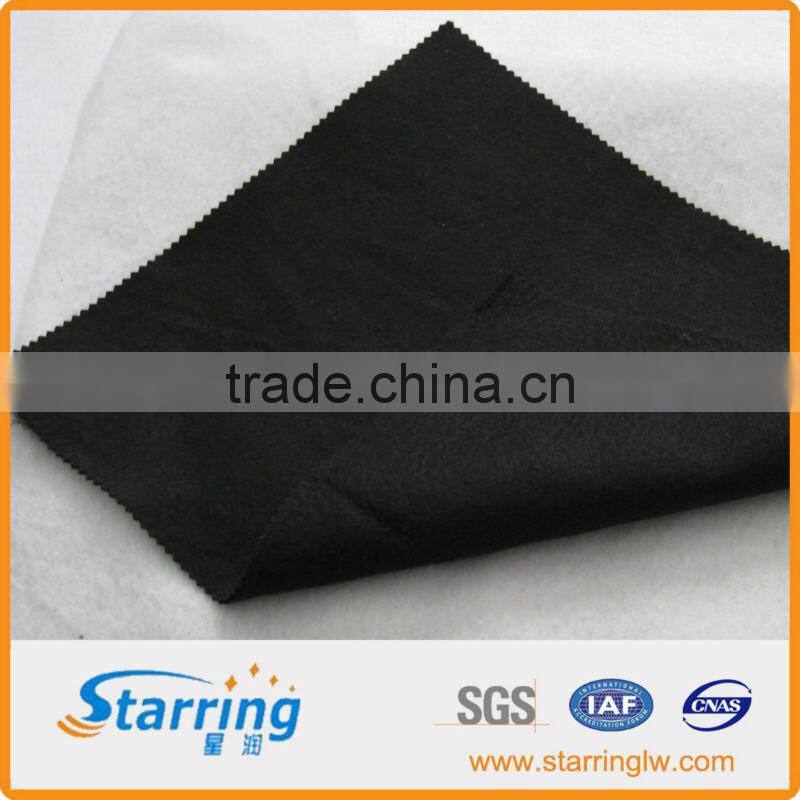

100% PP Non-Woven Geotextile sheet for Reinforcement
100% PP Non-Woven Geotextile sheet for Reinforcement Introduction:
100% PP Non-Woven Geotextile sheet for Reinforcement is a continuous filament nonwoven needlepunched polyester paving geotextiles, which provides stress relief, waterproofing and reduces reflective cracking functions in new and existing paved roads. Designed for countries having extreme weather conditions in mind , the product has undergone a number of years of testing and refinement to provide the best overall performance. The unique properties of these Geotextiles provide waterproofing and stress relief of the pavement structure. The high melt temperature of 100% PP Non-Woven Geotextile sheet for Reinforcement ensures that the geotextiles properties are not affected by the application of hot bitumen or asphalt.
100% PP Non-Woven Geotextile sheet for Reinforcement Feature:
The product has the property of anti-aging, high strength, good flexibility and permeability, filtration, isolation and easy construction etc.
It is widely used in areas of the railway, highway, sport venue, dyke, water project construction, tunnel, sea beach, inning...
Packing size: Width: 2-6m, Length: 50-100m
1.expertise,excellent quality system ,competitive price and reliable service
2. damp proof, breathable, non-toxic, good tensile strength,environmental,
corrosion preventive, UV resistance, ageing resistance, innocuous,reusable,hygienic, etc
100% PP Non-Woven Geotextile sheet for Reinforcement Application:
|
Industry |
geotextile fabric, water proofing fabric, filter material, roadbed cloth, bank protecting cloth, insulation materials, cement bag, landfill,controlling erosion , ground reinforcement,soil seperation, ground drainage,controlling weeds, structure drainage,etc
|
Garment |
Shoulder pads ,face mask ,shoes cover /insoles, chest piece fabric, chest piece fabric,bra fabric,sleeve article cage, cap/hat/bag lining, ,etc
|
|
leg non-slip pad,etc |
|
|
Decotation |
lining of luggage bags,handicraft , festival decoration, automobile interior,roof lining fabric ,etc |
Agriculture |
Geotextile ,protection material ,grow bags , felt pots, filter bag,etc
|
100% PP Non-Woven Geotextile sheet for Reinforcement Specification:
No. |
Item |
Specification |
Note |
||||||||||
Mass per square meter g/m2 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
800 |
||
1 |
Weight Variation % |
-8 |
-8 |
-8 |
-8 |
-7 |
-7 |
-7 |
-7 |
-6 |
-6 |
-6 |
|
2 |
Thickness mm ≥ |
0.9 |
1.3 |
1.7 |
2.1 |
2.4 |
2.7 |
3.0 |
3.3 |
3.6 |
4.1 |
5.0 |
|
3 |
Width Variation % |
-0.5 |
|||||||||||
4 |
Breaking Strength KN/m |
2.5 |
4.5 |
6.5 |
8.0 |
9.5 |
11.0 |
12.5 |
14.0 |
16.0 |
19.0 |
25.0 |
MD and CD |
5 |
Elongation at Break % |
25 ~ 100 |
|||||||||||
6 |
CBR Mullen Burst Strength KN≥ |
0.3 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
2.7 |
3.2 |
4.0 |
|
7 |
Sieve Size 090 mm |
0.07 ~ 0.2 |
|
||||||||||
8 |
Vertical Permeability Coefficient cm/s |
k× (0.1 ~ 0.001) |
k=1.0-9.9 |
||||||||||
9 |
Tear Strength KN ≥ |
0.08 |
0.12 |
0.16 |
0.20 |
0.24 |
0.28 |
0.33 |
0.38 |
0.42 |
0.46 |
0.6 |
MD and CD |
Needle punched geotextile after treatment method | |||||||||||||
