HDPE Welding Machine
- 10000 Square Meter / Square Meters per Month
- qingdao
- T/T Credit Card PayPal
- Huitai hot selling OEM auto hot plate sheet board plastic pallet welding machine
- Auto Plastic Pallet sheet plate board Hot Plate Welding Machine for pallet
- automatic PP board edge sealing machine, coroplast sheet layer pads welding machine
- Huitai plastic capillary tube welding machine plastic welders pvc plastic hot plate welding machine bonding
- PP Membrane Hot Filter Plate Chamber Filter Press Plate and Frame Filter Plate welding machine
- Plastic PP Membrane Hot Chamber Filter Press vertical Frame Filter Plate welding machine plate-and-frame belt
Product Details
Place of Origin: | Shandong, China | Brand Name: | starring | Model Number: | LST810 |
Voltage: | 220 | Power: | 800w | Frequency: | 0.5-5 m/ min |
Weight: | 5kg | Usage: | geomembrane welding |
Product Description
Specifications
HDPE Welding MachineHeating temperature : 0-450 degree
Thickness of material be welded: 0.2-1.5mm
HDPE Welding Machine
HDPE Welding Machine Parameter Index:
Item no. : | LST900 |
Voltage: | 220V |
Frequency: | 50/60Hz |
Power: | 1800W |
Welding speed: | 0.5-5m/min |
Heating temperature: | 0-450°C |
Thickness of material: | 1.0mm-3.0mm |
Overlap width: | 12cm |
Welding width: | 15mm×2, interior cavity 15mm |
Seam strength: | ≥85% base material |
Weight: | 13kgs |
Insulation class: | class II |
1). Output Voltage220VFrequency50Hz
2). Power1800W
3). Welding speed0.4~5.5m/min
4). The temperature of Heating up0~450
5).The thickness of welding material1mm~4mm(Single membrane thickness)
6).Welding width14mm×2Interior Cavity :16mm
7).Welding intention≥85%Maternity materialResistance to the direction of cutting
The control of this series of welding machine adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation; speed control adopts PWM automatic voltage and speed regulation circuit, driven by DC servo motor, with great output torque and the operating is stable. It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load. Also this series of welding machine is stable in performance despite of external temperature and voltage variation.

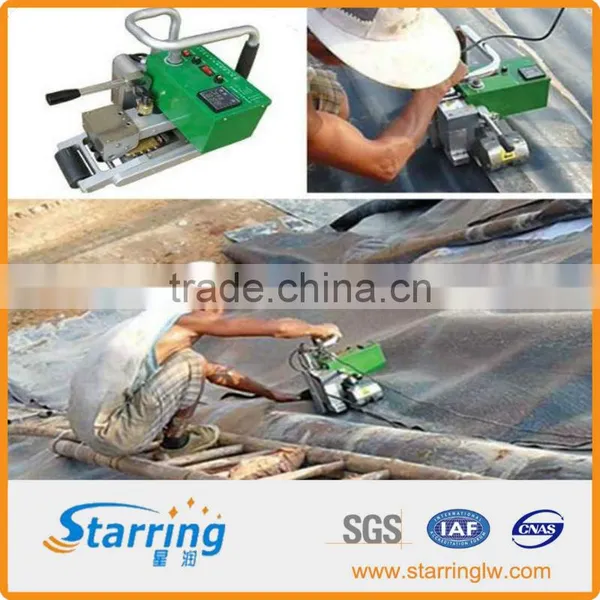

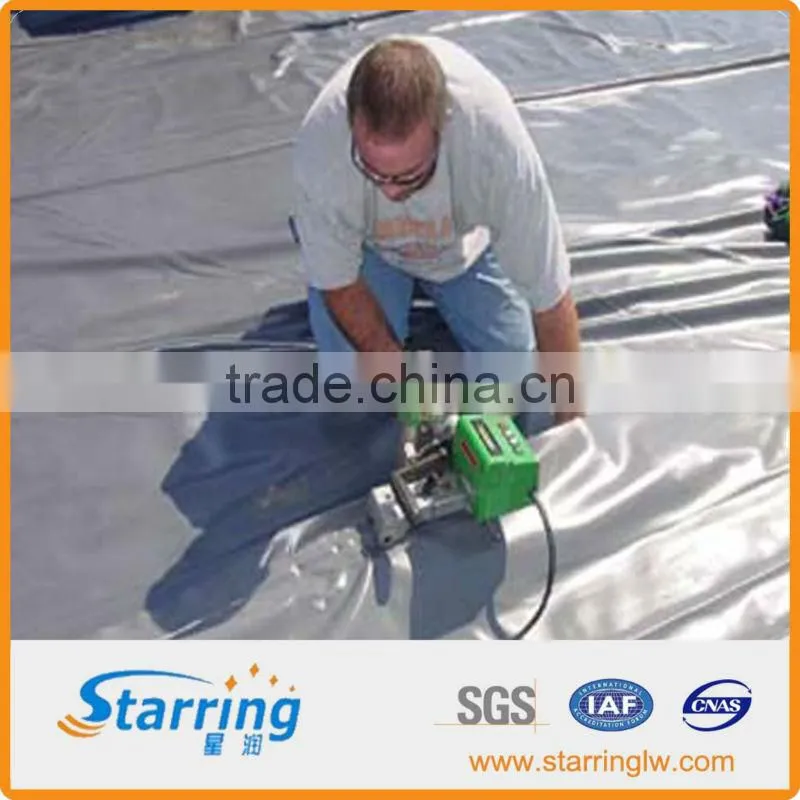

It can weld geomembrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and the like.
