Specifications
PP/PET Geotextile filter fabricMaterial:PP/PET
Width:1-6m
Weight:100-1200gsm
anti-aging,anti-acid and alkal

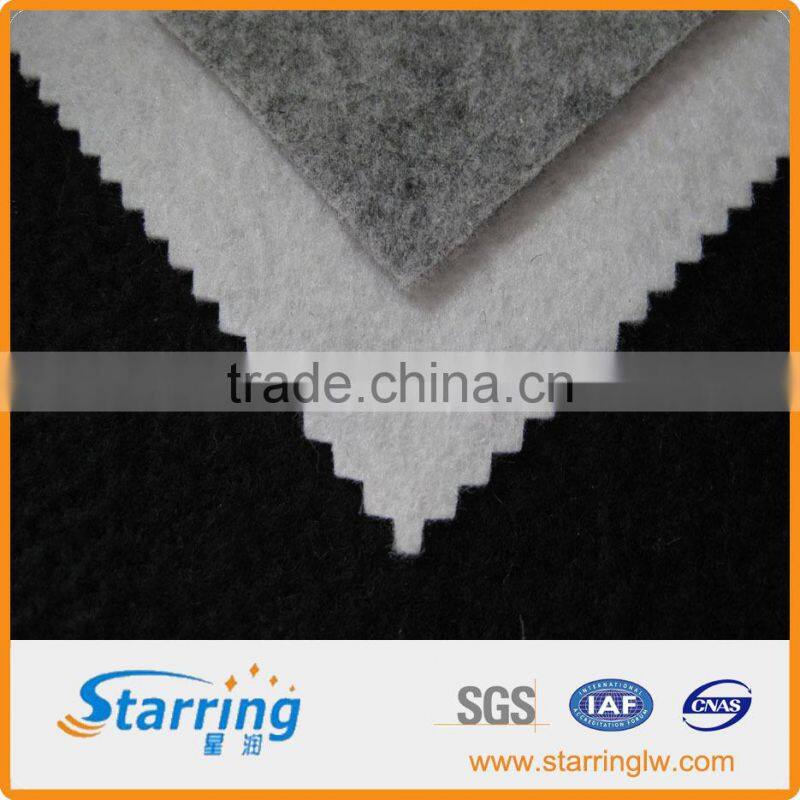

PP/PET Geotextile filter fabric
PP/PET Geotextile filter fabric Introduction:
Geotextile Non-Woven sheet China can be made of polypropylene (PP) or polyester(PET), The weight is available from 100G/M2 to 1200G/M2 and the width from 1m to 8m, Two kinds of processing technical to select: Needle punched and thermally bonded. Long fiber or short fiber. All kinds of colors are available. Our annual production ability is 20 million square meters.
Geotextile Non-Woven sheet China is widely known as earthwork material and industry fabric, used in the areas of railway, highway, water conservancy, dam, tunnel, subway, environment protection and so on.
PP/PET Geotextile filter fabric Feature:
- Engineered to provide high strength and high elongation at break to ensure excellent resistance to damage during construction.
- Manufactured from high tenacity UV stabilised virgin polypropylene or polyester fibers which have been heavily drawn to ensure excellent long term durability in all soil types.
- Manufactured using a randomly orientated web to proide completely isotropic properties,ensuring that high strength is not limited to a single direction.
- Excellent uniformity with high permeability and low pore size for soil filtration.
- Supplied to a maximum width of 6.5mts,ensuring minimum waste over large construction areas.
- 100% polypropylene or polyester staple fibers ,needle punched and random network formation.
- UV and rot resistant and biological degradation resistant
PP/PET Geotextile filter fabric
Application:

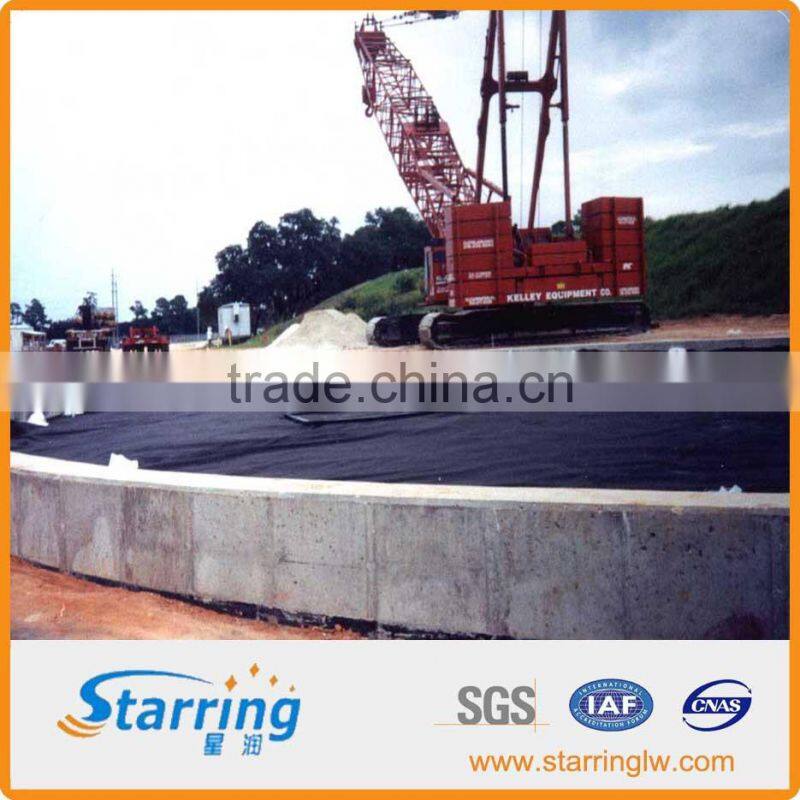

Used in the project of highway, railway, dam and reclamation for anti-filtering, isolating and water drainage, maintenance.
Decoration: wall decoration cloth, floor leather base cloth and electrostatic flocking fabric
Agriculture: agricultural harvest protective cloth, crop and plant protection, weed strip
Waterproof material: high-grade breathable waterproof fabric
Industrial applications: filter materials, insulation materials, electrical appliances, reinforcement materials and supporting materials
Car decoration materials
hotselling Geotextile fabric specification:
2-8m Width, 50-100m length (or according to client's requirements
PP/PET Geotextile filter fabric Parameter Index:
| Density | Thickness | Breaking Strength | Elongation of Fracture | Tearing Strength | CBR Bursting Strength | Vertical Penetration Parameter | Equivalent Aperture |
| g/m2 | mm | KN/m | % | KN | KN | cm/s | O 95 mm |
| 100 | 0.9 | 2.5 | 25 ~ 100 | 0.08 | 0.3 | K x (10 -1 ~ 10 -3) (K = 1.0 ~ 9.9) | 0.07 ~ 0.2 |
| 150 | 1.3 | 4.5 | 0.12 | 0.6 | |||
| 200 | 1.7 | 6.5 | 0.16 | 0.9 | |||
| 250 | 2.1 | 8.0 | 0.20 | 1.2 | |||
| 300 | 2.4 | 9.5 | 0.24 | 1.5 | |||
| 350 | 2.7 | 11.0 | 0.28 | 1.8 | |||
| 400 | 3.0 | 12.5 | 0.33 | 2.1 | |||
| 450 | 3.3 | 14.0 | 0.38 | 2.4 | |||
| 500 | 3.6 | 16.0 | 0.42 | 2.7 | |||
| 600 | 4.1 | 19.0 | 0.46 | 3.2 | |||
| 800 | 5.0 | 25.0 | 0.60 | 4.0 |
