Specifications
HDPE Geocell for Access Routes / Paths/RoadDistance of welding:330-550mm
Stretched size:4x5-6x7m
Erosion resistance
flexib

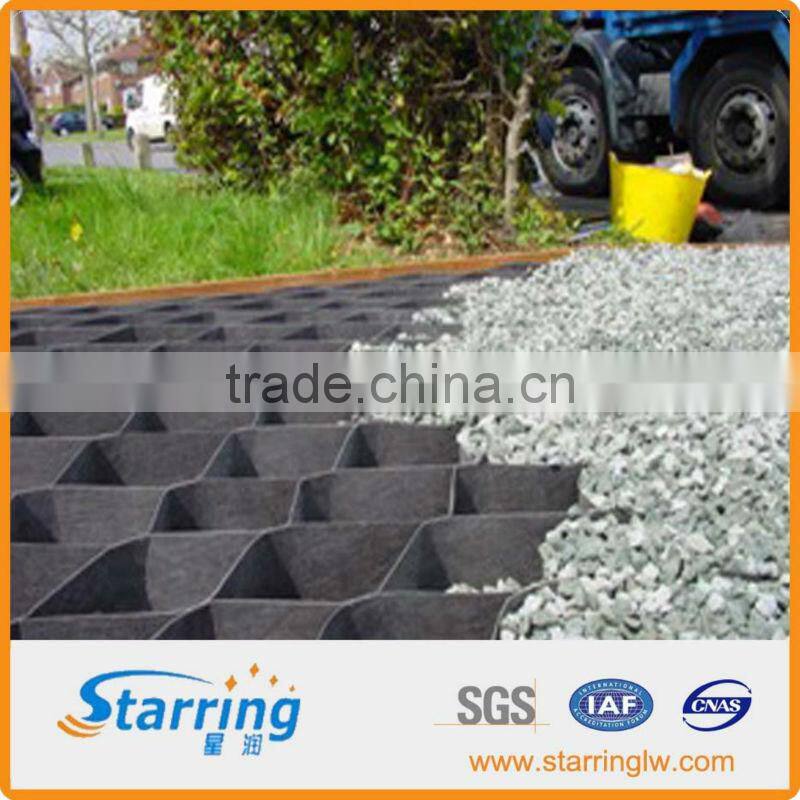

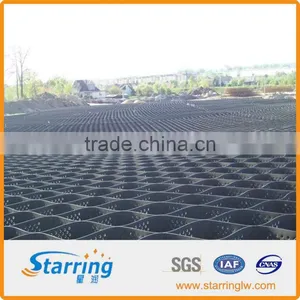

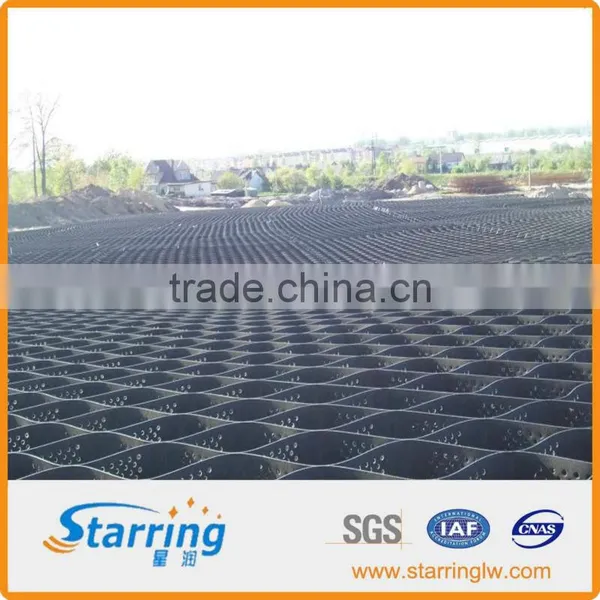

HDPE Geocell for Access Routes / Paths/Road
HDPE Geocell for Access Routes / Paths/Road description:
| Functions | Erosion control Root protection Slope stabilisation Soil reinforcement |
| Gradient suitability | Flat surfaces Moderate gradients Shallow gradients Steep gradients |
| Material | Polypropylene |
| stretched size (l x w) | 4x5-6x7m |
| Panel weight (kg) | 20kg |
Eroded, unstable road verges present a considerable risk to road users. Inexperienced drivers, heavy goods vehicles and motorbike riders are particularly at risk. The disturbing statistics of accidents caused by evasive manoeuvres on badly maintained roadsides are only too clear.
The dangers are as great around bends as they are on straight stretches.
To avoid continuous deterioration i.e. pot-holes and ruts alongside the road, it is vital to stabilise these areas according to their usage. The building and maintaining of roadsides is often done in a traditional, costly and time-consuming way. This is no longer necessary!
By using the flexible bonding system of Geocells together with appropriate backfill, the vertical forces are converted into horizontal forces resulting in a highly stable system.
This horizontal weight distribution minimizes the weight impact on the lower stratum thus obviating the need for a traditional foundation. This transition of force is not possible with static systems for example grass blocks.
HDPE Geocell for Access Routes / Paths/Road Application
1.Fix railway ground.
2.Fix weak ground of roads.
3.Block loading capacity.
4.Treat river way of shallow water.
5.Act as support in pipeline and sewer.
6.Act as comprehensive block stopping land sliding and bearing loading capacity.
7.Act as independent wall, dock and break-water.
8.Treat desert, beach, riverbed and bank
HDPE Geocell for Access Routes / Paths/Road Parameter:
Item Model | Height (mm) | Welding distance (mm) | Sheet thickness (mm)
| Tensile yield strength of the cell (MPa) | Seam peel strength (N/10cm) | |
smooth | textured | |||||
TGLG-50-400 | 50 | 400 | 1~1.1 | 1.4~1.5 | 20.0 | 1000 |
TGLG-100-400 | 100 | 400 | 1~1.1 | 1.4~1.5 | 20.0 | 1000 |
TGLG-150-400 | 150 | 400 | 1~1.1 | 1.4~1.5 | 20.0 | 1000 |
TGLG-200-400 | 200 | 400 | 1~1.1 | 1.4~1.5 | 20.0 | 1000 |
TGLG-75-330 | 75 | 330 | 1~1.1 | 1.4~1.5 | 20.0 | 1000 |
TGLG-100-330 | 100 | 300 | 1~1.1 | 1.4~1.5 | 20.0 | 1000 |
TGLG-150-330 | 150 | 330 | 1~1.1 | 1.4~1.5 | 20.0 | 1000 |
