Specifications
Geocell for soft soil foundation and protectiondistance of welding:330-550mm
stretched size:4mx5m-6mx7m
tensile strenght
Geocell for soft foundation and protection

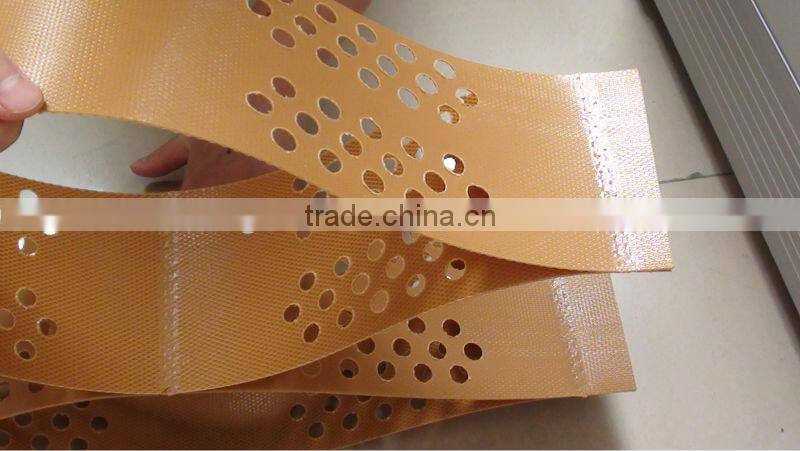

Geocell for soft soil foundation and protection is a relatively shallow cellular confinement system which is used to combat erosion on slopes up to 1:1. The geocell is fabricated using a geotextile so it is permeable and allows water to flow between cells encouraging drainage and vegetation.
Geocell for soft soil foundation and protection properties
anti-aging
resisting acid and alkaline
homogenous structure
the best sidewise restriction
soil-fixation
concenient and fast construction
Geocell for soft soil foundation and protection usage:
Cut or fill embankments
Dams or spillways
Revetments
Abutment protection
Geomembrane protection
Soil-nailing cover
Landfill capping
Geocell for soft soil foundation and protection Index
|
Item Model |
Height (mm) |
Welding distance (mm) |
Sheet thickness (mm) |
Tensile yield strength of the cell (MPa) |
Seam peel strength (N) |
|
smooth |
textured |
|||||
TGLG-50-400 |
50 |
400 |
1~1.1 |
1.4~1.5 |
20.0 |
500 |
TGLG-100-400 |
100 |
400 |
1~1.1 |
1.4~1.5 |
20.0 |
1000 |
TGLG-150-400 |
150 |
400 |
1~1.1 |
1.4~1.5 |
20.0 |
1500 |
TGLG-200-400 |
200 |
400 |
1~1.1 |
1.4~1.5 |
20.0 |
2000 |
TGLG-75-330 |
75 |
330 |
1~1.1 |
1.4~1.5 |
20.0 |
750 |
TGLG-100-330 |
100 |
330 |
1~1.1 |
1.4~1.5 |
20.0 |
1000 |
TGLG-150-330 |
150 |
330 |
1~1.1 |
1.4~1.5 |
20.0 |
1500 |
|
Notes:(1)welding distance can be made: 330mm, 400mm, 500mm,550mm or according to the demands (2)The special spec or size can be manufactured according to the demands of the contract | ||||||
Pls feel free to contact us:
