Home > Construction & Decoration > Geosynthetics Products > Geocell > HDPE Plastic Geocell Used in Roadbed Reinforcement
US$ 5.93 - 5.93
MOQ: 8000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hongxiang
Model Number:
GS-150-340
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Polyester Short Fiber Needle Punched Non Woven Geotextile Used in Road ConstructionUS$ 0.47 - 2.4MOQ: 5000 Square Meters -
Polyester Fiberglass Geotextile Used in Road ConstructionUS$ 1.11 - 1.3MOQ: 5000 Square Meters
-
Fiberglass-Polyester Paving Mat Used in Road ConstructionUS$ 0.59 - 0.825MOQ: 5000 Square Meters
-
Geomembrane for HighwayUS$ 1.25 - 2.05MOQ: 1000 Square Meters
-
Steel-plastic Composite GeogridUS$ 1 - 100MOQ: 5000 Square Meters
Place of Origin
Shandong, China
Brand Name
Hongxiang
Model Number
GS-150-340
Material
HDPE
Product Description
Description of HDPE plastic geocell used in roadbed reinforcement
Geocell is made of HDPE reinforced sheet material, A three-dimensional mesh cell chamber formed by welding of high strength.Generally by the ultrasonic pin type welded together.Due to the need of engineering, some holes on the diaphragm.
specification
Specification of HDPE plastic geocell used in roadbed reinforcement
1.TGLG5 TGLG8 TGLG10 TGLG15 TGLG20(CM)
2.Stretch size :4mx5m or 6m x7m or at your request.

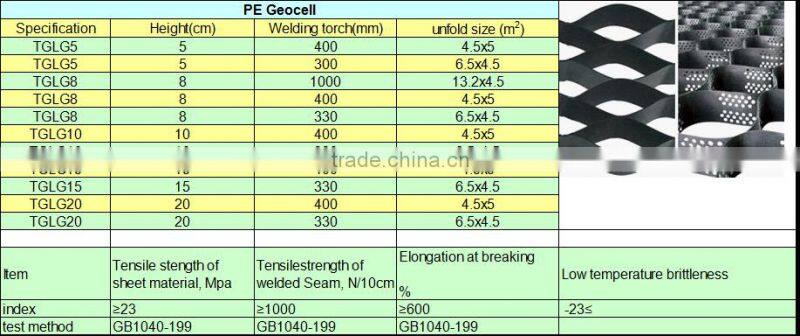

Technical specification of geocell
property
Property of HDPE plastic geocell used in roadbed reinforcement
1. It has retractable, contractible fold when transportation, it can be tensioned reticulated when construction , fill dirt, gravel, concrete and other loose material , constitute a powerful lateral limits and great structure stiffness .
2. Light weight, wear resistance, chemical stability, light oxygen aging, acid, suitable for different soil and desert soil conditions.
3. Higher lateral restrictions and non-slip, anti-deformation, effectively enhance the load bearing capacity and decentralized subgrade.
4. Geocell change the height, distance and other weld geometries to meet different project needs.
5. Connection is convenient, fast construction speed

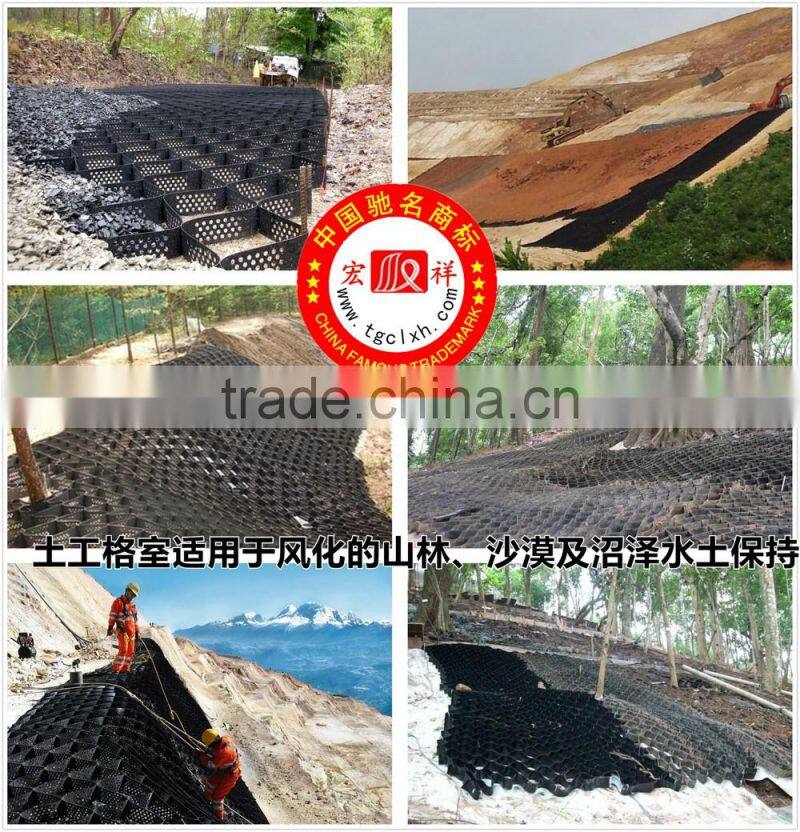

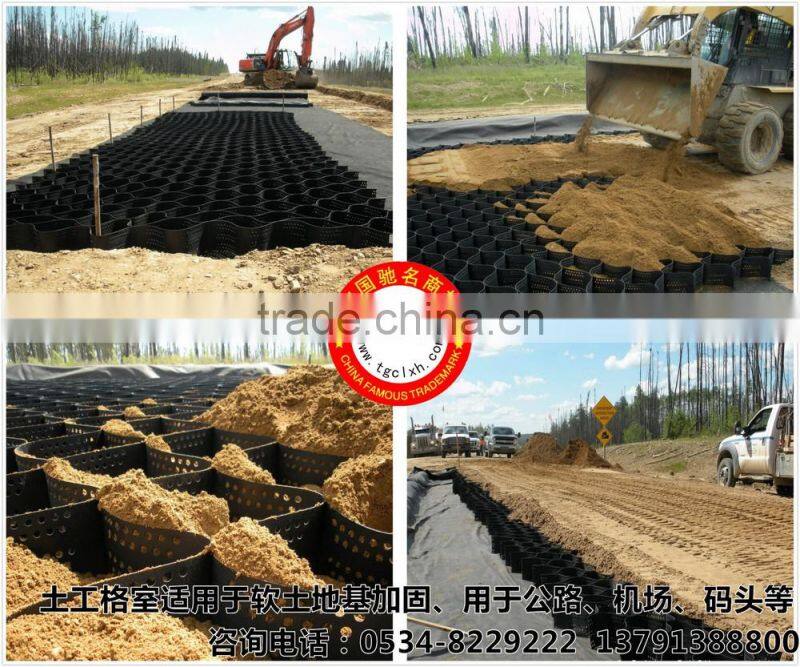

Application
Application of HDPE plastic geocell used in roadbed reinforcement
1. processing half fill Semi roadbed
build up the embankment on the ground on the slopes of the natural slope ACTS in 1:5, supporting subsoil should dig the steps, The step width shall be less than 1 m, when building or rebuilding roads widened by installments, Convergence between the new and old roadbed fill slope ,should dig the step, high grade highway width is 2 m, laid large geocell in each of the steps horizontally, using the large geocell of their own facade confining reinforcement effect, better solve the problem of uneven settlement
2. subgrade in wind drift sand region
Sand subgrade should be given priority to with low embankment, region filling height not less than 0.3 m. generally due to its low subgrade, sand subgrade construction in professional requirements and heavy load, adopting large chamber loose packing confining effect, can be in limited the height of the roadbed with high stiffness and strength, to inherit the load stress of large vehicles.
3. Reinforced back subgrade soil
Using large geocell can better achieve the goal of abutment back reinforced , can generate enough friction between the geocell and packing . and effectively reduce roadbed uneven subsidence, finally can effectively relieve the abutment jump car "disease early impact damage of bridge deck.
4. subgrade in permafrost region
In permafrost regions fill roadbed construction, should reach a minimum filling height in order to prevent or cause a frozen layer ceiling Frothing decreased, resulting in an excess of embankment settlement occurs. Geocell unique overall unconfined facades reinforced effect and effectively implemented, can ensure a minimum filling height in some special area to the maximum extent, and to fill a high-quality strength and stiffness.
5. The collapsibility loess roadbed treatment
When the highway and the highway collapse loess and loess lot better compression by wet, or foundation bearing capacity is lower than the high embankment to allow third-party vehicle load and weight of pressure embankment, subgrade bearing capacity requirements should also for processing, then the superiority of Geocell on manifest is no doubt.
Packaging & Shipping
Packing & Shipping
Company Information
Hongxiang New Geo-material Co., Ltd Information
Our Services
Our Services
Why Choose Hongxiang New Geo-material?
Questions and Answers:
Q: Can you accept sample order?
A: Yes, we accept samples with little and reasonable charge.
Q: What is your MOQ?
A: Normally, 5000 m2 per order.
Q: What is your delivery time? Can we short it in 7 days or less?
A: 7 days for sample, 20-25 days for mass production.
Q: What is your payment terms?
A: T/T (Bank surcharge 50$/order), Paypal (3% surcharge), Western Union or 20% deposit 80% L/C.
Q: How can I get my order?How can I know you sent the goods.
A: We will send you the goods by UPS, DHL, Fedex, Oversea Shipment or other forwarder, all with tracking number or B/L.
Q:How about your quality?
A: Try a small order, you will have your own judgment!
Contact information
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
1997
Factory Size
Above 100,000 square meters
Total Employees
Above 1000 People
