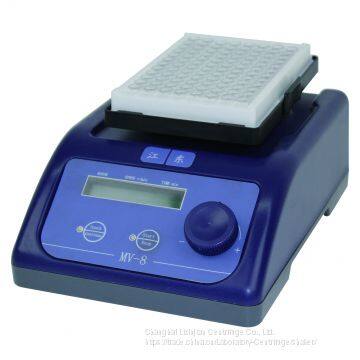

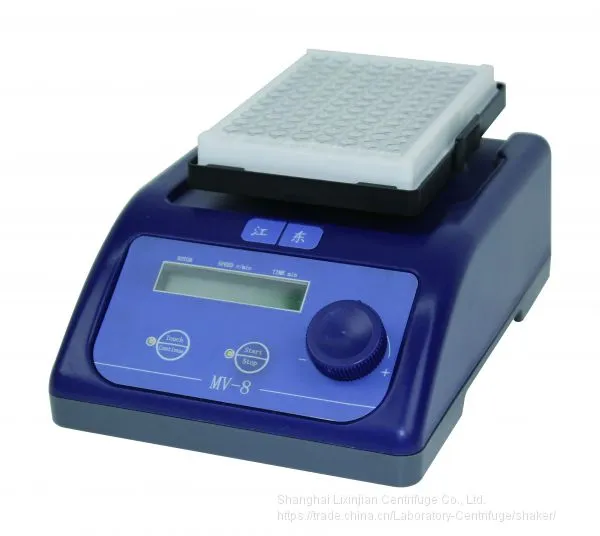

Vortex Mixer with Orbital 4.5mm Shaking Movement, 200-3,000rpm Sensor recognition Automatically (MV8)
Quick Detail:
Model |
MV-8 |
Speed Range [rpm] |
200-3000 rpm/min |
Max. Load(with fixter) [kg] |
1kg |
Circumference diameter |
4.5mm |
Timer, Time range (min) |
With timing and countdown function, 1-99h59min |
Speed, time setting & display |
LCD display |
Fixture Recognition |
Automatic fixtures recognition and speed limit. Safe and simple operation. |
Sensor recognition |
Automatic identification of standard gasket inching mode without external force |
Oscillation mode |
Circular motion |
Mode of operation |
Continuous / Inching |
Temperature Permissible ambient [ ℃ ] |
5-40 |
Motor type |
DC Brushless Motor, direct-drive |
Voltage |
100-240V 50/60HZ (general) |
Humidity Permissible ambient |
80% |
Power [W] |
30 |
Input [W] |
28 |
Output [W] |
15 |
Dimension [D×W×H mm] |
200×140×70 |
Net. Weight [kg] |
1.5kg |
Protection standard(EN 60529) |
IP21 |
Features:
* Quiet and compact stable design
* Different types of fixture can be installed, recognition by sensor device. Adapters available for tubes etc. * (sold separately).
* Both the function of fixtures and Sensor recognition automatically.
* With the functions of safety speed protection. Speed limit, not need other power.
* LCD display the time and speed, adjustment, easy and clearly for reading and setting
* DC Brushless Motor drive, quiet, and maintenance free
* Low gravity center, Good stability
* Used for the oscillation of regular test tubes, centrifugal tubes, beaker and microplates
Order Information
02014MV08 Vortex Mixer MV-8, Variable speed, 220v, 50 HZ
(Accessories):
Serial Number |
Designation and Model |
Description |
02014MV08 |
Vortex Mixer MV4 main engine |
Main engine, Time and speed are LCD display |
02014V08110 |
Standard attachment V1.1 |
For test tubes and small vessels |
02014V08130 |
Microplate attachment V1.3 |
For 96 well microplate and square attachment. RPM range: 200-1500 |
02014V08140 |
Flasks attachment V1.4 |
For triangle flask with a test tube. RPM range: 200-3000 |
02014V08141 |
Foam Rubber insert V1.41 |
Foam flasks and big test tubes, requires Universal Adapter |
02014V08131 |
Test tubes (centrifugal tubes) adapter V1.31 |
Foam Test Tube Insert for 30 test tubes Φ10mm, for use with Universal Adapter |
02014V08132 |
Test tubes (centrifugal tubes) adapter V1.32 |
Foam Test Tube Insert for 16 test tubes Φ12mm, for use with Universal Adapter |
02014V08133 |
Test tubes (centrifugal tubes) adapter V1.33 |
Foam Test Tube Insert for 12 test tubes Φ16mm, for use with Universal Adapter |
02014V08134 |
Test tubes (centrifugal tubes) adapter V1.34 |
Foam Test Tube Insert for 4 test tubes Φ29mm, for use with Universal Adapter |
Package:
Main body: |
1pc |
Standard gasket V1.1: |
1pc |
Power adapter: |
1pc |
Manual: |
1 pc |
