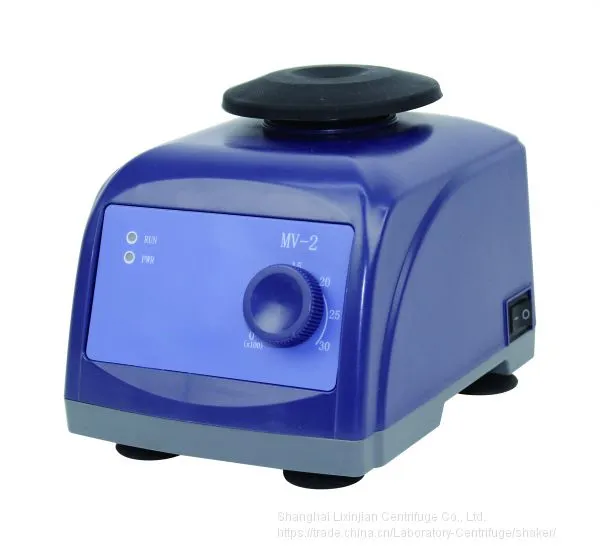

ortex Mixer with Orbital 4.5mm Shaking Movement, 0-2,800rpm Simulation Display Continuous / Inching (MV2),
Quick Detail:
Model | MV-2 |
Speed Range [rpm] | 0-2800 rpm/min |
Max. Load(with fixter) [kg] | 1kg |
Circumference diameter | 4.5mm |
Speed setting & display | Simulation setup/scale display |
Oscillation mode | Circular motion |
Mode of operation | Continuous / Inching |
Temperature Permissible ambient [ ℃ ] | 5-40 |
Input [W] | 45 |
Output [W] | 20 |
Dimension [D×W×H mm] | 155×125×110 |
Net. Weight [kg] | 4.5 kg |
Humidity Permissible ambient | 80% |
Protection standard(EN 60529) | IP21 |
Voltage | AC220V±10% 50HZ |
Power[W] | 30 |
Specifications
1. Small mixer with simple, compact and beautifully designs
2. Adjustable and stationary blending machine
3. Widely used in biochemistry laboratory, chemical laboratory, hospital, radiation immunoassay, pharmaceutical and other routine laboratory equipment.
4. Used for sample tissue, cells, bacteria liquid, such as the chemical reagent oscillation, blending and mixing.
5. Different types of fixture can be installed
Features:
* High quality, competitive price, Strong and durable
* For different test tube, the centrifugal tube, such as enzyme label plate container of mix, achieve high efficiency spiral effect.
* New type spiral vortex mixer, suitable for a short period of time (at) or continuous work for a long time
* Wide speed range, 0 to 2800 RPM/min, motor stepless speed regulation
* Balance of eccentric block design, the amplitude of 4.5 mm, shock effect is perfect.
* Brushless motor drive directly. It is durable, quiet and maintenance free.
Package:
Main body:1pc
Standard gasket V1.1:1pc
Power adapter:1pc
Instruction:1pc
Accessories
Order Information:
Serial Number | Designation and Model | Description |
Vortex Mixer MV2 main engine | Main engine, simulative speed display | |
Standard attachment V1.1 | For test tubes and small vessels <Φ65mm. RPM range: 0-2800 | |
Microtiter attachment V1.3 | For microtiter plate and square attachment. RPM range: 200-1500 | |
Flasks attachment V1.4 | For triangle flask with a test tube. RPM range: 0-3000Use with V1.41. RPM range: 0-2800 | |
Rubber foam insert V1.41 | Use with V1.4. For erlenmeyer flasks and big test tubes | |
Test tubes (centrifugal tubes) adaptor V1.31 | For 30 test tubes Φ10mm. Use with V1.3 attachment | |
Test tubes (centrifugal tubes) adaptor V1.32 | For 16 test tubes Φ12mm. Use with V1.3 attachment | |
Test tubes (centrifugal tubes) adaptor V1.33 | For 12 test tubes Φ16mm. Use with V1.3 attachment | |
Test tubes (centrifugal tubes) adaptor V1.34 | For 4 test tubes Φ29 mm. Use with V1.3 attachment |
