MiniSpin Microcentrifuge Range

Centrifuges

Dependable, Cost Effective Veterinary Centrifuges

Chosen for their everyday robustness, ease of use and reliable affordability, the veterinary centrifuges gives you a safe, simple and cost effective solution to your centrifugation and separation needs.

From the straightforward single-speed MiniSpin Next Generation Microcentrifuge with its TG10MX interchangeable haematocrit and microtube heads, to the twin-speed twith the flexibility of 8, 16 and 24 places, JIANGDONG's expertly chosen centrifuge range ensures accurate processing of your blood, urine and microchemistry diagnostics.

CombiSpin Veterinary Centrifuge

INTRODUCTION

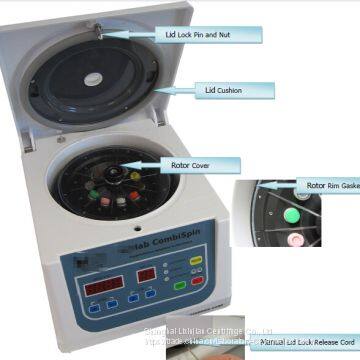

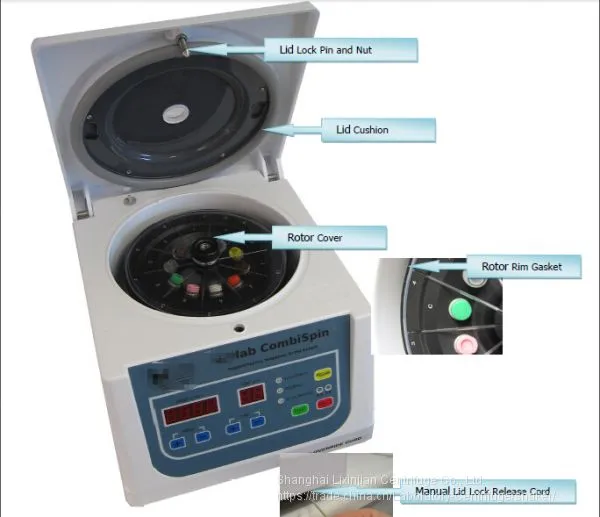

The Vetlab CombiSpin Centrifuge is ergonomically designed for centrifuging relatively small volumes of biological fluids at speeds of up to 10,000 rpm. It is particularly suited to Veterinary Practice laboratories.

Multi-Combination Rotor

The CombiSpin has been designed for fast, simple, intuitive and safe operation. The single rotor can hold both microhaematocrit capillaries and larger plastic tubes up to 2ml in volume therefore avoiding the need to change rotors. Three pre-set optimised speed/time programs are available for serum/plasma, microhaematocrits, and urine sediments and accessed by one click of a key. However, both speed and time can each be simply changed incrementally in case different settings are required for 'special' samples.

Plastic tubes of up to 2ml in volume are placed in angled tube holders in the rotor and microhaematocrit glass capillaries are fitted horizontally in grooves on top of the rotor.

A screw on rotor lid is provided for use when running microhaematocrits (it is not needed when running plastic tubes on their own). The CombiSpin has a welded steel outer casing and an inner casing to protect the motor and enclose the rotor and an automatic lid lock ensures that the lid cannot be opened during running or braking.
The Vetlab CombiSpin Veterinary Centrifuge comes with a full one year warranty from the date of purchase (including electrical components).

All prices exclude VAT

Special Features

The combination rotor allows both screw-capped PLASTIC tubes and glass microhaematocrit/PCV tubes to be processed without the need to change the rotor.

• Brushless motor for low noise, long life and virtually no maintenance

• Automatic lid lock when motor is running

• Automatic braking

• CE Certified

Technical Features

• Speed variable digitally in increments of 100 rpm up to max. 9,999 rpm.

• Time variable digitally in increments of 1 minute up to max. 99 mins

• 3 fixed speed/time programs:
  Serum/plasma 9999 rpm / 2 mins
  Microhaematocrit 9999 rpm / 5 mins
  Urine sediment 1500 rpm / 2 mins

All the above programs can be altered if required manually once selected.

Rotor Capacity

• Plastic screw cap blood tubes up to 2ml x 10

• Plastic 1.5ml Microcentrifuge tubes for urine

• Microhaematocrit glass tubes 75mm length x 10

CombiSpin Technical Specifications

Environment in Use

The CombiSpin Veterinary Centrifuge is for indoor use only and must be in a clean, dry and well ventilated area. It should be placed on a stable flat work surface.

Relative Humidity: ≤80%

Temperature Range in Use:+5°C to + 40°C

Power: AC220-230V 50/60HZ

Fuse:3A 230V

Timer: 1-99 minutes

Max. Speed: 9999 RPM

Max. RCF:9500xg

CombiSpin Rotor Volume: 10 x 2ml plastic tubes and 10 glass capillary tubes (75mm in length)

3 Fixed programs
Serum/Plasma 9999 rpm 2 mins
PCV (MHct) 9999 rpm 5 mins
Urine Sediment 1500 rpm 2 mins

CombiSpin Noise (at Max RPM):≤65dB (A)

CombiSpin Unit Dimensions: 310mm (L) 270mm (W) 210mm (H)

CombiSpin Net Weight: 9 kg
