Portable Color Doppler Ultrasound Scanner System

Portable Color Doppler Ultrasound Scanner System thumbnail-1
Portable Color Doppler Ultrasound Scanner System thumbnail-2
Portable Color Doppler Ultrasound Scanner System thumbnail-3
Portable Color Doppler Ultrasound Scanner System thumbnail-4
Portable Color Doppler Ultrasound Scanner System thumbnail-5
Portable Color Doppler Ultrasound Scanner System photo-1
Portable Color Doppler Ultrasound Scanner System photo-2
Portable Color Doppler Ultrasound Scanner System photo-3
Portable Color Doppler Ultrasound Scanner System photo-4
Portable Color Doppler Ultrasound Scanner System photo-5
US$ 5076 - 8000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Forever Medical
Place of Origin:
China
Model Number:
YJ-U60plus
Contact Supplier Request Quote Chat Now
Zhengzhou Medbes International Trading CO., LTD.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Forever Medical
Place of Origin China
Model Number YJ-U60plus
Type Doppler Ultrasound Equipment
------------------
Judy / Ms. Xing
Sales Manager
Henan Forever Medical CO., LTD.
Room 806,Wanda Center,jinshui District,Zhengzhou,China.
Whatsapp/Wechat/Skype/Mob:+86 15736746522
Email:judyfmco@gmail.com



Full Digital Color Doppler Ultrasound Diagnostic System




AppearanceSmart, compact  and clamshell design12 inch LED monitorBacklit operation panel, 8TGCFloating keyboardTwo active probe connectorsTwo probe holders
Probe
Transducer Types3.5Mhz convex probe (2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz)7.5Mhz linear probe (6.0/ 6.5/ 7.5/ 10.0/ 12.0Mhz)3.5Mhz micro convex probe (2.0/ 2.5/ 3.5/4.5/ 5.0Mhz)6.5Mhz transvaginal probe  (5.0/ 6.0/ 6.5/ 7.5/ 9.0Mhz)3.5Mhz phased array probe (2.1/ 3.0/ 3.5/ 4.0/ 5.0Mhz)4D volume probe (2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz)ApplicationsAbdomen, Obstetrics, Gynecology, Pediatrics,Small parts, Artery,  Superficial organ, Orthopedics, Cardiology, Musculoskeletal, Vascular, etcFunctionAuto Image Optimization Tissue Harmonic imagingiClear (Speckle Noise Reduction)iBeam (Spatial Compound Image)iZoom PIHI (Pulse-Inverse Harmonics Imaging)SA (Synthetic Aperture ultrasonic Imaging)Panoramic Image  (Option)Trapezoid Image (Option)Continuous Wave Doppler(Option)
Display modeB, B|B,4B, B|M,M,B|D,PW,B|PW, CFDuplex/Triplex modeCW (option)4D mode (option)
ZoomReal time zooming- 10 Steps:  ×1.0, ×2.0, ×3.0, ×4.0, ×5.0, ×6.0, ×7.0, ×8.0, ×9.0, ×10.0Selectable zooming position
FocusContinuous dynamic focus1~16 selectable transmit focusAcoustic lens focus1, 2, 3, 4 focus
Memory
 Cine‐memoryB‐modeM‐mode SSD (Solid State Disk) 64G


Imaging Processing
B mode8‐step TGC slide pots- Gain: 0~100%
- Depth: 1.6~30cmFrequency: 5 stepsDynamic range adjustable: 0~150dBEdge enhancement:0~7Persistence:0~7Chroma:0~6Grayscale:0~16- Power: 0~100%
- Noise reduction: 0-6iclear: off, 1, 2, 3, 4
M mode
- Gain: 0~100%Sweep speed: 4 steps- Maps: 0~16Chroma:0~6
C mode
- Gain: 0~100%Pulse waveWall filter: 4 stepsColor Maps: 0~7Package size:  8~15Color persistence: 0~7Threshold: 0-3Base line: 0-6Line density: Low and highSpatial filter: 0-3
PW mode
- Gain: 0~100%Frequency: 5 stepsPseudo color:0~6PRFd:1.0~6KHzBasic line: 7 stepsWall filter: 7 steps- Spectrum mode: Refresh and Synchronize
 -   Sampling volume: 0.5-48mm

Measurement & Calculation
Measurement
B mode (General) DistanceTrace LengthEllipse (area)Trace(area)AngleVolume
PW modeHR (heart rate)DistanceVelocityTime
Calculation
AbdomenLiverGallbladderPancreasSpleen UrologyKidneyUreterBladderAfter the urine bladderProstate GynecologyUterusCervixOvaryFollicle

Early Obstetrics GSBPDCRLNT…
Later ObstetricsBPDHCACOFDFLTAD...
Small partsThyroidTestes

MusculoskeletalHip
Peripheral vascularIntimaArtery
CardiologyDistanceAngleVolumeRVWd LVDd RVDd LVPWdRVWsLVDsRVDsLVPWsRV/LVAO…

Physical Features
ConnectivityVideo out portDVI out portVGA out port2  USB portDICOM 3.0
DimensionGross dimension:510 mm X 500 mm X 330mmNet dimension:330mm X 150 mm X 380mm

WeightGross weight12 kgNet weight7 kg

Power RequirementsVoltage: AC 100V to 240V±10%Frequency: 50Hz±1HzRated Power: 250VA
Operation ConditionsAmbient temperature: 0ºCto +40ºCRelative humidity: 38%  to 85%Atmospheric Pressure: 700hPa to 1060hPa
Software & Accessories
Standard AccessoriesPower CableOperation ManualFuseSystem Recovery USB Built in Li-ion battery
Optional AccessoriesB/W or color Video printerLaserJet or inkjet printerTrolleyAluminum caseBiopsy guide

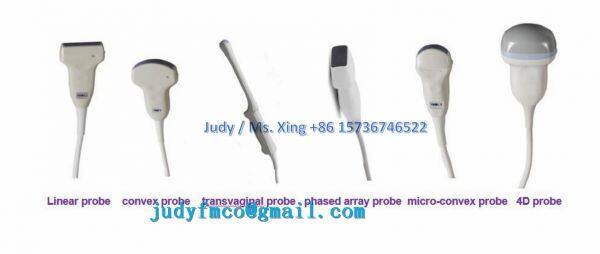

Probes information


Probes information





  Probe		                                                     5 Steps Multi-frequency
 3.5Mhz abdominal probe  2.0, 3.0, 3.5, 4.0, 5.5Mhz
 6.5Mhz transvaginal probe  5.0, 6.0, 6.5, 7.5, 9.0Mhz
 7.5Mhz linear probe  6.0, 6.5, 7.5, 10.0, 12.0Mhz
 3.5Mhz micro-convex probe  2.0,2.5, 3.5, 4.5 ,5.0Mhz
 3.0Mhz phased array probe  2.0, 3.0, 3.5, 4.0 , 5.5Mhz
