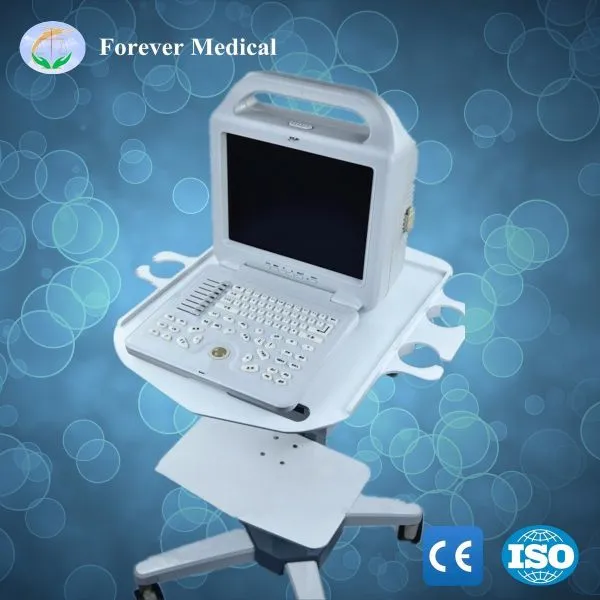

Introduction of Laptop Ultrasound Scanner YJ-U100 B：
Ultrasound Doppler Ultrasound Scanner can be used for abdomen, gynecology, obstetrics, cardiology, small parts, urology
It’s easy to carry and have good image quality.
.
Specifications of Laptop Ultrasound Scanner YJ-U100 B:
Monitor |
12 inch LCD |
Scanning Method |
Convex, Micro-convex, Linear, Trans-vaginal |
Frequency for Convex |
2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0 |
Display Mode |
B, B+B, B+M, M, 4B |
Gray Scale |
256 levels |
Power supply |
AC 110V-240V, 50HZ/60HZ |
Operation interface: |
English/Chinese switchable |
Probe connector |
2(USB/VGA/ ports; Video printer connector; ) |
Port |
USB 2.0, VGA, Video connector |
USB Function of image store |
More than Sixteen thousand images |
Scanning Depth |
240mm |
Detecting depth |
>=190mm |
Image magnification |
Image zoom (real-time status under B mode), up to 5 times (area); local amplification function which can be enlarged under the real-time and froze |
Image conversion |
up/down, left/right, black/white |
Max dynamic range |
>=100db |
Gamma |
4 gray scale γ transform function |
The geometric location accuracy |
Vertical Vertical resolution: Lateral resolution: |
Printer function |
Can connect laser printer and Video printer directly |
Comment |
Date, Name, Sex, Age, Hospital, Annotation |
Zooming |
*1.0, *1.2, *1.5, *2.0 |
Standard configuration: |
12 inches LCD main unit 1set; 60R/3.5MHZ Convex array probe 1pc; Power line 1pc; Ground line 1pc; Fuse 4 pc; User’s manual in English 1pc; Warranty card 1pc; |
|
Options:
|
L40/7.5MHZ Linear array probe; 20R/5.0MHZ Micro-Convex array probe; 6.5MHZ Transvaginal l probe; Mitisubishi Video Printer; Inside battery(3hours) |
Measurement: |
General menu: Distance, Area, Volume, Angle, Ellipse; Obstetrics menu: GS, CRL, BPD, HC, AC, FL, Fetus Weight; Heart menu: Distance, Time, Slope, Rhythm; |
Note |
Variety of focus selection and multi-stage dynamic focusing with 4 transmit focus; support to launch multi-focus combination; Built-in pseudo color processor, Pal-D and VGA video output, can connect external screen monitors, color monitors, VCRs, video image printer and other equipment. Fixed characters and real-time clock and calendar display; Software reset function; |
Features of Laptop Ultrasound Scanner YJ-U100 B：
1.Powerful measurement &calculation software packages
2.8-Segment TGC ABD Trackball adjustment
3.12 inch LCD monitor
4.Permanent function of image store: 32 images Back-lit keyboard
5.OB measurements: BPD, GS, CRL, FL, AC, HC, etc 2 probe connectors
6.Probe automatic identification
