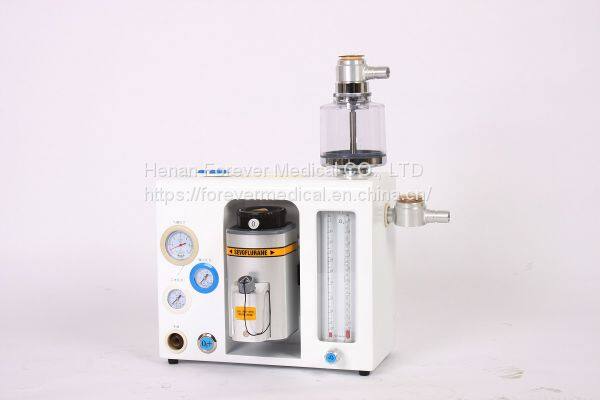

Portable Vet Anesthesia Machine

Main body

high-strength engineering plastic rack,light, beautiful and corrosion resistance

Scope of application

2 kg above animal

Gas source

O2, N2O: 0.28～0.6MPa

Flow meter

O2:0.05～1.0L/min 1.1～10L/min

(O2:0.05～10L/min    N2O:0.05～10L/min)

(O2,N2O linkage and N2O Stopper)

(When using nitrous oxide, oxygen concentration≥25%;When the oxygen pressure＜0.2Mpa,the flow of nitrous oxide would be cut off )

Flow rate of rapid oxygen supply

25～75L/min

Low oxygen pressure alarm

it will be alarmed when the oxygen pressure <

0.2MPa

Vaporizer

it has the function of automatic compensation based on pressure, temperature, and flow rate. The regulation range of evaporator concentration is 0～5vol%. Among Halothane, Enflurane,, Isoflurane and Sevoflurane, one can be chosen for application as required by the customer.

Respiratory circuit

work mode :all close, semi-close. semi-open

APL:≤12.5kPa

Respiratory Bellows

bellows for adults,bellows for children

tidal volume range:0～1500ml

Part of Ventilator

Display mode

High-definition 5.7” LCD screen display

Ventilation  mode

PPV, SIPPV, SIMV, MANUAL

(Manual monitoring of tidal volume, ventilation volume, respiratory rate)

Ventilation  function

PEEP, SIGH, IRV

Ventilation parameters

Tidal volume

50～1500ml

rate

2～99bpm

SIMV rate

2～20bpm

I:E

2:1～1:8

Inspiratory trigger pressure

-10～20cmH2O

PEEP

2～20 cmH2O

Pressure limit

10～60 cmH2O

SIGH

1.5 times the inspiratory time/100bpm

Parameters for

ventilation monitoring

Tidal volume. Minute Ventilation volume. IPPV rate. SIMV rate. total respiratory rate. I/E. peak pressure of airway . pressure - time waveform. flow rate - time waveform. PEEP. inspiratory trigger pressure,( average pressure, oxygen concentration, battery capacity)

Security Alarm System

Oxygen Concentration alarm

upper limit setting range      (21%～99%)

low limit setting range        (18%～80%)

Airway pressure alarm

upper limit setting range       5～60 cmH2O

low limit setting range        0～50 cmH2O

Minute ventilation volume alarm

upper limit setting range       1～20 L/min

low limit setting range         0～19 L/min

Tidal volume

upper limit setting range         10～1500ml

low limit setting range          0～1400ml

Sustained high-pressure alarm

it will give alarm when stress have consistently

been higher than 25 cmH2O

（Suffocation alarm, Power alarm, Intubation off alarm, battery voltage alarm）

Power

AC 220V 50Hz
