Anethesia Machine Anaesthetic Machine

Name: Anethesia Machine Anaesthetic Machine
Brand: Forever Medical
Price: USD $2200 - 6650 / Unit

FOB Price

USD $2200 - $6650 / Unit

1 Unit(Min.Order)

Supply Ability 3000 Unit / Units per Month
Port Shanghai
Payment Terms:T/T Other
Delivery Detail:15 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Forever Medical	Place of Origin:	China	Model Number:	YJ-PA01
Type:	Anesthesia Equipments & Accessories

Product Description

------------------

Judy / Ms. Xing
Sales Manager
Henan Forever Medical CO., LTD.
Room 806,Wanda Center,jinshui District,Zhengzhou,China.
Whatsapp/Wechat/Skype/Mob:+86 15736746522
Email:judyfmco@gmail.com

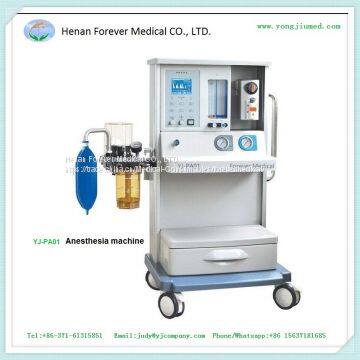

YJ-PA01 with 1 vaporizer Multifunctional Anesthesia machine

CE, ISO 13485 and Rohs certificates

Pneumatically driven and electrically controlled system

Built-in ventilator, 5.4" LCD display screen
Closed; Semi-Closed; Semi-Open wotking mode
Applied for Adult and Pediatric
Main technical specifications:
Gas requirement: Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa.
4-tubes Flowmeters, O 2 & N 2 O; 0.1L/Min ~ 10L / Min;
Oxygen Flush: 25~75 L / Min
Respiration Mode: A/C,IPPV,SIPPV,IMV,SIMV,MANUAL
Tidal Volume: 0~1500ml
I/E Ratio: 4:1 ~ 1:10
One vaporizer: Enflurane/ Isoflurane/Sevoflurane/Halothane
Vaporizer Setting Range: 0.5%~5%
Respiration Frequency : 1~99 bpm;
Ptr: -1.0kPa ~ 1.0 kPa
CO 2 absorber capacity : 1 kg
Optional: Patient monitor
Alarm parameters: upper/lower limit of airway pressure,tital volume exceed limitation,no tidal volume output,apnea,
AC power malfunction,Battery low power.

Features
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in ventilator, 5.4" LCD display screen
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
Equipped with electronic pressure differential flow sensor, imported respiratory control valve
Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
Multi-parameter Patient Monitor: Optional
High precision four tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Nonhazardous environmentally friendly frame, with automated self-checking function during startup and an automatic self-calibrating sensor
Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
Alarms: Audible and/or visual alarms for tidal volume, airway pressure, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function
Equipped with advanced international rotating Na-lime tank, uses imported PPSU material and temperature resistant to 134°C

Specifications

Model	YJ-PA01
Display	5.4" LCD display screen
Flowmeter Range	O2: 0.1-10L/min
Flowmeter Range	N2O: 0.1-10L/min
Ventilation Mode	A/C,IPPV,SIPPV,MANUAL
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable range: 50-1500ml
Tidal Volume	Display range: 0-1500ml
Respiratory Rate	1-99bpm
Inspiratory/Expiratory (I:E) Ratio	4:1 ~ 1:10
Inspiratory Pressure Trigger Range	-10-10cmH2O (electronically controlled)
Vaporizer Concentration Ranges	0-5%
