Portable Core Drilling Machine for Mineral Exploration GYQ-200

Quick Details

• Condition: Used
• Year: Customised
• Type: Core Drilling Rig
• Power Type: Electric
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: xitan
• Model Number: GYQ-200
• Usage: engineering exploration
• Voltage: 380V
• Power(W): 15KW
• Dimension(L*W*H): 1860*780*1460mm
• Weight: 800kg
• Certification: ISO9001:2008
• Warranty: 6 Months
• After-sales Service Provided: Engineers available to service machinery overseas
• Model: GYQ-200
• Hole Depth: 0-200
• Drilling angle: 0-360°
• Stroke of spindle: 500mm
• Max.Torque: 2500N.m
• Max .lifting capacity: 49KN
• Max .feeding capacity: 36KN
• Steel Wire Cable Diamater: 12.5mm
• Capacity of drum: 30m
• Max .lifting capacity (single line): 25KN

Product Description

1.According different stratum,can choose diamond, cemented carbide,spiral etc drilling bits to drill.

2.This model drilling rig is light with compact structure,also it is detachable.

3.It has reasonable speed range,total has 8 grade,focus shifting,low speed with big torque,wide usage.Not only for geological exploration,but also for diamond core drilling.

4.It has two reverse speed to handle malfunction safety.

5.Equipped with enough instrument to grasp the hole situation easily.

6.Equipped with forward and back moving oil cylinder,the power head backwar 465mm,it is convenient to up or down the drilling tools.

Applications:

1.Industrial and civil building construction,

2.Highway,railway,bridge foundation,damsite,water conservation,water well,prospecting etc engineeringgeological exploration work

3.Shallow oil and natural gas mining. mine tunnel ventilation, drainage and Large diameter pile hole construction work.

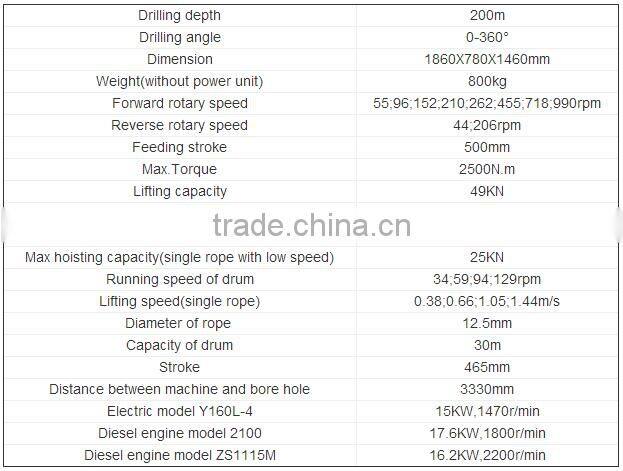

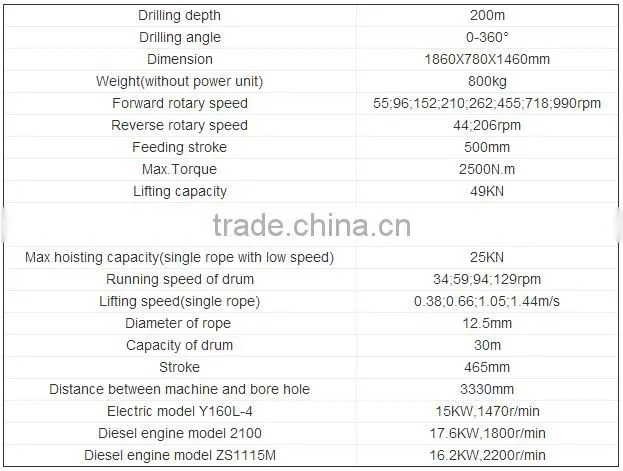

Specifications:
