Horizontal Directional Drilling Machine for Sale KDZ-300

Quick Details

• Condition: New
• Type: Core Drilling Rig
• Power Type: Electric
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: xitan
• Model Number: KDZ-300
• Usage: engineering geology
• Voltage: 380V
• Power(W): 30KW
• Dimension(L*W*H):2415*1800*2285mm
• Weight: 2800kg
• Certification: ISO9001:2008
• Warranty: 6 Months
• After-sales Service Provided:Engineers available to service machinery overseas
• Model: KDZ-300
• Hole Depth: 300-600
• Drilling angle: 0-360°
• Diameter of spindle: 93mm
• Stroke of spindle: 500mm
• Max .lifting capacity: 120KN
• Max .feeding capacity: 90KN
• Max torque: 4000N.m
• Back stroke: 350mm
• Tower height: 3.7;4.2;4.7m

Product Description

 1.This drilling has 8 grade speed and reasonable speed range.Not only fit for engineering geological

 prospect,but also fit for diamond drilling.Also has two reverse speed,with high labor intesty when handle the hole accident.

2.Four hydraulic prop can  achieve all-round Angle adjustment,fix the drilling rig safety and quickly.

3.This drilling has crawler device,cooperate with rotary cylinder,can walk to all directions,grately reduce the labor force.

4.This drilling rig is with tower(user choice),users can adjust themselves according the size of underground tunnels,each section is 0.5m,also can remove without using.

5.Compared with full hydraulic drilling rig,KDZ-300 model is with higher transmission efficiency,more convenient maintain,cheaper price,lower using cost,lower labor force,it is an economic underground drilling rig with energy saving and emission reduction.

Applications:

Underground tunnel ventilation;

water engineering;

Conventional rope core drilling;mining water drilling;

Water and electricity engineering drilling;Dam foundation grouting drilling etc.

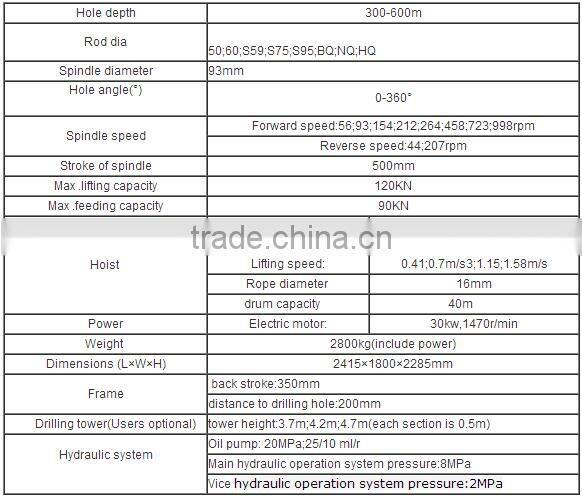

Specifications:
