All-hydraulic Multifunctional Drilling Rig Machine for Sale YDL-300DT

Quick Details

• Condition: New
• Type: Rotary Drilling Rig
• Power Type: Electric
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: xitan
• Model Number: YDL-300DT
• Usage: geology engineering
• Voltage: 380V
• Power(W): 55+18.5KW
• Dimension(L*W*H): 6.8*2.1*2.75m
• Weight: 10000kg
• Certification: ISO9001:2008
• Warranty: 6 Months
• After-sales Service Provided:Engineers available to service machinery overseas
• Model: YDL-300DT
• Hole Depth: 300m
• Hole angle: -5-90°
• Lifting force: 25T
• feeding force: 12.8T
• Stroke of slide frame: 1500mm
• stroke of power head: 7000mm
• Max torque of power head: 13900NM
• Min height from ground: 360mm
• Speed: 1.5km/h

Description:

YDL-300DT is a new type saving-energy drilling rig with energy conservation.The drive is  multi-function full hydraulic.

When matched drilling tools,it can work with many technology,like Pneumatic DTH drilling, air-foam drilling, air-lift reverse circulation drilling,mud circulation drilling,roller bit drilling etc.

Applications:

1. Mainly used for water well drilling,monitoring well,geothermal air-conditioning hole construction,defence construction,anchoring rod,high pressure jet grouting ect drilling work.

2.Also can used for hydropower project,high way,railway,city foundation etc geotechnical engineering construction.

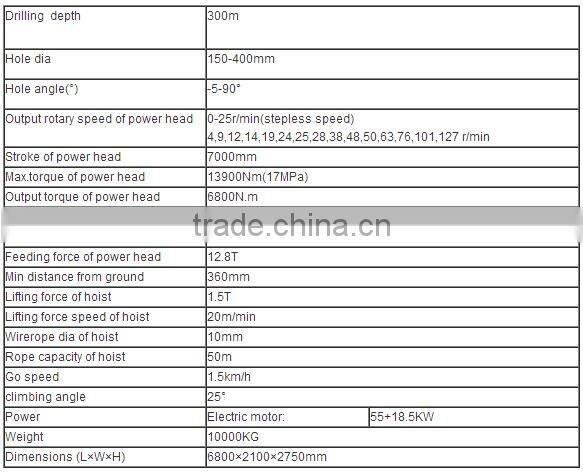

Specifications:
