220V/380V SD Series Electric Actuator BS-60

220V/380V SD Series Electric Actuator BS-60 thumbnail-1
220V/380V SD Series Electric Actuator BS-60 thumbnail-2
220V/380V SD Series Electric Actuator BS-60 photo-1

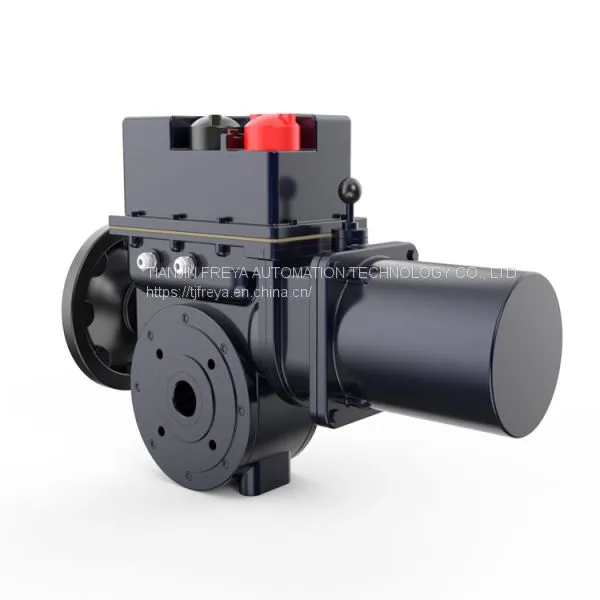

220V/380V SD Series Electric Actuator BS-60 photo-2
US$ 400 - 450 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
FREYA
Place of Origin:
China
Model Number:
BS-60
Contact Supplier Request Quote Chat Now
Tianjin Freya Automation Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN CHINA
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name FREYA
Place of Origin China
Model Number BS-60




1.0-90°rotation angle

2.Match butterfly valve, ball valve, shutter type valve, damper, baffle and plug valve...

3.Modbus Hart Profibus

Product Specifications



Type

Torque

Voltage

Speed

Install method

Control

method

Special

function

Code description of each part

OA

Output torque




























Working torque,digital representation,unit:Nm

AS

K



Single phase 220V.AC 50Hz

BS

F



Three phase 380V.AC 50Hz

A+RS

Power supply





















Rating travel time(90°),digital representation,unit:S

B+RS

Travel time

















H

Foot-plate installation

Z

Directly mounted installation

Control method













G

Standard integration proportional modulating,4-20mA

Y

Remote controlled, on-off input

N

Intelligent, 4-20mA imput

C

Main line

Control method





P

With machine operating

Ex

Explosion-proof

----T

Special requirements: high, low temperature, working voltage, dimension, travel, etc.



Note: 1.The electric actuator required by the special technology needs to write clearly and concretely in order.

2.When A+RS100/K30HGP model is A+RS, the working torque is 1000Nm, single-phase power supply, the whole travel time is 30 seconds, and foot-plate installation with integration proportional modulatin with the local operation.

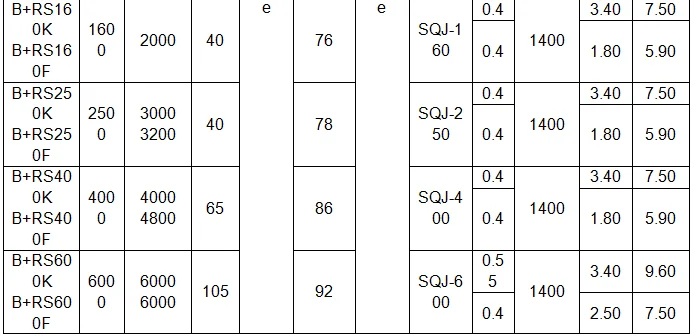

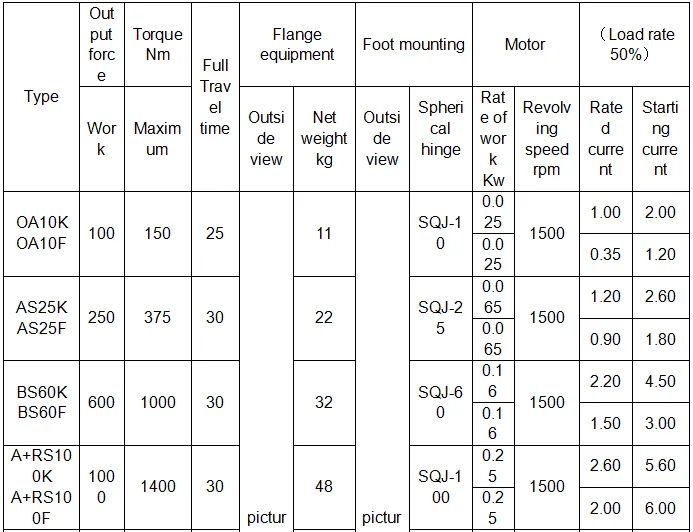

specification parameter

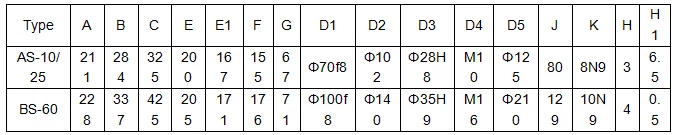

Dimensional Drawing



Prouduct show




SD series electric actuator is used in the structural design of composite structures, the generalization, standardization, seriation products in parts into consideration is more considerate, makes the product by machinery, motor, control circuit, combined to form a variety of different series and specifications, users in the use and maintenance of the greatly reduced the number of varieties of spare parts needed.

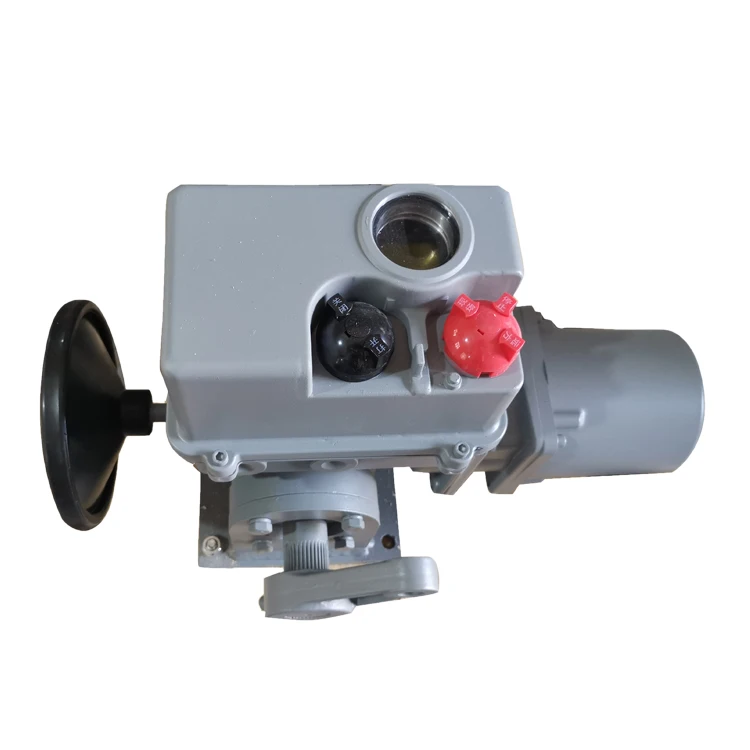

AS25 2.jpg

The basic base of the product reducer adopts the high strength aluminum alloy, the mechanical structure design is concise and compact, the reliability is high, the volume is small, the weight is light;Multiple connections can be installed in any position and direction.

Product Display




Application


Pelated products







Shipment term:

1. Orders processed timely after the payment verification .

2. Terms of Deliver: FOB / CFR / CIF / EXW etc.

3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .

Payment Term:

1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.

2. Advance payment should be made within 3 days of order .

Our Services:

Our company provides you with the following services free of charge:

1. All-round electric actuator and valve technology selection service

2. High-quality post-product maintenance and technical analysis services

3. Accept other related cooperation.

Product Tags: electric actuator , control valve , quarter-turn actuator
