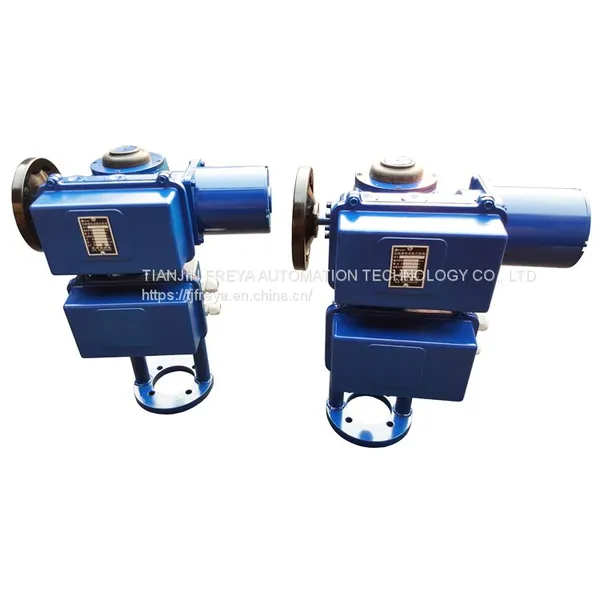

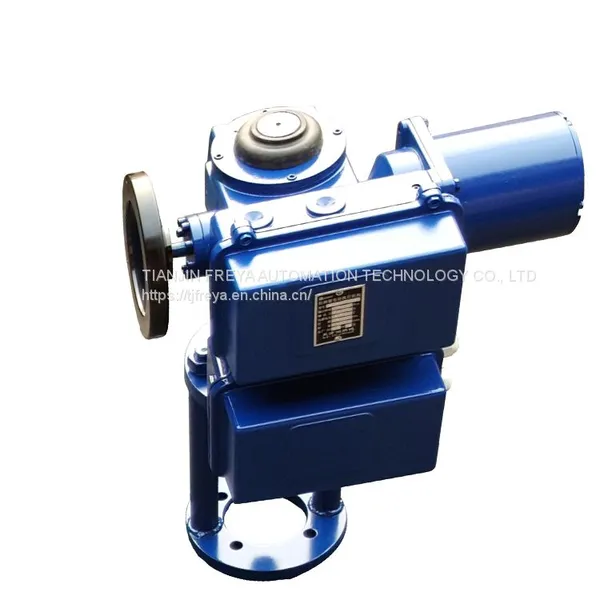

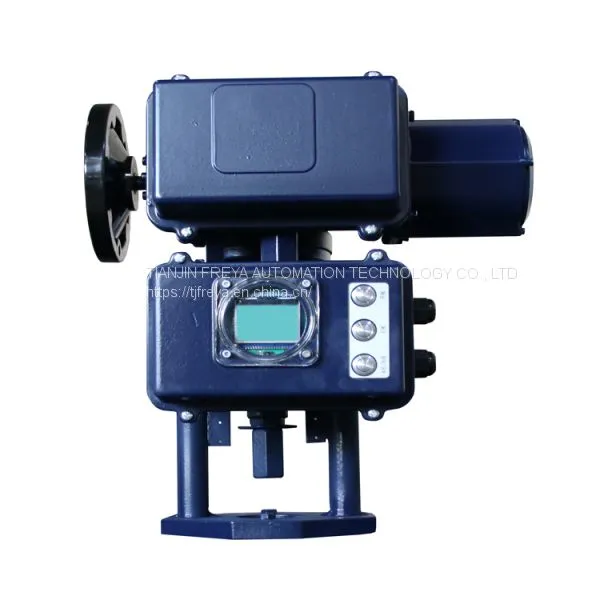

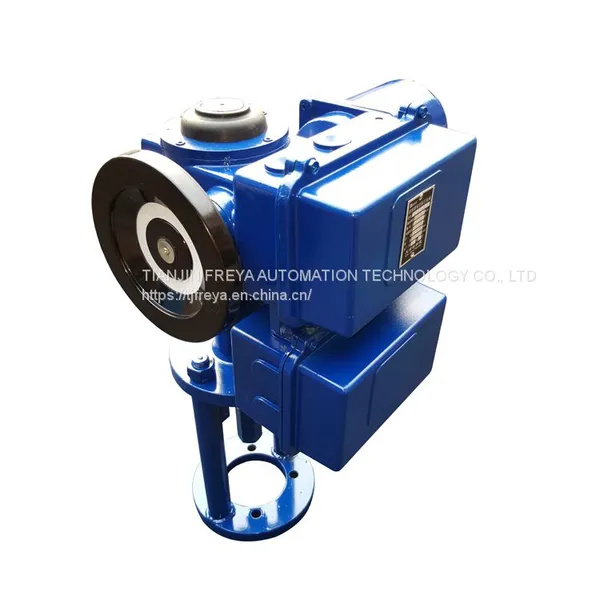

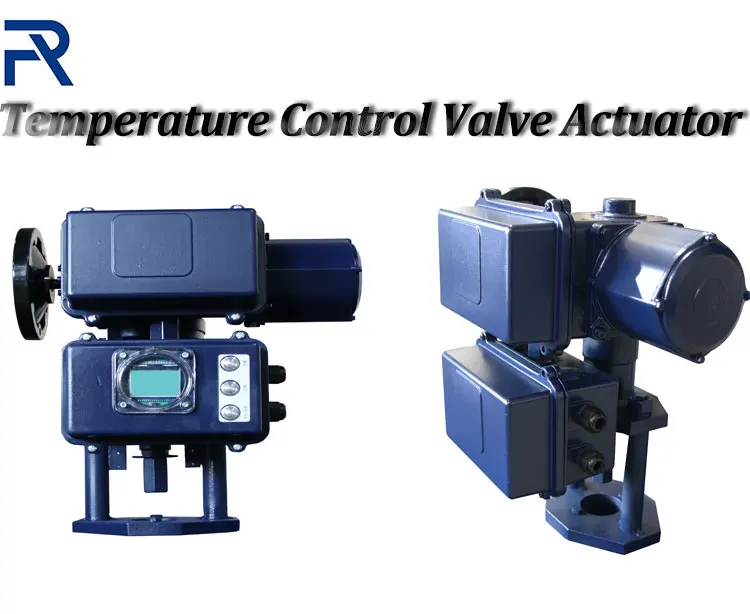

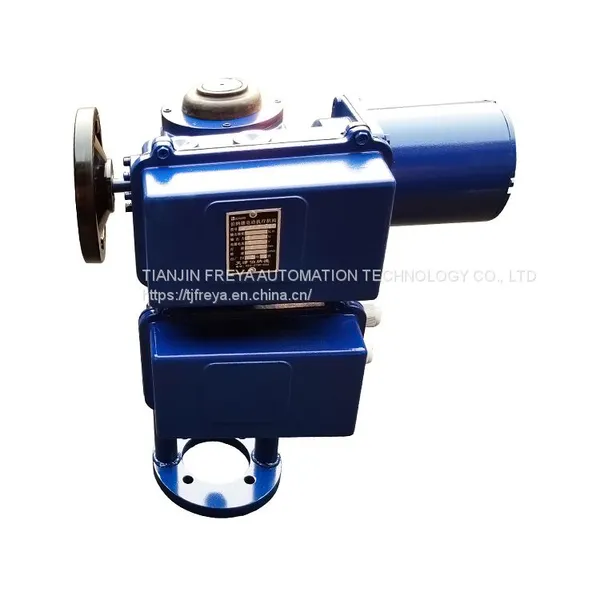

Help CenterElectric Linear Actuator Ac220v IP67 BSD1A/5K(F)ADL BSD1A/5K(F)CDL BSD1A/5K(F)ABL
Related Products
-
Intelligent Motorized Valve Quarter Turn Actuator for Power Plant Rd6000/f65ht Rd10000/f105US$ 600 - 1300MOQ: 1 Piece -
Electronic Actuator Damper Type 415v Sma+rs100/f30zl Sma-rs160/fUS$ 600 - 1300MOQ: 1 Piece
-
Electric Actuator Regulation Type 4-20 mA Dcl-20 Dcl-40 Dcl-60US$ 600 - 1300MOQ: 1 Piece
-
220V/380V 1/3 Phase 90 Degree SD Series Quarter-turn Electric Valve Actuator Price OA AS BS A+RS B+RSUS$ 500 - 600MOQ: 1 Piece
-
Quarter-turn Electric Acutator Foot-Plate Mounted TYPE AS-25/F30HUS$ 600 - 1300MOQ: 1 Piece
according to the mode of output:
1. Quarter-turn intelligent integration of electric actuators
1.1 Foot-plate mounted electric actuator
Quarter-turn electric actuator scope of turning 0-90degree, The output torque is indicated by Nm, Adjusting the output arm on any position according to open -closed degree of valve.Convenient to operation.
1.2 Directly mounted electric actuator valve connect with output shaft by flange.
2. Linear-turn intelligent integration of electric actuators
The output thrust is indicated by N.The output is linear displace.It is used for the single and double control valve, sleeves valve, the gate valve.
3. Multi-turn intelligent integration of electric actuator
The output torque is indicated by Nm. Rotary beyond 360 degrees, it is used for the gate valve, the globe valve, high temperature and high voltage control valve.
(1)Signal interruption protection function.
(2)over torque protection function.
(3)Mechanical and electric double limit switch travel protection function.
(4)"Remote auto / remote manual / local" three states can be switched, and with on-site electric operation, field hand wheel operation functions.
(5)Positive and negative effects conversion function.
(6)Prevent the motor run-down, with the dynamic electrical braking function.
(7)High performance servo motor, Can be frequently start without heat.
(8)Variety of control modes: Can be received standard current signal, Passive contact signal and Bus Signals.
(9) Supply voltage can be produced according to user requirements.
(10) Has strong anti-interference ability.
(11) Optional three-phase power phase loss protection function and automatic correction phase.
Type |
A+Z B+Z BSD |
Rated thrust |
6400~64000N |
Rated travel |
10~150mm |
Control accuracy |
Basic error±1% ;Return difference≤1% ;Dead area≤1% |
Adjustable range of working travel |
“zero point” ±10%; "travel" 35%~110% |
Impedance of input channel |
250Ω |
Input channel |
1 (divided into 3). |
Display mode |
LED digital code (customize LCD according to customer requirement) |
Level of protection |
IP55~IP68 |
Relative Humidity |
≤95% |
Environmental gas |
No corrosive gas |
Mechanical vibration |
XY210G. 0.2~34Hz. 30minutes |
Power cable |
S=1.5mm²~4mm² |
Signal cable |
S=1.5mm² |
Cable entry |
PG16 PE3/4" |
Special requirement |
If you have special requirements for travel time, connection size, control mode, environment temperature and others, our company can produce customized product specially. |
Shipment Term:
1. Orders processed timely after the payment verification .
2. Terms of Deliver: FOB / CFR / CIF / EXW etc.
3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .
Payment Term:
1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.
2. Advance payment should be made within 3 days of order .
Our company provides you with the following services free of charge:
1. All-round electric actuator and valve technology selection service
2. High-quality post-product maintenance and technical analysis services
3. Accept other related cooperation.
