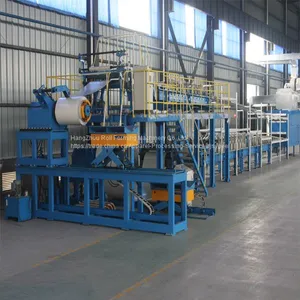

Help CenterContinuous pu Sandwich Panel Machine
Related Products
-
Automatic PU Sandwich Panel Roll Forming MachineNegotiableMOQ: 1 Bag -
Eps Sandwich Panel Production Machine LineNegotiableMOQ: 1 Bag
-
EPS/PU Sandwich Panel Continuous Production LineNegotiableMOQ: 1 Bag
-
Continuous Polyurethane Sandwich Panel MachineNegotiableMOQ: 1 Bag
-
PU Sandwich Panel Production Making Machine LineNegotiableMOQ: 1 Bag
General Description of the Continuous pu sandwich panel machine
The technical plan made below is include the following part: hydraulic powered uncoiler, film covering equipment, roll forming machine, the conveyor between uncoiler and roll forming machine, preheating oven, polyurethane foaming system, double belt conveyor, non-stop bandsaw, and the stacker.
Continuous pu sandwich panel machine Main Technical Parameters
Laminator Panel Spec.
Min. cutting length 3 meters
Panel width 900-1020mm
Panel thickness Mini thickness: the value is different according to different profile
Max. thickness: 150mm (without corrugated sandwich panel)
Steel Sheet Spec
Thickness 0.5-0.6mm
Width 1250mm
Max. coil weight 5tons
Inner Dia. of coil about 508 mm and 620 mm
Whole Continuous pu sandwich panel machine Line Spec
Working speed max. 6m/min (adjustable)
Total length about 115m
Working height 1200mm (height of panel coming out)
Pressure for foaming 150-200 bar
Control mode PLC
Power required 380V/3phase/50Hz
Control voltage 24V 110V 220v
Air pressure 0.7Mpa (for buyer to prepare)
Continuous pu sandwich panel machine Working flow
Active uncoiler film covering equipment (optional) Roll forming
Conveyor Preheating Foaming
Solidify (double belt conveyor) Cutting Run out conveyor Automatic stack
Parts of the Continuous pu sandwich panel machine show
Packing and shipping about the Continuous pu sandwich panel machine
