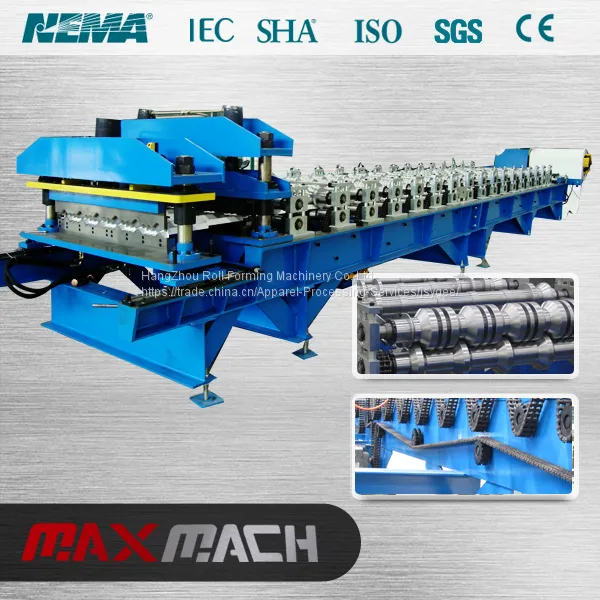

Galvanized Metal Roofing Sheet Roll Forming Making Machine

Galvanized metal roofing sheet roll forming making machine Description:

This Galvanized metal roofing sheet roll forming making machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, continuous rolling and cold-forming, automatically cut to the size and output the finished panal to the supporter . The Galvanized metal roofing sheet roll forming making machine adopts PLC control, AC frequency and adjusting the speed technology, and it realize the continuous automatically production, therefore, Galvanized metal roofing sheet roll forming making machine is really a new type of energy-saving and high-effective producing equipment for steel structure.

Technical Parameters for Galvanized metal roofing sheet roll forming making machine:

1 Suitable material Type Galvanized steel:Thickness (mm) 0.4-0.7,Yield Strength (Mpa) 230-300Mpa,Width (mm) 1000mm,Wt of the Coil (t) 5 tons,OD Φ1350mm,ID Φ508 mm/Φ610mm
2 Material of rollers :NO.45 steel with chrome plate
3 Forming Speed (m/min):About20M/min
4 Power Source :AC380V ,50 Hz, 3 Phase
5 Total power:About9KW
6 Dimension (L×W×H, m):See the layout

Working Process for Galvanized metal roofing sheet roll forming making machine:

Loading Material → Decoiling → Leveling → Roll Forming → Straightening → Cut to Length → Run out table

Components Parts of the Galvanized metal roofing sheet roll forming making machine:

1.Decoiler system Cantilever decoiler
2.Main forming system Feeding guide device:Roll forming system,Post-cutting device
3. Output system Product Supporter
4. Hydraulic system
5. Electric control system

Packing and shipping about the Galvanized metal roofing sheet roll forming making machine

More about the Maxmach group

Finished products about the Galvanized metal roofing sheet roll forming making machine,pls check the download about the PDF below the main products description.
