Floor Type Laboratory Fume Hood
1200*850*2350mm
Fume hood is one kind of lab furniture, essential for laboratory, which plays the role of exhaust and ventilation. It is one of the most commonly used local exhaust equipment in the laboratory.

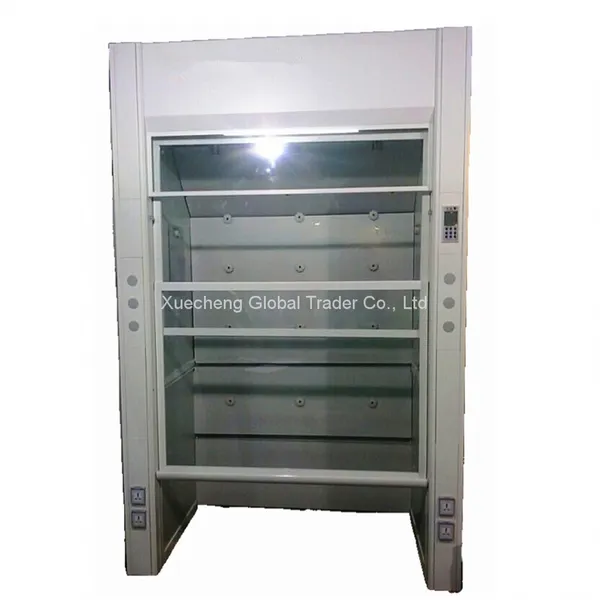

The structure of walk-in Type fume hood is floor type, there is an exhaust port at the top, which can be installed with vent blower.
The fume hood has lining baffles, controller, lamp, sockets, etc.
and the visible window adopts tempered glass, can be moved up-down, freely operated by people.
Features
The Structure adopts double-layer structure design.
- The outer layer is steel shell, with 1.0mm thick galvanized steel sheet stamped and bent into one piece, the surface is coated by electrostatic spraying epoxy resin powder, acid and alkali resistance, corrosion resistance, the adhesive force of its spraying epoxy resin protective coating is good after the test of drop impact;

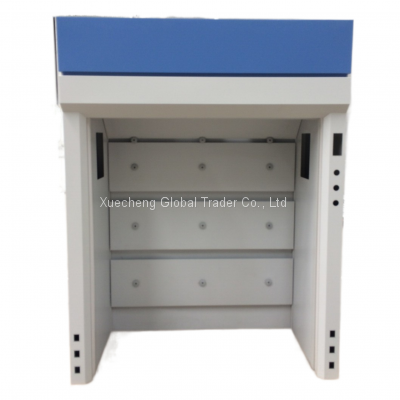

- The inner layer is lining baffles, use 5-6mm thick compact laminate (compact chemical base board) to make, including top baffle, side baffle, back baffle, guide baffle, coated by electrostatic spraying epoxy resin powder, with excellent effects for moisture resistance, bending resistance and impact resistance;
1. The guide baffles adopt 3-section exhaust design, can eliminate the exhaust dead corners and contribute to discharge gases with different densities, can also keep the fume hood section face velocity at about 0.5m/s (100fpm).
2. It adopts side(T01) or back(T02) counterweight structure and knock-down removable baffles(with maintenance window), which is convenient for maintenance and upgrade of counterweight, water, electricity and gas.
- Sliding Window System
1. Visible window: ≥5mm thick anti-explosion tempered glass, slides smoothly, can stop at any position of the track, which is convenient to operate; the max opening height is not more than 750mm.
2. Steel-wire Rope drive or Belt drive counterweight
3. Metal window frame and alum-alloy U type handle or PP integrative handle
- Electrical System
1. Controller(LCD screen intelligent control panel): the controller is set on one side of outer column, is convenient for observation and operation.
2. Socket(60*60mm): use 10A/16A 220V multifunctional sockets with dust-spray proof protecting cover, which is suitable for all kinds of lab equipment.
3. Lighting: use integrative LED lamp, hidden in the top baffle, will not be in touch with the gases of the fume hood, easy to be changed, the luminance is enough for experiment purpose.
4. Equipped with overload and short circuit protection safety device. (T02)
Product Name |
Dimension |
Model |
Walk-in Type Fume Hood |
1200*850*2350mm 1500*850*2350mm 1800*850*2350mm |
XC-FHW1200 XC-FHW1500 XC-FHW1800 |
NOTES:
1 We can design and manufacture non-standard dimension as per user's requirements.
2.The price excluding vent blower, vent duct& elbow, water sink&tap, flow control valve&cock.
Optional Acessories
water (sink and faucet), ducting(vent duct and elbow), vent blower, cock&valve, etc
More Models for Option
Packaging&Shipping
They would be packed in cartons (FCL Sea shipping) or plywood boxes(LCL Sea shipping) in assembled or disassembled state.
while Air shipping is available if you accept the shipping cost.
Application
- Electronics industry: dust free chamber, waste water& gas discharge from semiconductor factory, and equipment of related industries, etc
- Chemical industry: acid - resistant&alkali - resistant solution tank, washing tower, air duct and air pollution treatment equipment, etc
- Electroplating industry PCB plating, hardware plating, plastic plating, electrolyte tank and cleaning, filtration equipment, etc
- Food industry: food processing equipment, containers and kitchen cutting boards, etc
- biological pharmacy, biological analysis, plant culture, environmental test, electronic instruments and scientific research, etc.
