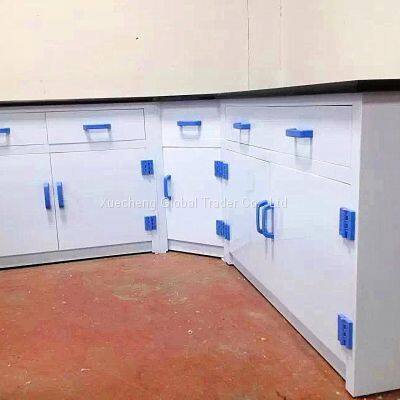

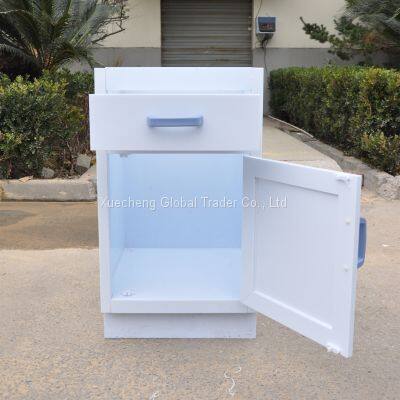

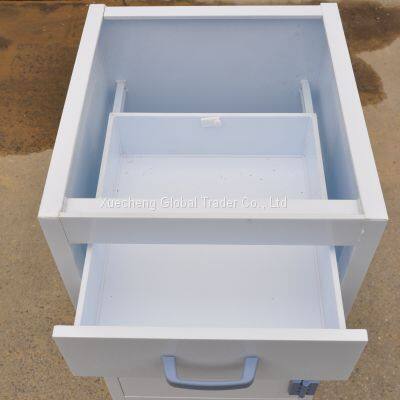

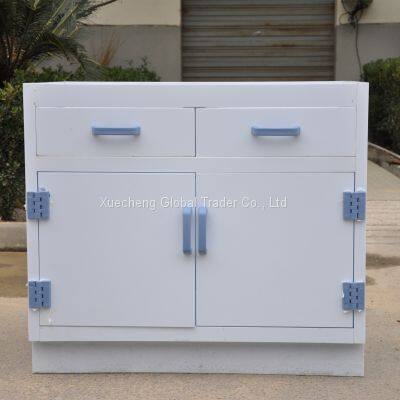

Polypropylene Lab Wall Bench 10 Feet Long PP Side Laboratory Table

Polypropylene Lab Furniture Wall Bench Laboratory Side Table

use high quality pure material PP board to make through integrally welded by the same color welding rod, resistant to strong acid, alkali and corrosion, reducing pollution, protecting the operator’s health.

use integrated forming and seamless welding technology, greatly strengthening the cabinet body structure, effectively reducing the rate of cabinet deformation from heat bilges cold shrink.

Worktop: made of 16mm polypropylene board, with all edges double thickened to 32mm.

Other materials are available according to the customer’s requirement:

like solid core physicochemical board, epoxy resin board, ceramic board and marble, etc

Cabinet Body: made of 8mm thick PP board, with strong corrosion resistance, good resistance to acid and alkali.

-Slide rail: PP material mold forming slide rail.

- Handle: PP handles special for lab use, (color is optional: azure blue or porcelain white)
- Hinge: PP hinges special for lab use, (color is optional: azure blue or porcelain white)

- Shelf(optional): there is no shelf insdie the cabinet.

 -Socket(optional): PP socket special for lab use.

Accessories:

hinges, ball plunger, screws and doors are made of PP material, resistance to acid and alkali.

Technical Specifications

Optional Accessories

Water Sink/Test Flume:

• Material: high density polypropylene made, resistant to most chemicals, strong corrosion resistance;
  Wall thickness: 5mm, up to 7mm, flat and non-deformation.

• Water Tap/Faucet /Test Nozzle:

• Thick solid brass, high gloss thick epoxy resin powder; resistant to most chemicals, corrosive and heat resistance, anti ultraviolet radiation, non-toxics and safety.
  Ceramic valve headwork: sealed structure, can be used for 500, 000 times without any leakage;
  Detachable serrated nozzle, anti-splash bubbler is optional.
  High grade PP knob switch, ergonomic design, convenient and quick. feel comfortable, easy to operate.

• Pegboard/Drip Rack/ Drying Rack

• Material: high grade PP, stainless steel is available.
  Size: 400*550mm or 550*700mm.
  Type: single faced or double faced, there are drain holes in the middle of the bottom tray, and the pegs(drip rods) can be detachable, easy to use.
  Installation mode: wall mounted/ desk mounted.

• Steel-Glass Structure Reagent Rack


• Upright column: use high quality steel sections welding molding, spec is 50*100, surface is coated with epoxy resin powder, firm structure, anti-corrosion and elegant appearance; there is 1 socket per column.
  Shelf: use 5-10mm thick single side frosting high quality tempered glass, all around rim treatment, smooth and not easy to hurt the hands.
  Other Fittings:
  Equipped with glass support arm, which make user freely adjust the height according to comfortable requests.
  The shelf edge is equipped with Ø12mm stainless steel stop rods in order to prevent reagent utensil drop, elegant appearance and useful.


•


• Trunking/Socket Box:

Steel, Alum-alloy or PP pedestal box;
10A or 16A socket, water-proof (3-hole or 5-hole) socket is optional.
All international socket standards are available like British Standard, American Standard. etc

Packaging&Shipping

Because the Weight and Dimension are big, generally the lab benches, fume hoods or lab cabinets are going to be shipped by Sea;
They would be packed in cartons (FCL sea shipping) or plywood boxes(LCL sea shipping) in assembled or disassembled state.

While Air shipping is available if you accept the shipping cost.

Application
- Electronics industry: dust free chamber, waste water& gas discharge from semiconductor factory, and equipment of related industries, etc
- Chemical industry: acid - resistant&alkali - resistant solution tank, washing tower, air duct and air pollution treatment equipment, etc
- Electroplating industry PCB plating, hardware plating, plastic plating, electrolyte tank and cleaning, filtration equipment, etc
- Food industry: food processing equipment, containers and kitchen cutting boards, etc

- biological pharmacy, biological analysis, plant culture, environmental test, electronic instruments and scientific research, etc.

Company Profile

Xuecheng Global Trader Co., Ltd is one professional and reliable industry and trade company for lab furniture, integrating production, R&D, sales, installation and after-sale service., located in beautiful Olympic-Sailing City- Qingdao, China.

After years' development, we have grown into one diversified company, engaged in lab furniture, school furniture, lab equipment, medical equipment, etc

Manufacturing&Shipping Process
1. Raw materials preparation (kinds of boards, sheets)
2. Cutting
3. Punching
4. Welding
5. Bending
6. Baking and Painting(semi- product)
7. Assemly
8. Packing
7. Shipping
