Roof and Wall Glazed Tile Roll Forming Machine

Hebei Feixiang Roll Forming Machinery Co,.Ltd
Roof and Wall Glazed Tile Roll Forming Machine thumbnail-1
Roof and Wall Glazed Tile Roll Forming Machine thumbnail-2
Roof and Wall Glazed Tile Roll Forming Machine thumbnail-3
Roof and Wall Glazed Tile Roll Forming Machine thumbnail-4

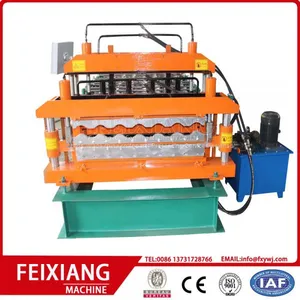

Roof and Wall Glazed Tile Roll Forming Machine thumbnail-5
Roof and Wall Glazed Tile Roll Forming Machine thumbnail-6
Roof and Wall Glazed Tile Roll Forming Machine photo-1

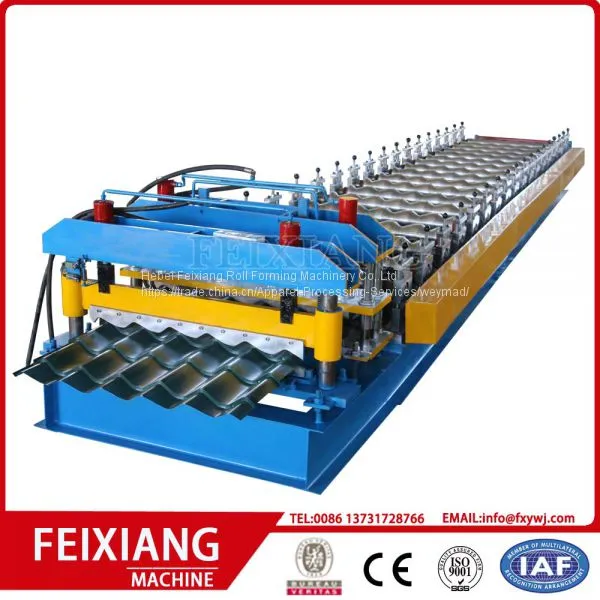

Roof and Wall Glazed Tile Roll Forming Machine photo-2

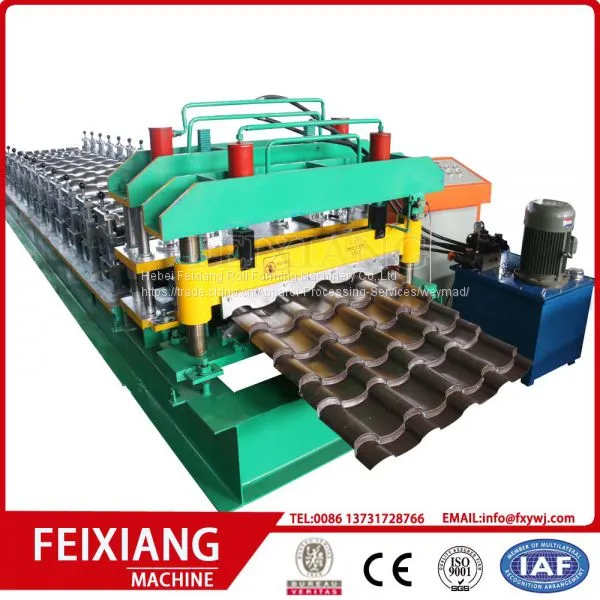

Roof and Wall Glazed Tile Roll Forming Machine photo-3

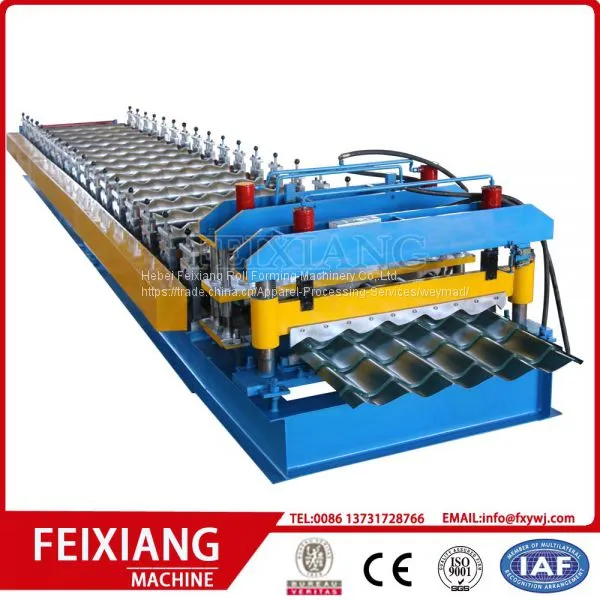

Roof and Wall Glazed Tile Roll Forming Machine photo-4

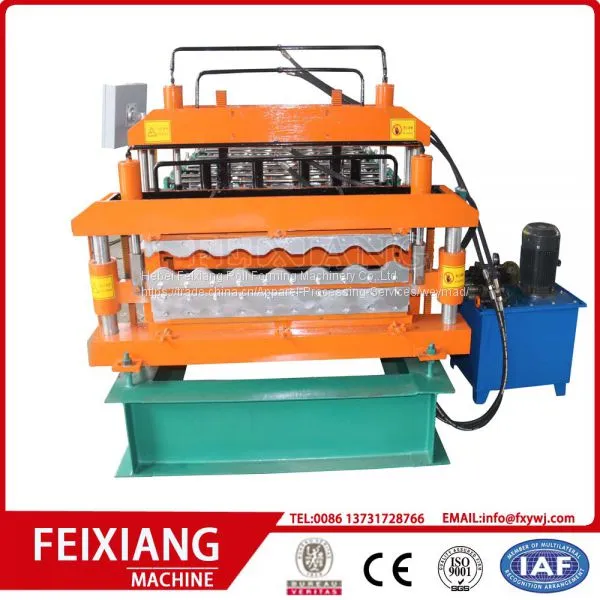

Roof and Wall Glazed Tile Roll Forming Machine photo-5
Roof and Wall Glazed Tile Roll Forming Machine photo-6
Negotiable MOQ: 1 Bag (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1996
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

         roof and wall glazed tile roll forming machine

1. roof tile roll forming machine
2. precise forming
3. reliable quality
4. professional service
5. CE&ISO certificates


1. Processing flow diagram

Manual decoiler→Feeding material into machine→Roll forming machine→Measure  length→Hydraulic cutting→Finished Products



2. Technical parameters

Model number

roof and wall glazed tile roll forming machine

Rolled material

0.3-0.8mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates

Effective width

 AS YOUR DESIGN

Feeding width

 ACCORDING TO YOUR DESIGN

Forming steps

11  stations

Roller

45# forged steel, hard chrome plating within 0.05mm

Diameter of shaft

80mm

Main motor power

4 kw

Pump power

3 kw

Sprocket chain

1 inch

Drive type

by chain

Cutting Blade

Cr12, heat treatment 60-62°C

Frequency Converter

It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).

component

1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table

Payment terms

cash,T/T,L/C.

Remark: Above parameters are standard, we can design and make some change exactly according to your requirements.

machine

3. Profile and Real photos

roof and wall glazed tile roll forming machine

4.Details of the machine:

roof and wall glazed tile roll forming machine


5.After-sales service


  A: Warranty: One year ,and we will provide the technical support for the whole life.
  B: Training: the buyer should charge of visa, round-trip ticket, food and accommodation
overseas and USD100/person/day for salary.

  C: Need one technician.
  D: Training time: one week (contains the time of installation and adjustment)

6.Real Photos of Our Factory. Warmly Welcome to Come and Visit Our Company

roof and wall glazed tile roll forming machine

7.Certifications for Our Company and Our Machines



roof and wall glazed tile roll forming machine

8.if any needs or questions on roll forming machines, please feel free to contact me.

roof and wall glazed tile roll forming machine
