galvanized steel floor decking sheet roll forming machine
1. roof tile roll forming machine
2. precise forming
3. reliable quality
4. professional service
5. CE&ISO certificates
1. Processing flow diagram
Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products
2. Technical parameters
| Model number | galvanized steel floor decking sheet roll forming machine |
| Rolled material | 1.2-2.5mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates |
| Effective width | AS YOUR DESIGN |
| Feeding width | ACCORDING TO YOUR DESIGN |
| Forming steps | 24 stations |
| Roller | Cr15 |
| Diameter of shaft | 90mm |
| Main motor power | 11+11 kw |
| Pump power | 7.5 kw |
| Sprocket chain | 2 inch |
| Drive type | by chain |
| Cutting Blade | Cr12, heat treatment 60-62°C |
| Frequency Converter | It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
| component | 1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table |
| Payment terms | cash,T/T,L/C. |
Remark: Above parameters are standard, we can design and make some change exactly according to your requirements.

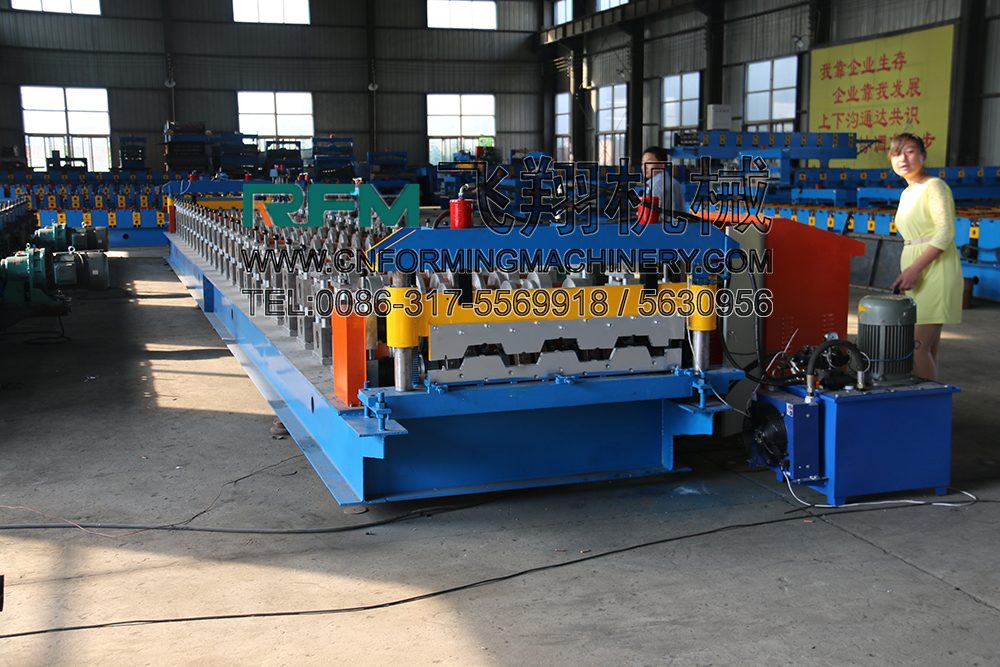

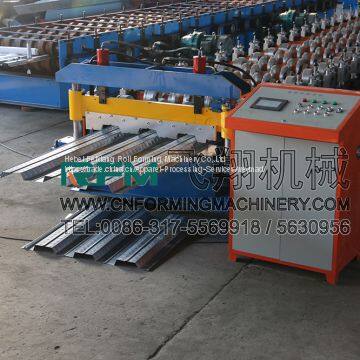

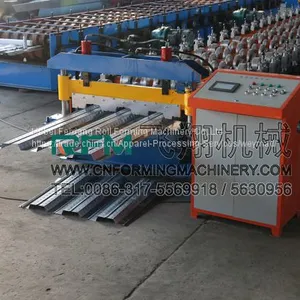

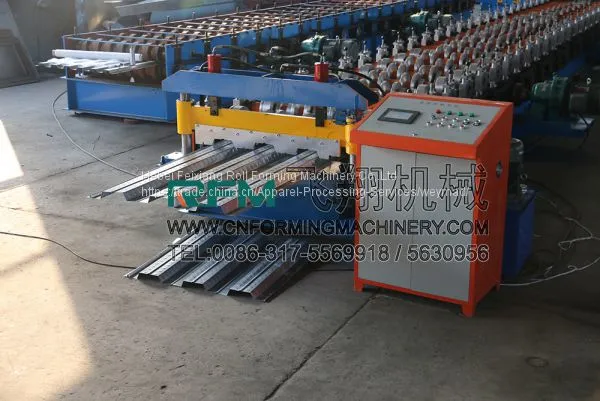

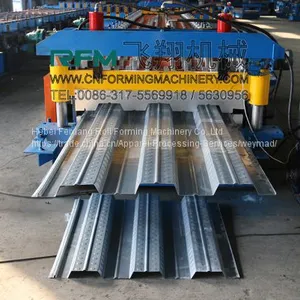

3. Profile and Real photos
4.Details of the machine:
5.After-sales service
A: Warranty: One year ,and we will provide the technical support for the whole life.
B: Training: the buyer should charge of visa, round-trip ticket, food and accommodation
overseas and USD100/person/day for salary.
C: Need one technician.
D: Training time: one week (contains the time of installation and adjustment)
6.Real Photos of Our Factory. Warmly Welcome to Come and Visit Our Company
8.if any needs or questions on roll forming machines, please feel free to contact me.
