Welded Carbon Steel pipe
- 0 per Month
Product Description
SWelded Carbon Steel pipe traight seam welded pipe production process is simple, high production efficiency, low cost, rapid development. The strength of the spiral welded pipe is generally higher than that of the straight seam welded pipe, and the pipe with larger diameter can be produced with the narrow billet. The pipe with different diameter can also be produced with the same width. However, compared with the same length of the straight pipe, the weld length increased by 30 to 100%, and the production rate is low.
Erw Steel Pipe wall thickness classification table
Inch | inch sizc | OD | Wall Thickness Standard | ||||||||||||||
SCH 5s | SCH 10S | SCH 10 | SCH 20 | SCH 30 | SCH 40 | SCH 60 | SCH 80 | SCH 100 | SCH 120 | SCH 140 | SCH 160 | STD | XS | XXS | |||
1/8 | DN6 | 10.3 | - | 1.24 | - | - | - | 1.73 | - | 2.42 | - | - | - | - | 1.73 | 2.41 | - |
1/4 | DN8 | 13.7 | - | 1.65 | - | - | - | 2.24 | - | 3.02 | - | - | - | - | 2.24 | 3.02 | - |
3/8 | DN10 | 17.1 | - | 1.65 | - | - | - | 2.31 | - | 3.2 | - | - | - | - | 2.31 | 3.20 | - |
1/2 | DN15 | 21.3 | 1.65 | 2.11 | - | - | - | 2.77 | - | 3.73 | - | - | - | 4.78 | 2.77 | 3.73 | 7.47 |
3/4 | DN20 | 26.7 | 1.65 | 2.11 | - | - | - | 2.87 | - | 3.91 | - | - | - | 5.56 | 2.87 | 3.91 | 7.82 |
1 | DN25 | 33.4 | 1.65 | 2.77 | - | - | - | 3.38 | - | 4.55 | - | - | - | 6.35 | 3.38 | 4.55 | 9.09 |
1-1/4 | DN32 | 42.2 | 1.65 | 2.77 | - | - | - | 3.56 | - | 4.85 | - | - | - | 6.35 | 3.58 | 4.85 | 9.70 |
1-1/2 | DN40 | 48.3 | 1.65 | 2.77 | - | - | - | 3.68 | - | 5.05 | - | - | - | 7.14 | 3.68 | 5.08 | 10.15 |
2 | DN50 | 60.3 | 1.65 | 2.77 | - | - | - | 3.91 | - | 5.54 | - | - | - | 8.74 | 3.91 | 5.54 | 11.07 |
2-1/2 | DN65 | 73.0 | 2.11 | 3.05 | - | - | - | 5.16 | - | 7.01 | - | - | - | 9.53 | 5.16 | 7.01 | 14.02 |
3 | DN80 | 88.9 | 2.11 | 3.05 | - | - | - | 5.49 | - | 7.62 | - | - | - | 11.13 | 5.49 | 7.52 | 15.24 |
3-1/2 | DN90 | 101.6 | 2.11 | 3.05 | - | - | - | 5.74 | - | 8.08 | - | - | - | - | 5.74 | 8.08 | - |
4 | DN100 | 114.3 | 2.11 | 3.05 | - | - | - | 6.02 | - | 8.58 | - | 11.13 | - | 13.49 | 6.02 | 8.56 | 17.12 |
5 | DN125 | 141.3 | 2.77 | 3.4 | - | - | - | 6.55 | - | 9.53 | - | 12.70 | - | 15.88 | 6.55 | 9.53 | 18.05 |
6 | DN150 | 168.3 | 2.77 | 3.4 | - | - | - | 7.11 | - | 10.97 | - | 14.27 | - | 18.26 | 7.11 | 10.97 | 21.95 |
8 | DN200 | 219.1 | 2.77 | 3.76 | - | 6.35 | 7.04 | 8.18 | 10.31 | 12.70 | 15.09 | 18.26 | 20.62 | 23.01 | 8.18 | 12.70 | 22.23 |
10 | DN250 | 273.1 | 3.40 | 4.19 | - | 6.35 | 7.8 | 9.27 | 12.70 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 | 9.27 | 12.70 | 25.40 |
12 | DN300 | 323.9 | 3.96 | 4.57 | - | 6.35 | 8.38 | 10.31 | 14.27 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 9.35 | 12.70 | 25.40 |
14 | DN350 | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | 11.13 | 15.09 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | 9.53 | 12.70 | - |
16 | DN400 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | 12.70 | 16.66 | 21.44 | 26.19 | 30.96 | 36.53 | 40.49 | 9.53 | 12.70 | - |
18 | DN450 | 457 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | 14.27 | 19.05 | 23.83 | 29.36 | 34.93 | 39.67 | 45.24 | 9.53 | 12.70 | - |
20 | DN500 | 508 | 4.78 | 5.54 | 6.35 | 9.53 | 12.70 | 15.09 | 20.62 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 | 9.53 | 12.70 | - |
22 | DN550 | 559 | 4.78 | 5.54 | 6.35 | 9.53 | 12.70 | - | 22.23 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | 9.53 | 12.70 | - |
24 | DN600 | 610 | 5.54 | 6.35 | 6.35 | 9.53 | 14.27 | 17.48 | 24.61 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | 9.53 | 12.70 | - |
26 | DN650 | 660 | - | - | 7.92 | 12.7 | - | - | - | - | - | - | - | - | 9.53 | 12.70 | - |
28 | DN700 | 711 | - | - | 7.92 | 12.7 | 15.88 | - | - | - | - | - | - | - | 9.53 | 12.70 | - |
30 | DN750 | 762 | 6.35 | 7.92 | 7.92 | 12.7 | 15.88 | - | - | - | - | - | - | - | 9.53 | 12.70 | - |
32 | DN800 | 813 | - | - | 7.92 | 12.7 | 15.88 | 17.48 | - | - | - | - | - | - | 9.53 | 12.70 | - |
34 | DN850 | 864 | - | - | 7.92 | 12.7 | 15.88 | 17.48 | - | - | - | - | - | - | 9.53 | 12.70 | - |
36 | DN900 | 914 | - | - | 7.92 | 12.7 | 15.88 | 19.05 | - | - | - | - | - | - | 9.53 | 12.70 | - |
38 | DN950 | 965 | - | - | - | - | - | - | - | - | - | - | - | - | 9.53 | 12.70 | - |
40 | DN1000 | 1015 | - | - | - | - | - | - | - | - | - | - | - | - | 9.53 | 12.70 | - |
42 | DN1050 | 1067 | - | - | - | - | - | - | - | - | - | - | - | - | 9.53 | 12.70 | - |
44 | DN1100 | 1118 | - | - | - | - | - | - | - | - | - | - | - | - | 9.53 | 12.70 | - |
46 | DN1150 | 1188 | - | - | - | - | - | - | - | - | - | - | - | - | 9.53 | 12.70 | - |
48 | DN1200 | 1219 | - | - | - | - | - | - | - | - | - | - | - | - | 9.53 | 12.70 | - |

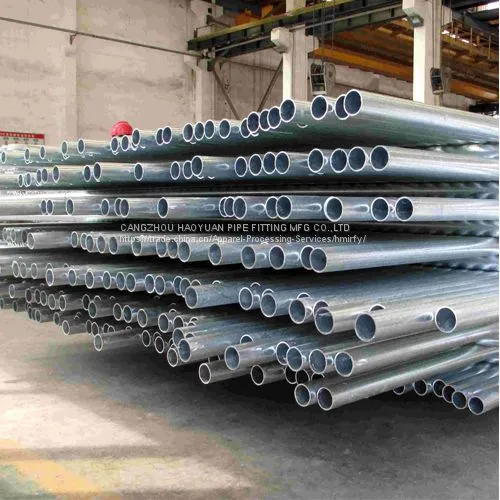

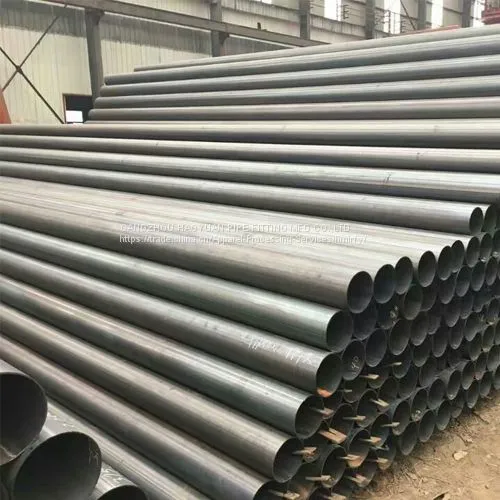

High-quality products

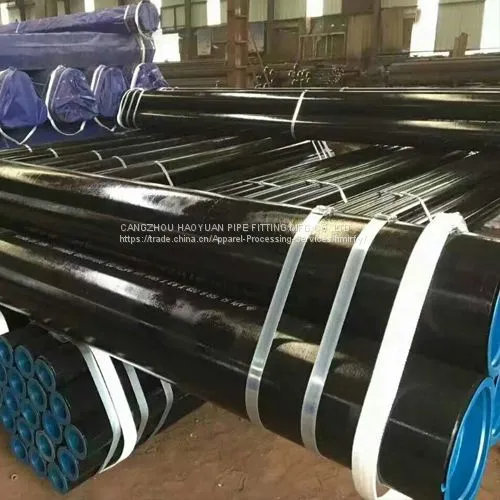

Our packaging
Erw Steel Pipe Production Process
High-frequency welded pipe is characterized by: welding speed, welding heat affected zone is small, welding on the workpiece can not clean, can be welded thin-walled tube, weldable metal tube.High-frequency welded pipe typical process: slitting - open-book - strip leveling - head and tail shear - strip butt welding - looper storage material - forming - welding - clear burr - sizing - testing - flying cut - Straightening - pipe processing - hydrostatic testing - flaw detection - printing and coating - finished products.

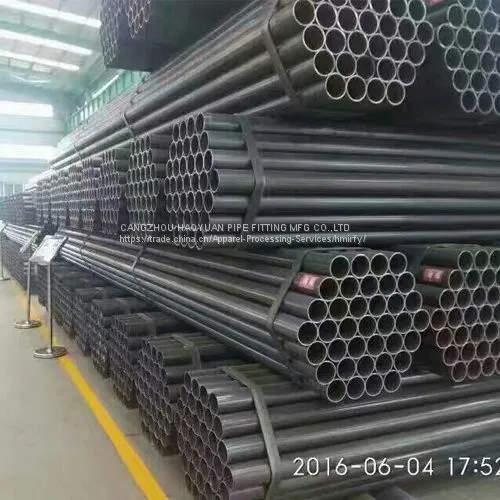

Erw Steel Pipe workshop
Production Process
