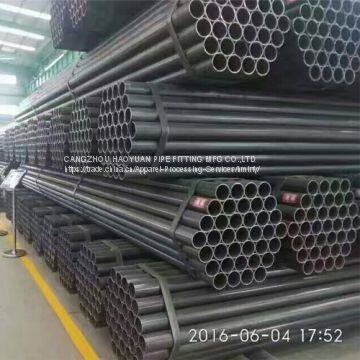

Schedule 40 Erw Steel Pipe photo-3

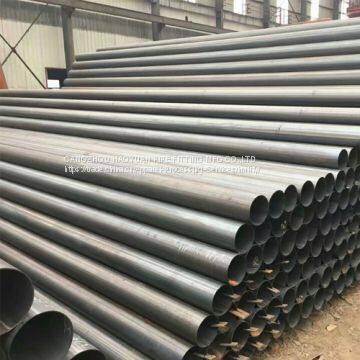

Schedule 40 Erw Steel Pipe photo-4

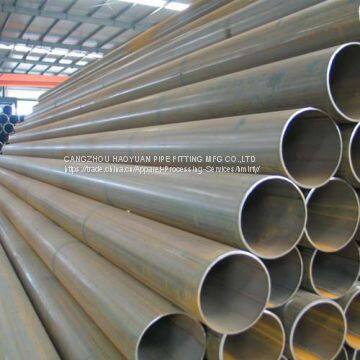

Schedule 40 Erw Steel Pipe photo-5
Schedule 40 Erw Steel Pipe photo-6
Negotiable MOQ: 1 Bag (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2003
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Contact Supplier Request Quote Chat Now
Cangzhou Haoyuan Pipe Fitting Mfg Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Schedule 40 Erw Steel Pipe, welding pipe with ordinary welding technology is not the same, the weld is made of the base material of the steel body melting, mechanical strength better than the general pipe. Smooth appearance, high precision, low cost welding seam height, favorable 3PE anti-corrosion coating. High-frequency welded steel pipe and submerged arc welded pipe welding methods are significantly different. As the welding is completed at high speed instantly, to ensure the quality of welding is much more difficult than submerged arc welding.

Erw Steel Pipe  wall thickness classification table



Inch

inch   sizc

OD

Wall Thickness Standard

SCH   5s

SCH  10S

SCH  10

SCH   20

SCH   30

SCH    40

SCH   60

SCH    80

SCH    100

SCH    120

SCH    140

SCH    160

STD

XS

XXS

1/8

DN6

10.3

-

1.24

-

-

-

1.73

-

2.42

-

-

-

-

1.73

2.41

-

1/4

DN8

13.7

-

1.65

-

-

-

2.24

-

3.02

-

-

-

-

2.24

3.02

-

3/8

DN10

17.1

-

1.65

-

-

-

2.31

-

3.2

-

-

-

-

2.31

3.20

-

1/2

DN15

21.3

1.65

2.11

-

-

-

2.77

-

3.73

-

-

-

4.78

2.77

3.73

7.47

3/4

DN20

26.7

1.65

2.11

-

-

-

2.87

-

3.91

-

-

-

5.56

2.87

3.91

7.82

1

DN25

33.4

1.65

2.77

-

-

-

3.38

-

4.55

-

-

-

6.35

3.38

4.55

9.09

1-1/4

DN32

42.2

1.65

2.77

-

-

-

3.56

-

4.85

-

-

-

6.35

3.58

4.85

9.70

1-1/2

DN40

48.3

1.65

2.77

-

-

-

3.68

-

5.05

-

-

-

7.14

3.68

5.08

10.15

2

DN50

60.3

1.65

2.77

-

-

-

3.91

-

5.54

-

-

-

8.74

3.91

5.54

11.07

2-1/2

DN65

73.0

2.11

3.05

-

-

-

5.16

-

7.01

-

-

-

9.53

5.16

7.01

14.02

3

DN80

88.9

2.11

3.05

-

-

-

5.49

-

7.62

-

-

-

11.13

5.49

7.52

15.24

3-1/2

DN90

101.6

2.11

3.05

-

-

-

5.74

-

8.08

-

-

-

-

5.74

8.08

-

4

DN100

114.3

2.11

3.05

-

-

-

6.02

-

8.58

-

11.13

-

13.49

6.02

8.56

17.12

5

DN125

141.3

2.77

3.4

-

-

-

6.55

-

9.53

-

12.70

-

15.88

6.55

9.53

18.05

6

DN150

168.3

2.77

3.4

-

-

-

7.11

-

10.97

-

14.27

-

18.26

7.11

10.97

21.95

8

DN200

219.1

2.77

3.76

-

6.35

7.04

8.18

10.31

12.70

15.09

18.26

20.62

23.01

8.18

12.70

22.23

10

DN250

273.1

3.40

4.19

-

6.35

7.8

9.27

12.70

15.09

18.26

21.44

25.4

28.58

9.27

12.70

25.40

12

DN300

323.9

3.96

4.57

-

6.35

8.38

10.31

14.27

17.48

21.44

25.4

28.58

33.32

9.35

12.70

25.40

14

DN350

355.6

3.96

4.78

6.35

7.92

9.53

11.13

15.09

19.05

23.83

27.79

31.75

35.71

9.53

12.70

-

16

DN400

406.4

4.19

4.78

6.35

7.92

9.53

12.70

16.66

21.44

26.19

30.96

36.53

40.49

9.53

12.70

-

18

DN450

457

4.19

4.78

6.35

7.92

11.13

14.27

19.05

23.83

29.36

34.93

39.67

45.24

9.53

12.70

-

20

DN500

508

4.78

5.54

6.35

9.53

12.70

15.09

20.62

26.19

32.54

38.1

44.45

50.01

9.53

12.70

-

22

DN550

559

4.78

5.54

6.35

9.53

12.70

-

22.23

28.58

34.93

41.28

47.63

53.98

9.53

12.70

-

24

DN600

610

5.54

6.35

6.35

9.53

14.27

17.48

24.61

30.96

38.89

46.02

52.37

59.54

9.53

12.70

-

26

DN650

660

-

-

7.92

12.7

-

-

-

-

-

-

-

-

9.53

12.70

-

28

DN700

711

-

-

7.92

12.7

15.88

-

-

-

-

-

-

-

9.53

12.70

-

30

DN750

762

6.35

7.92

7.92

12.7

15.88

-

-

-

-

-

-

-

9.53

12.70

-

32

DN800

813

-

-

7.92

12.7

15.88

17.48

-

-

-

-

-

-

9.53

12.70

-

34

DN850

864

-

-

7.92

12.7

15.88

17.48

-

-

-

-

-

-

9.53

12.70

-

36

DN900

914

-

-

7.92

12.7

15.88

19.05

-

-

-

-

-

-

9.53

12.70

-

38

DN950

965

-

-

-

-

-

-

-

-

-

-

-

-

9.53

12.70

-

40

DN1000

1015

-

-

-

-

-

-

-

-

-

-

-

-

9.53

12.70

-

42

DN1050

1067

-

-

-

-

-

-

-

-

-

-

-

-

9.53

12.70

-

44

DN1100

1118

-

-

-

-

-

-

-

-

-

-

-

-

9.53

12.70

-

46

DN1150

1188

-

-

-

-

-

-

-

-

-

-

-

-

9.53

12.70

-

48

DN1200

1219

-

-

-

-

-

-

-

-

-

-

-

-

9.53

12.70

-

High-quality products

Erw Steel Pipe

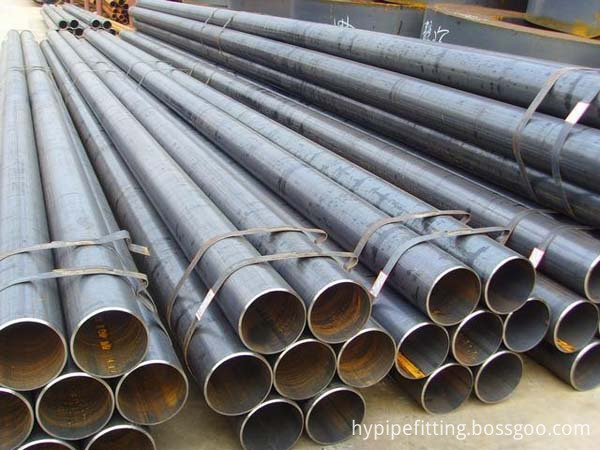

erw pipe seam



18 steel pipe



Our packaging

pipe manufacturers



6 inch steel tubing


Erw  Steel Pipe Production Process

 ERW steel pipe production process

High-frequency welded pipe is characterized by: welding speed, welding heat affected zone is small, welding on the workpiece can not clean, can be welded thin-walled tube, weldable metal tube.High-frequency welded pipe typical process: slitting - open-book - strip leveling - head and tail shear - strip butt welding - looper storage material - forming - welding - clear burr - sizing - testing - flying cut - Straightening - pipe processing - hydrostatic testing - flaw detection - printing and coating - finished products.
