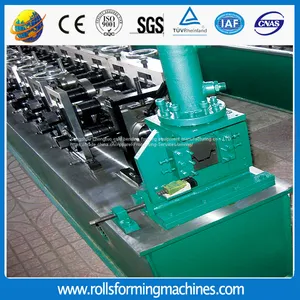

Help CenterFurring Keel Roll Forming Machine for Ceiling
Related Products
-
C Bracing Light Keel Roll Forming MachineNegotiableMOQ: 1 Bag -
Suspended Ceiling Framing T Grid/T Bar Row Machine/T Bar Suspended Ceiling GridNegotiableMOQ: 1 Bag
-
Ceiling Panel Rolling MachineNegotiableMOQ: 1 Bag
-
Ceiling Panel Making Machine of Different ShapeNegotiableMOQ: 1 Bag
-
Ceiling Pannel Making Machine of Various ShapeNegotiableMOQ: 1 Bag
Introduction of Keel furring Channel Roll Forming Machine
The machine also named Ceiling furring Making Mill. Cangzhou Zhongtuo is professional with high speed and good quality. It is with high quality raw material, modern design and well equipped. Various ceiling Keel roll forming machine can be customized.
Main elements of keel furring channel making Mill
1.Decoiler 1 set
2.main roll forming machine 1 set
3.punching maching(as customer's need) 1 set
4.Cutting machine (normal cutting and flying track cutting saw)(as customer`s need choose one set)
5.PLC control 1 set
6. furring channel making Mill Counter 1 set
7.hydraulic station 1 set
8. furring channel making Mill receiving table 1 set
Parameters of keel Furring channel roll forming machine
1. Decoiler Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
Loading capacity: 1.5T
Uncoiling width: 300mm
Inner diameter: 450-550mm
2.Ceiling furring channel Mill Feeding and leveling
This part will level coil to make sure it is neat clean and straight. Meanwhile the roller will punch dots at both side of the C channel.
3.main Roll forming machine
Size: 3800х800х1400
Weight t: 2.6 tons
Voltage:380V/50HZ3Phase(as customer`s request)
Roller fixer : Guide column
Ceiling furring channel Mill Frame : middle plate welded
Memorial arch frame type
Frame thickness:25mm
Drive mode: gear
Material of rollers: GCr12MoV
Material of shafts: 45# steel with tempering
Diameter of shafts: φ40mm
Ceiling furring channel Mill Number of rollers : 10rollers
Main power: 4kw ( Cycloidal planetary gear speed reducer)

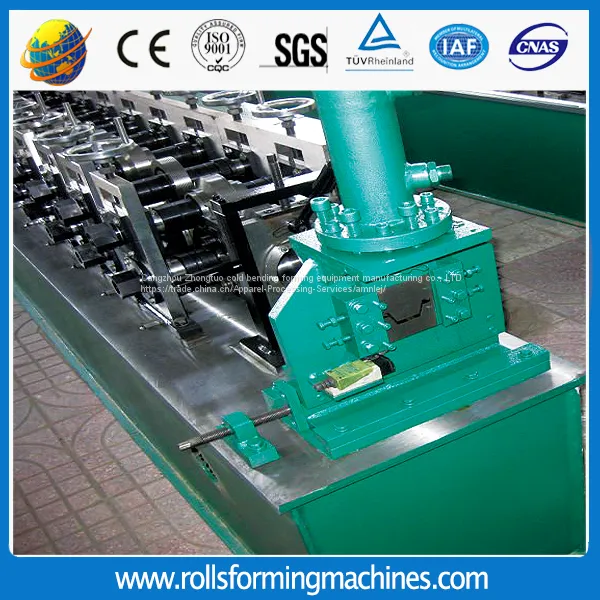

4. Shearing machine Together with punching words, cutting will be done together.
Material of blades: Gcr12 quenched
Power supply : hydraulic power
Frame : Pillar style with rack & pinion system
Stroke switch : non-contact
photoelectric switch
5. Hydraulic Station
3 sets
Hydraulic motor Power: 3kw
Hydraulic oil: 46#
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And three sets of electromagnetism valves.
6. Ceiling furring channel Mill Electric Control System
Feature:
Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed
with stability, precision and lifetime.
Other electric element are Delta
Equipped with movable switch, air break, radiator, trans
some other keel ceiling profile for your reference
