Villa Glazed Roof Tile Roll Forming Machine| Step Roof Glazed Tile Roll Forming Machine

Glazed tile roll forming machine

Product Description

Villa Glazed Roof Tile are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers' requests.

Production Process of villa glazed roof tile roll forming machine:

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting→Products receiving

Details of villa glazed roof tile roll forming machine:

Material Type: GI/PPGI/AL

Material Width: 1000/1200/1220/1250mm Customized

Material Thickness: 0.40-0.70mm

Sheet Length: Any length

Length Tolerance: ±2mm/6m

Working Speed: 25 m/min (10 piece per min as 8 feet per piece) Standard machine

Control System : Mitsubishi/Siemens PLC& transducer Customized

Total Power: About 12KW

Total Weight: About 10.5T Up to final design

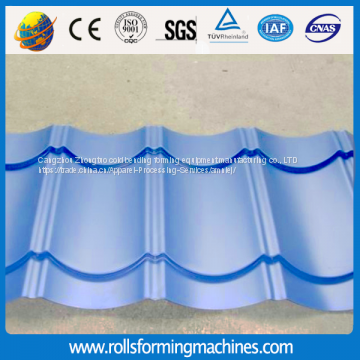

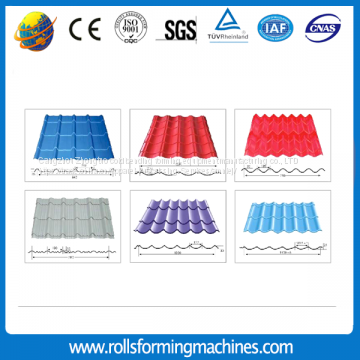

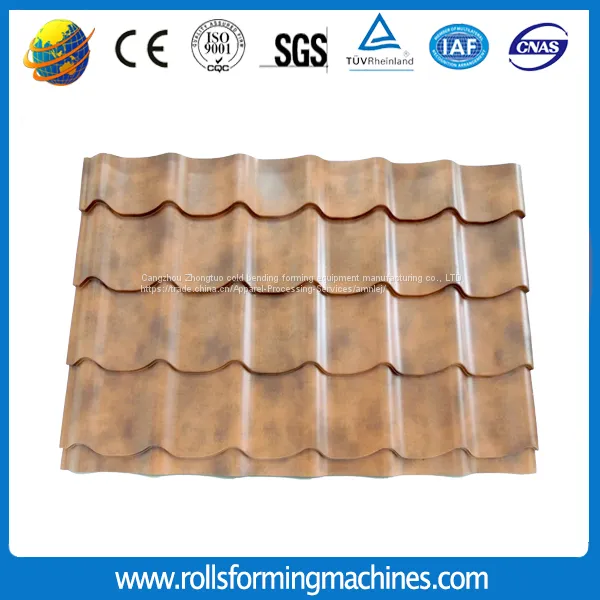

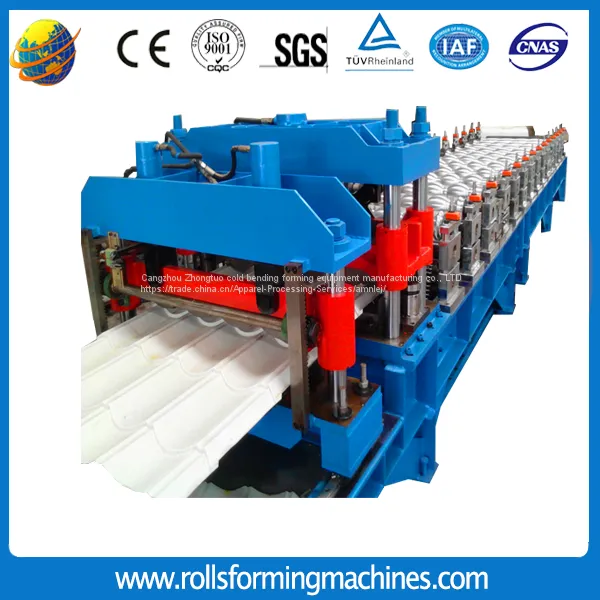

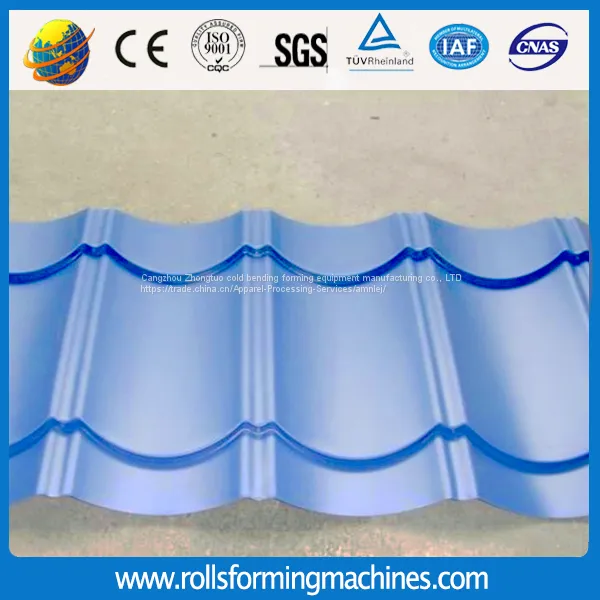

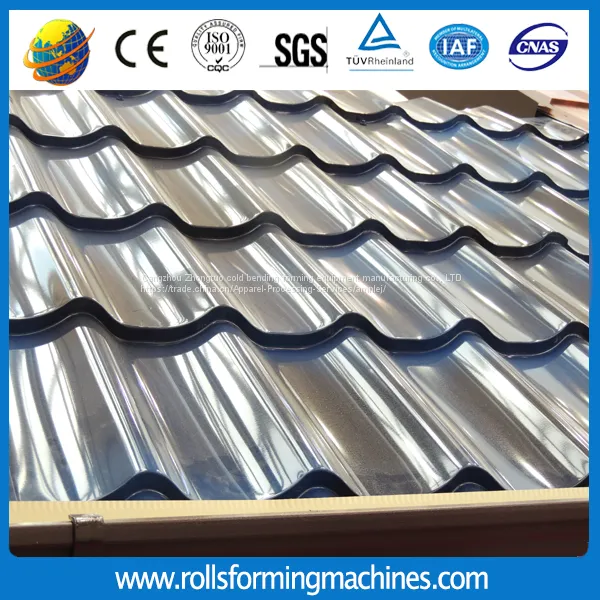

More photos of villa glazed roof tile roll forming machine:
