Brief Introduction

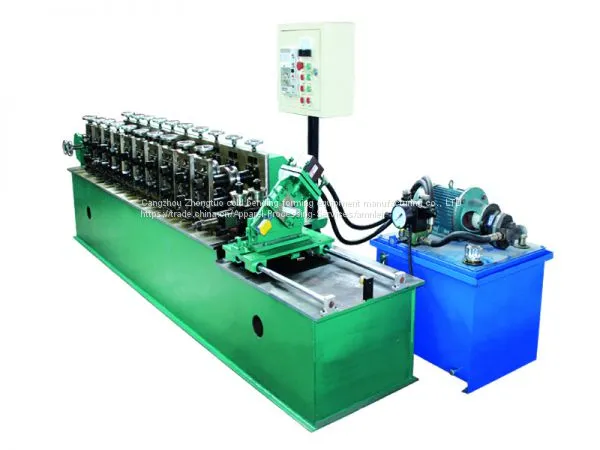

Ceiling panel making machine also named Suspended Ceiling Framing Mill . Ceiling making machine of Cangzhou Zhongtuo is professional with high speed and good quality. It is with high quality raw material, modern design and well equipped. Various Keel machine can be customized.
According to the drawing profile, there are V shape, C channel , T shape, L shape, U channel and so on of ceiling panel making mill.
Main elements of Ceiling making machine
1.Decoiler 1 set
2.main roll forming machine 1 set
3.punching maching(as customer's need) 1 set
4.Cutting machine (normal cutting and flying track cutting saw)(as customer`s need choose one set)
5.PLC control 1 set
6.Counter 1 set
7.hydraulic station 1 set
8.receiving table 1 set
Some main parameters of ceiling panel making mill
1.Working efficiency:20m/min
2. ceiling panel making mill Processing material: GI
3.Material hardness: 550MPA-350MPA
4.Thickness of material: 0.2-0.55mm
5.Width of material: 35mm-65mm
6.Un-coiler system: 1.5 Ton decoiler (manual decoiler, electric decoiler , hydraulic decoiler)
7.Number of rollers: 10 rollers
8. Ceiling Pannel Making Mill Roller fixer: guide column
9.Roller material: Gcr12 MoV quenched
10.Material of shaft: 45# steel
11.Diameter of shaft: 40mm
12.Ceiling Pannel Making Machine Main power: 3KW
13.Hydraulic power: 3KW
14.Hydraulic pressure: 20Mpa
15.Blade material:Gcr12 MoV quenched
16.Voltage: 380V, 50HZ, 3phase (adjustable by customer)
17.Frame: 25mm
18.Drive : gear, chain or case of different speeds(as customer`s demand)
19.Punching mould: each type one set
20.Punching machine: Gcr12 MoV quenched
21.Control system: Delta of Taiwan.
22.Machine color: yellow or blue
23. ceiling panel making mill Lenth: 3000*800*1400mm
some other Ceiling panel profile drawing for your reference
