Glazed bamboo type metal tile manufacturing equipment

Name: Glazed bamboo type metal tile manufacturing equipment
Price: Negotiable

FOB Price

Negotiable / Bag

1 Bag(Min.Order)

Product Description

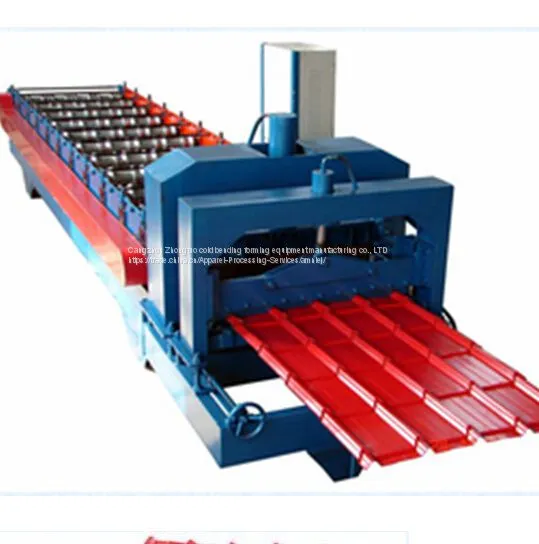

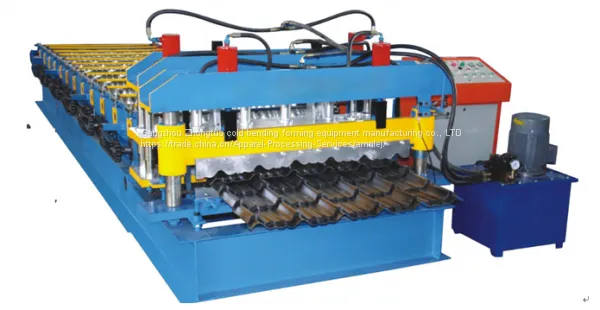

Glazed bamboo type metal tile manufacturing equipment

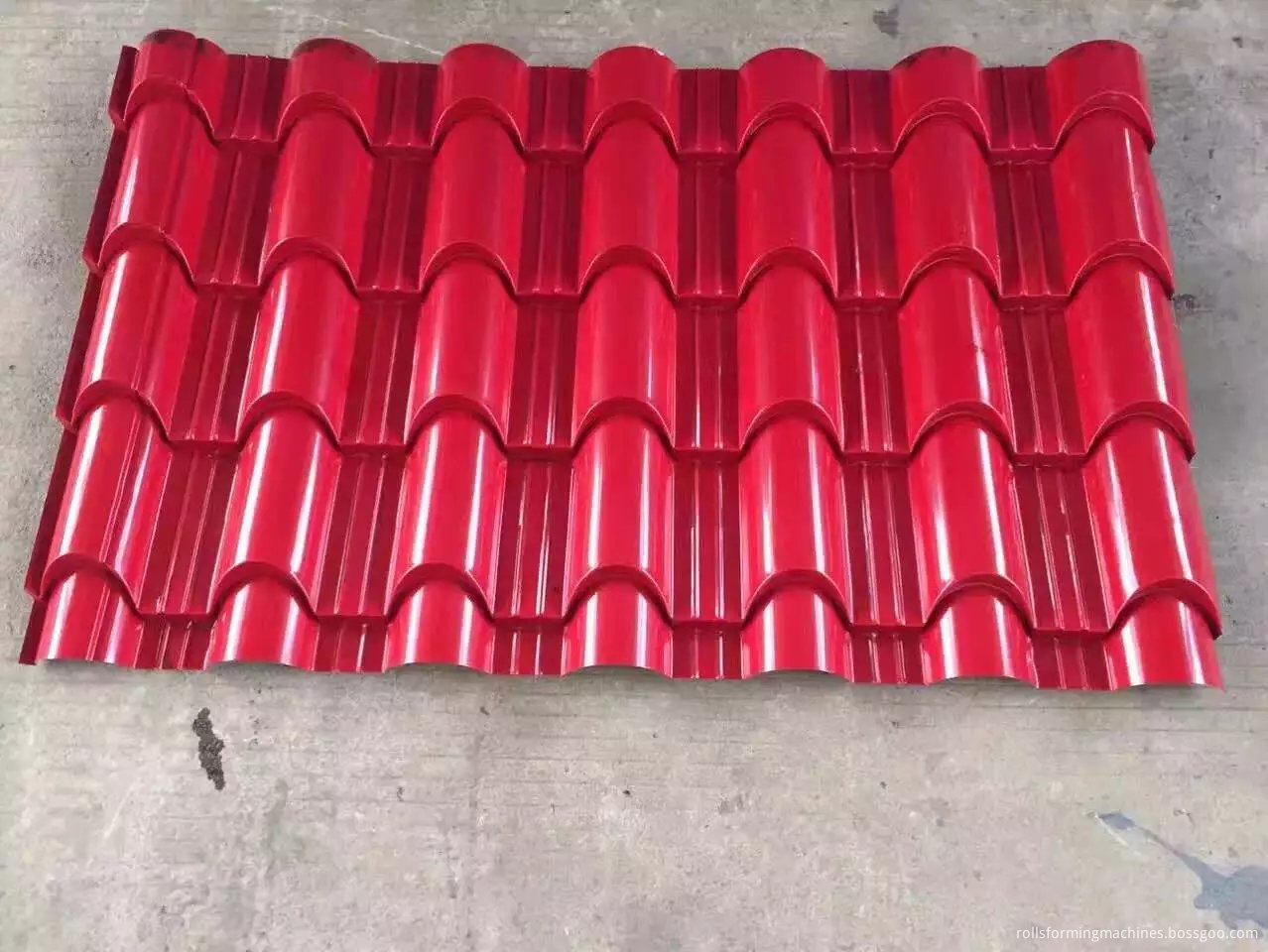

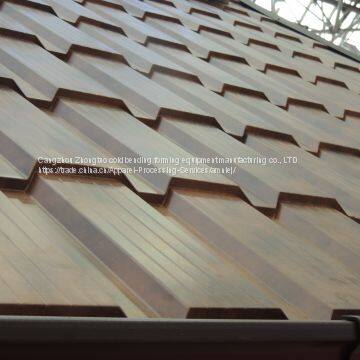

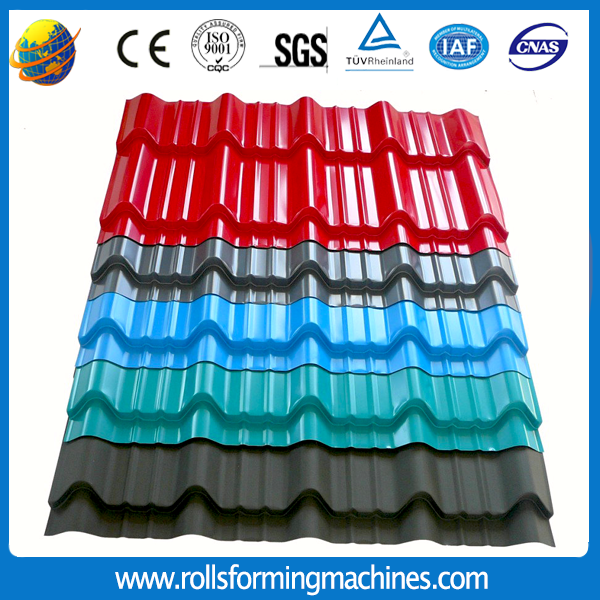

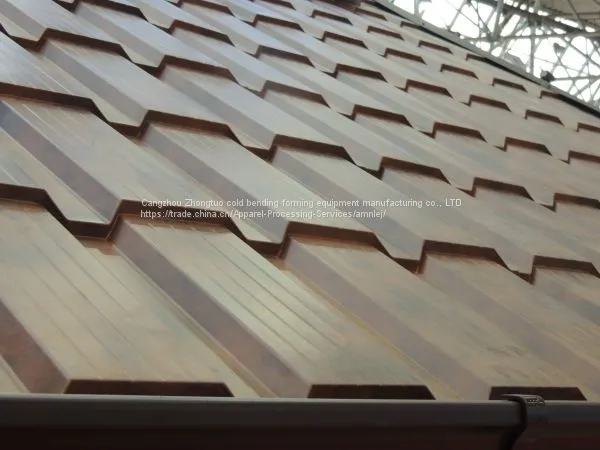

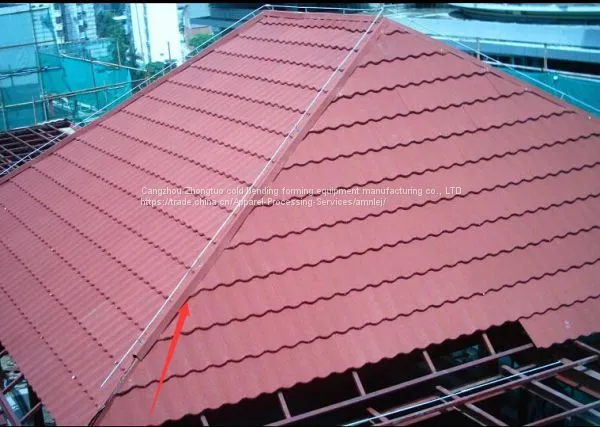

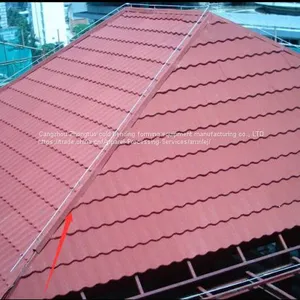

Glazed roof tile roll former is a kind of construction tile forming machine widely used by all kind of production factory made roof and wall tile for

factories, residential, hotels, villas and other industrial and civil construction

Glazed Roof Tile Roll Former Construction Tile Forming Machine Production process

Uncoiling→Feeding material into machine→Roll forming→Measuring length→Step formed→ Auto cutting

→Products receiving

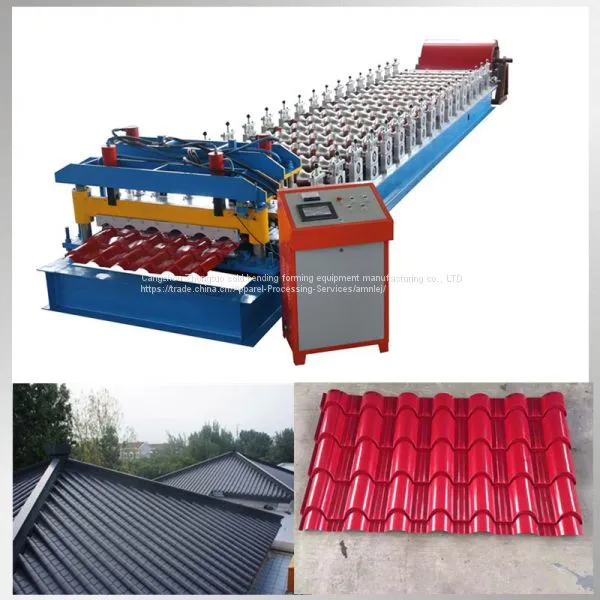

Components of production line

No.	Glazed Roof Tile Roll Former Construction Tile Forming Machine	Unit	Qty
1	Manual decoiler	set	1

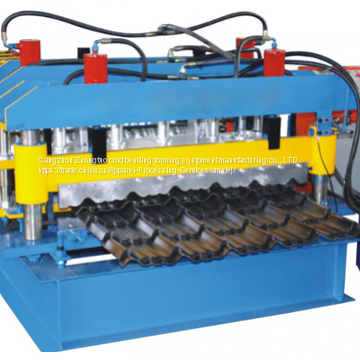

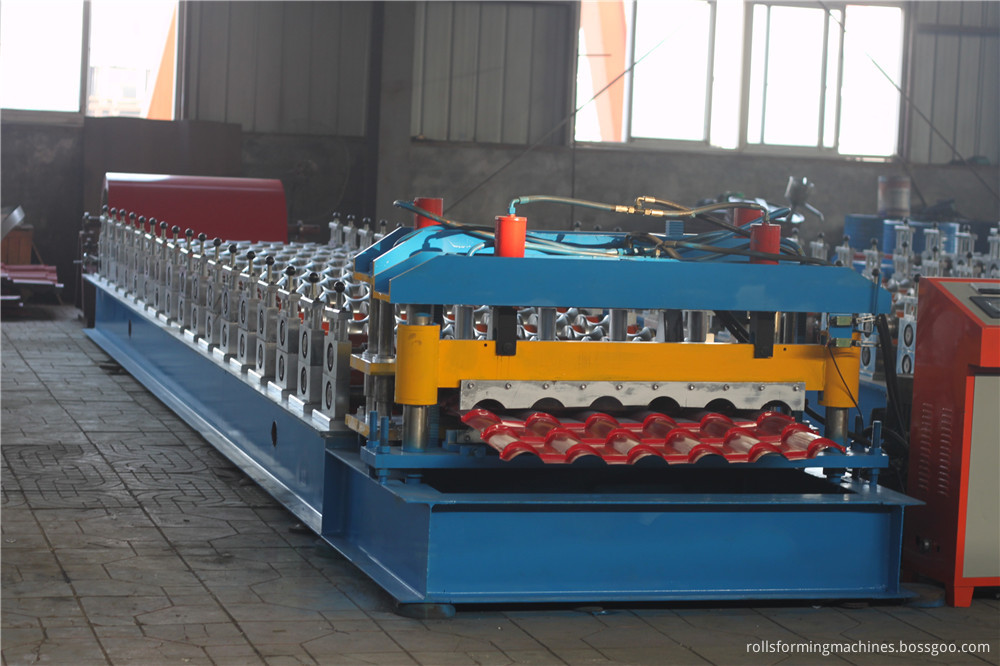

2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Step-formed mechanism	set	1
6	Post cut	set	1
7	Electric motor	set	1
8	Output table	set	1

Production parameters

Processing material: colored steel plate, galvanized plate, or aluminum plate

Material thickness:0.3- 0.8 mm

Material hardness:195 mpa---350 mpa

Material width:1250 mm Wave length:194 mm

Formed width: 970 mm Step height: 30 mm

Step length:150 mm---380 mm(adjustable) Forming speed:4 m/min
