Glazed Tile Metal Coil Roll Forming


Machine

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting→Products receiving

Control System: PLC with touch screen

Way Of Drive: 1.2 inch single chain

Roll material: 45# high grade steel

Shaft material: 45# high grade steel

Frame material: 300 H-high grade steel

Cutting blade material: Cr 12 high grade steel

Cutting type: hydraulic cutting

Lanugage system: Chinese ,English ,

Size of container: GP

Feature: high speed, low energy consumption

Packing

shipping

Parameters


Material Type:GI/PPGI/AL

Material Width:1000/1200/1220/1250mm(customized)

Material Thickness:0.40-0.70mm

Length:Any length

Length Tolerance:±2mm/6m

Working Speed:25 m/min (10 piece per min as 8 feet per piece)

Control System:Mitsubishi/Siemens PLC& transducer

Total Power:About 12KW

Total Weight:About 10.5T




Components of production line:


Manual decoiler:1 set

Punching part:1 set

Main forming machine:1 set

PLC control sysem:1 set

Hydraulic pump station:1 set

Post cut:1 set

Electric motor:1 set

Output table:1 set

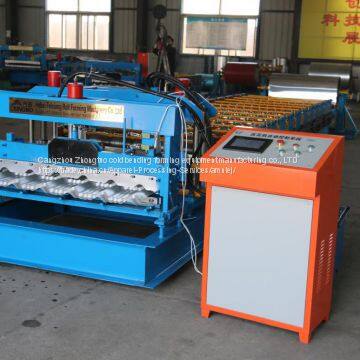

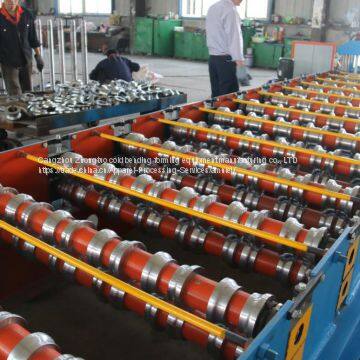

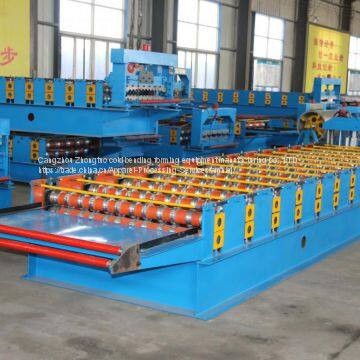

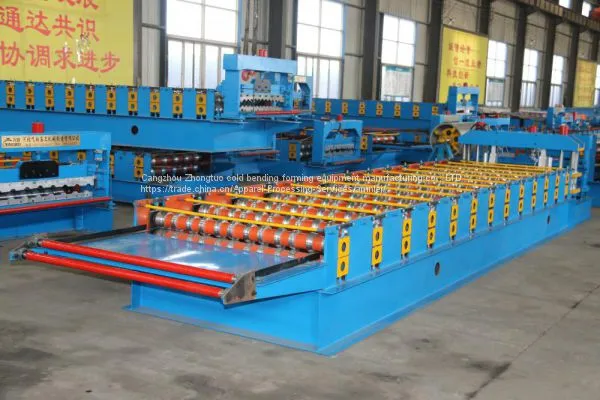

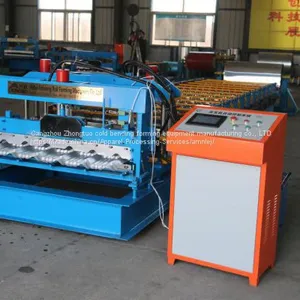

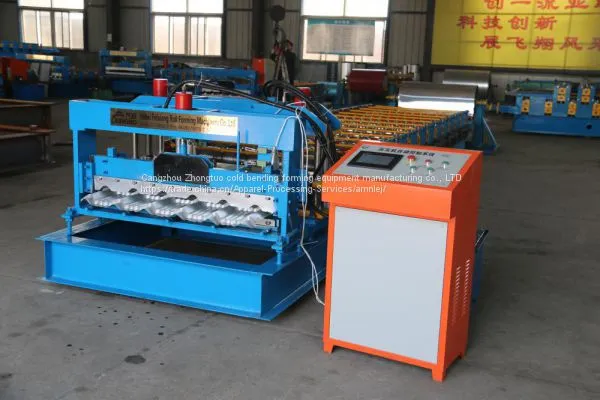

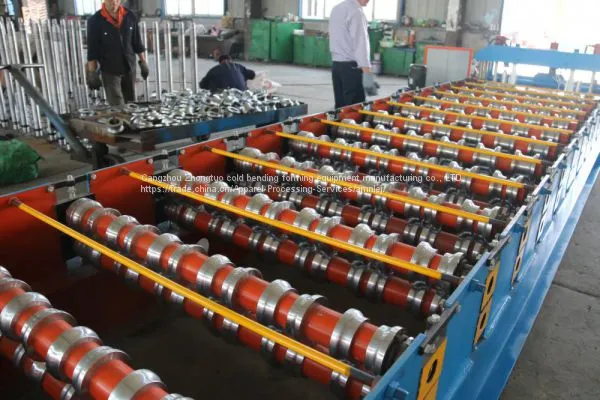

Details of glazed tile roll forming machine

FAQ:

1. Do you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

2. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

3. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

4. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

5. You are trade company or factory?

We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.

6. Why your price is higher than others?

As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.

7. How long the machine could be made?

Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
