steel CZ purlin roll forming line
New Model CZ profile chaneable Steel 80-300mm C Z Purlin Roll Forming Machine Decoiler System:
Usage: Passive uncoil pulled by roll forming system, support the steel coil and uncoil it in a turntable way.
| No : | Decoiler System Main Parameter : | |
| 1 | Loading capacity | 1-3T |
| 2 | Uncoiling width | 300-600mm |
| 3 | Inner diameter | 450-550mm |

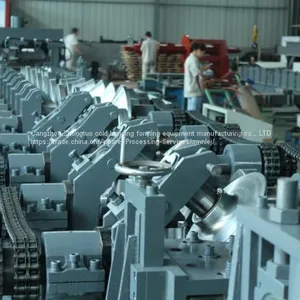

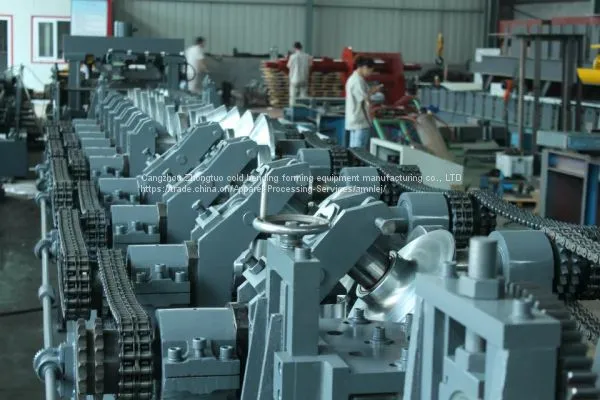

New Model CZ profile chaneable Steel 80-300mm C Z Purlin Roll Forming Machine Roll Forming System:
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, gear transmission, roller surfaces polishing, hard plating , heat treatment and galvanizational treatment.
| No : | Roll Forming System Main Parameter : | |
| 1 | Length of the main part | about 3000*1000*400-8800*1800*1500 |
| 2 | Weight of main part | 3-6tons |
| 3 | Voltage | 380V/50HZ3Phase (as customer`s request) |
| 4 | Roller fixer | guide column |
| 5 | Frame | steel plate welded/ Memorial arch frame type |
| 6 | Frame thickness | 15-30mm |
| 7 | Drive mode | Chain |
| 8 | Material of rollers | GCr12MoV |
| 9 | Material of shafts | 45# steel with tempering |
| 10 | Diameter of shafts | φ40-60mm |
| 11 | Number of rollers | 10-15 rollers |
| 12 | Main power | 3-11kw |

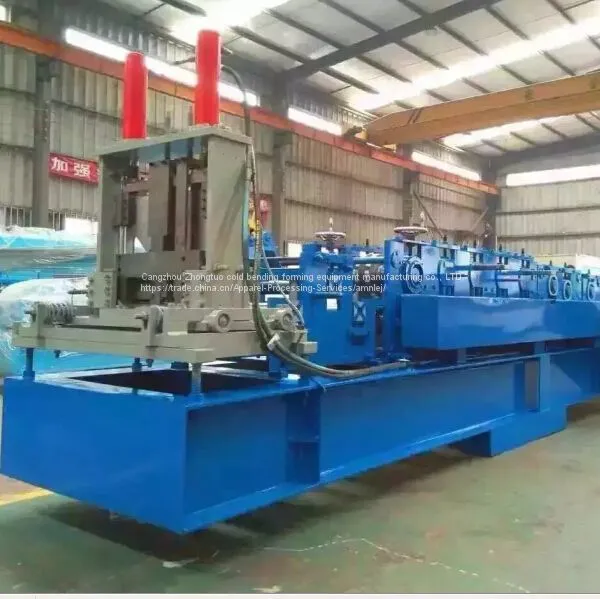

New Model CZ profile chaneable Steel 80-300mm C Z Purlin Roll Forming Machine Automatic Cutting System:
Feature: Automatic cutting controlled by PLC. Ensure stability, precision and cutting speed. It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.It contains one set of cutting tools, one hydraulic tank and one cutter machine.
| No : | Cutting System Main Parameter : | |
| 1 | Material of blades | Gcr12MoV quenched |
| 2 | Power supply | hydraulic power |
| 3 | Frame | Pillar style with rack & pinion system |
| 4 | Stroke switch | non-contact photoelectric switch |
| 5 | Hydraulic motor Power | 3-6kw |
| 6 | Hydraulic oil: | 46# |
New Model CZ profile chaneable Steel 80-300mm C Z Purlin Roll Forming Machine Electric Control System:
1. Adopted PLC , transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.
2. Equipped with movable switch , air break, radiator, transformer & electric leakage protector for operation convenience and safety.
