1.Item Feature
Be suitable to lead-acid battery only
12/24V, 36V, 48V and 72V all-purpose
Hour meter + battery indicator
2.Item Parameter
Item function |
Battery Indicator with Hour Meter |
Capacity |
1 red 2 yellow 7 green |
Resolution |
10% per led segment / 0.1 hour |
Operating current |
20 MA nomina |
Operating Volt |
12/24V 36V 48V 72V |
Operating Temprature |
-40°-85° |
Accuracy |
Around 0.5% |
Polarity |
Positive / negative |
Memoery capacity |
CMOS EEPROM |
Display Reading |
99,999 hours |
3.Item Function Description
1. 100% quality and Brand new.
2. Works for Lead-acid battery, used for truck, RV'S, Golf cart or any battery operated unit.

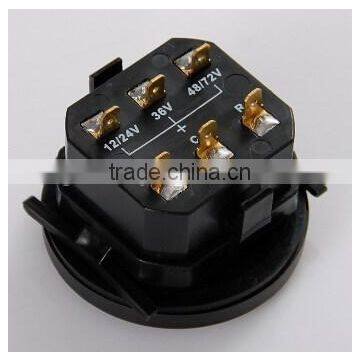

3. Temp range: -40F ~ 185F. Connection: Pin+: Battery+, Pin-: Battery-. C-signal output for external use.

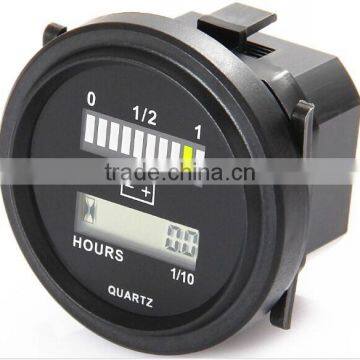

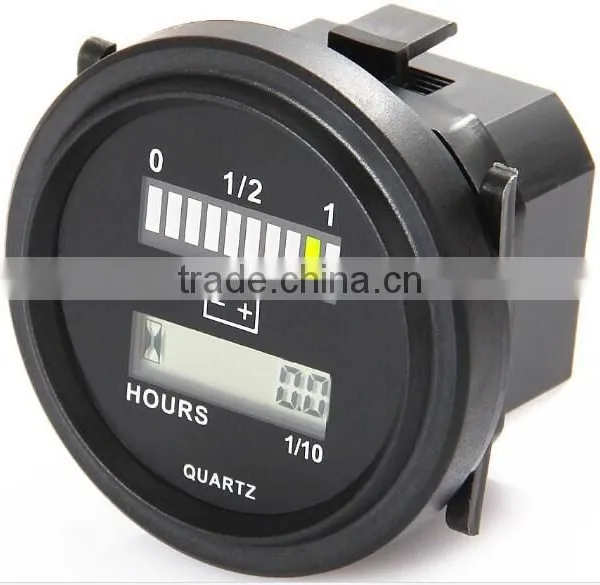

4. Operation:Only when the battery is properly charged then the 10th LED (far right) will be lighted. As battery state of charge decreases, successive LED lights up
When 2nd (from left) LED flashes, indicating "energy reserve"
When both 1st and 2nd LED flash, indicating "empty", new battery is needed to replace old one
Battery indicator memorized the battery state is full when leaving factory.
When use with a new battery, it should be powered on for at least 2 minutes to indicate the real battery state
Range indication: Green: 41~100%, Yellow: 21~40%, Red: 20% less
