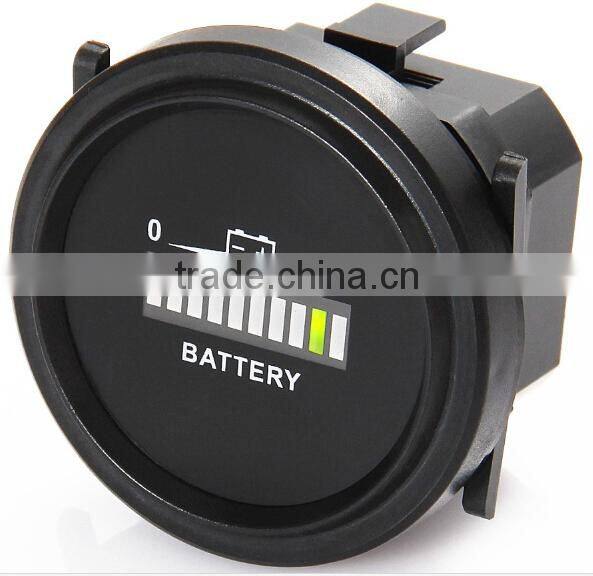

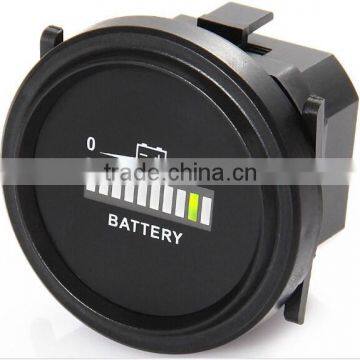

Help Center12v/24v,36v,and 72v Universal Battery Discharge Indicator for Golf Cart
Related Products
-
Golf Cart Universal Battery Indicator - 12/24V, 36V, 48V and 72V UniversalNegotiableMOQ: 1 Piece -
12V/24V, 36V, 48V, 72V Battery Indicator&hour MeterNegotiableMOQ: 1 Piece
-
LED Display Battery Status Indicator for Solar Panel,forklife,golf CarUS$ 12.9 - 19.35MOQ: 1 Piece
-
LED Display Battery Condition Indicator for Solar Panel,forklift,golf CarUS$ 12.9 - 19.35MOQ: 1 Piece
-
Led Battery Discharge Indicator for Golf CartUS$ 12.29 - 14.58MOQ: 1 Piece
Our battery indicator have 3 kinds of Round battery indicator,rectangular battery indicartor and hexagonal battery indicator
Pls note that -
Usually, our battery indicator is suitable for the lead-acid battery. If you need battery indicator for lithium battery, you need to specifically stated
Type | Lead Acid Battery |
Voltage | 12/24,36V,48V, 72V |
is_customized | Yes |
Display | 10-bar LED indicate |
Terminals | Max. 3; 3/16"-spades |
Mounting: | U-shape bracket |
Packing | White Box |
Operating Temperature | -40°C to +85°C |
Storage Temperature | -50°C to +90°C |
Humidity: Operating | 95% RH (Non Condensing) at 38°C |
Voltage | 12V&24V 24V 36V 48V 72V |
Item Feature
- 100% quality and Brand new.
- Works for 12V&24V,24V,36V,48V,72V battery, used for truck, RV'S, Golf cart or any battery operated unit.

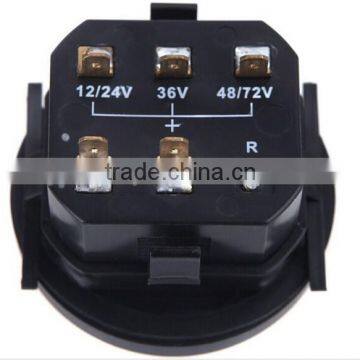

- Temp range: -40F ~ 185F. Connection: Pin+: Battery+, Pin-: Battery-. C-signal output for external use.
- Operation:Only when the battery is properly charged then the 10th LED (far right) will be lighted.
As battery state of charge decreases, successive LED lights up
- When 2nd (from left) LED flashes, indicating "energy reserve"
- When both 1st and 2nd LED flash, indicating "empty", new battery is needed to replace old one
- Battery indicator memorized the battery state is full when leaving factory.
- When use with a new battery, it should be powered on for at least 2 minutes to indicate the real battery state
- Range indication: Green: 41~100%, Yellow: 21~40%, Red: 20% less
Rectangualr battery indicator
Hexagonal battery indicator
